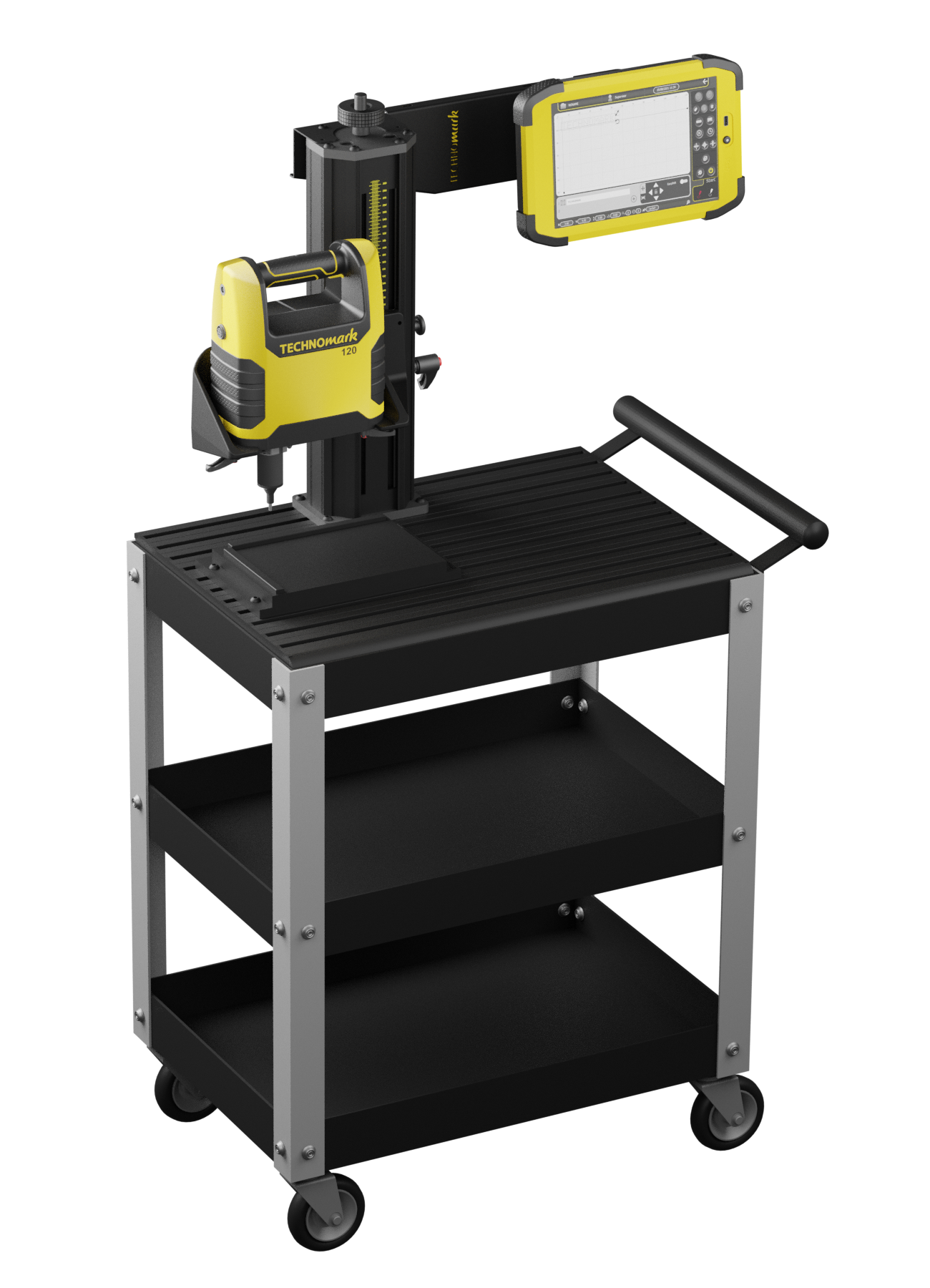

Dot Peen Marking Machine 13 Dot Peen Marking Machine Dot Peen Marking Machine Dot Peen Marking Machine Dot Peen Marking Machine Dot Peen Marking Machine Dot Peen Marking Machine Dot Peen Marking Machine 30 Dot Peen Marking Machine 26 Dot Peen Marking Machine 25 Dot Peen Marking Machine 19 Dot Peen Marking Machine 18 Dot Peen Marking Machine 17 Dot Peen Marking Machine 16 Dot Peen Marking Machine Dot Peen Marking Machine COMBO_vue 1 tête sans contrôleur RVB Dot Peen Marking Machine 12 Dot Peen Marking Machine 11 Connect.series Modèle - Dot Peen Marking Machine Support full avec machine RVB Dot Peen Marking Machine Portable Handheld model (4) Portable Handheld model (3) Combo model (2) Portable Handheld model Portable Handled Model Idi alu MP EASY 120 vue droite écran RVB 16bits sansfond Datamatrix light MP Datamatrix + numérique MP EASY supports RVB 2 sans fond

Dot Peen Marking Machine

Marking Solutions

By: Technomark

FranceFrance

Express Interest
Product Highlights

Dot Peen Marking Machines are used to create permanent, traceable marks such as serial numbers, logos or other designs on metals and hard plastics.The markings thus formed are deep, precise and durable. It is very helpful as these markings will allow the components to be tracked easily throughout the manufacturing process.At YES Machinery we supply...

Dot Peen Marking Machines are used to create permanent, traceable marks such as serial numbers, logos or other designs on metals and hard plastics.

The markings thus formed are deep, precise and durable. It is very helpful as these markings will allow the components to be tracked easily throughout the manufacturing process.

At YES Machinery we supply high quality dot peen punch marking machines manufactured by Technomark, renowned for their advanced industrial marking solutions. Their innovative 4-in-1 marking solution can be adapted to be used in stationary, portable or integrated configuration.

Our Technomark marking machines support multiple marking methods such as dot peen marking, engraving marking, stencil marking , pin marking and more.

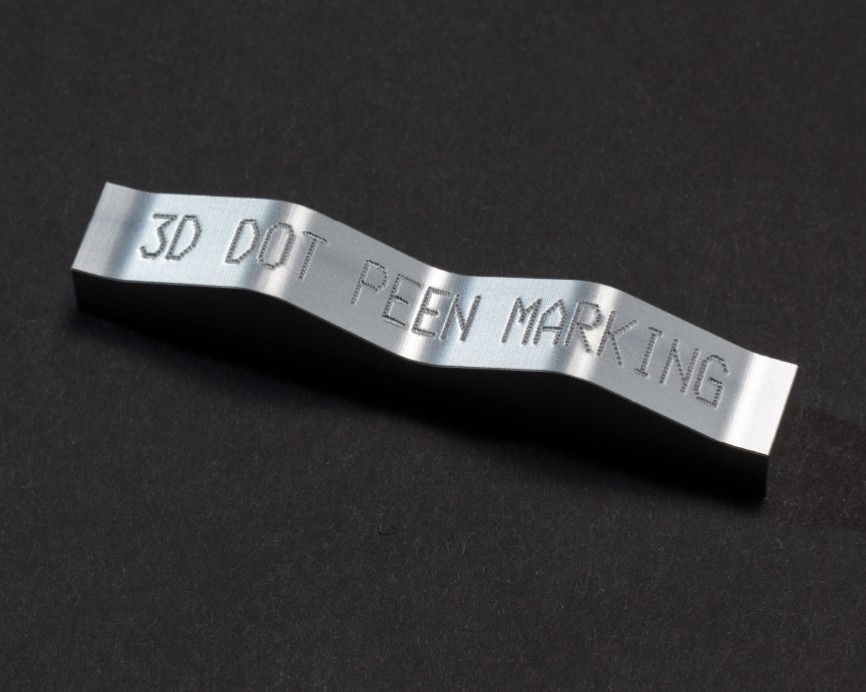

In addition to that, their smart marking solution includes intelligent driving impact. IDI mark and IDI Track is the intelligent driving impact developed by Technomark. It analyses the distance between the part and the stylus in order to ensure accurate marking quality.

ID marks ensure precise and consistent marking even on uneven surfaces. ID Tracking on the other hand monitors the machine and detects anomalies, stylus wear and other maintenance needs.

This unique function automatically detects component dimensional variations, adjusting the marking force to provide consistent high quality marking.

Types of Dot Peen Marking Machine

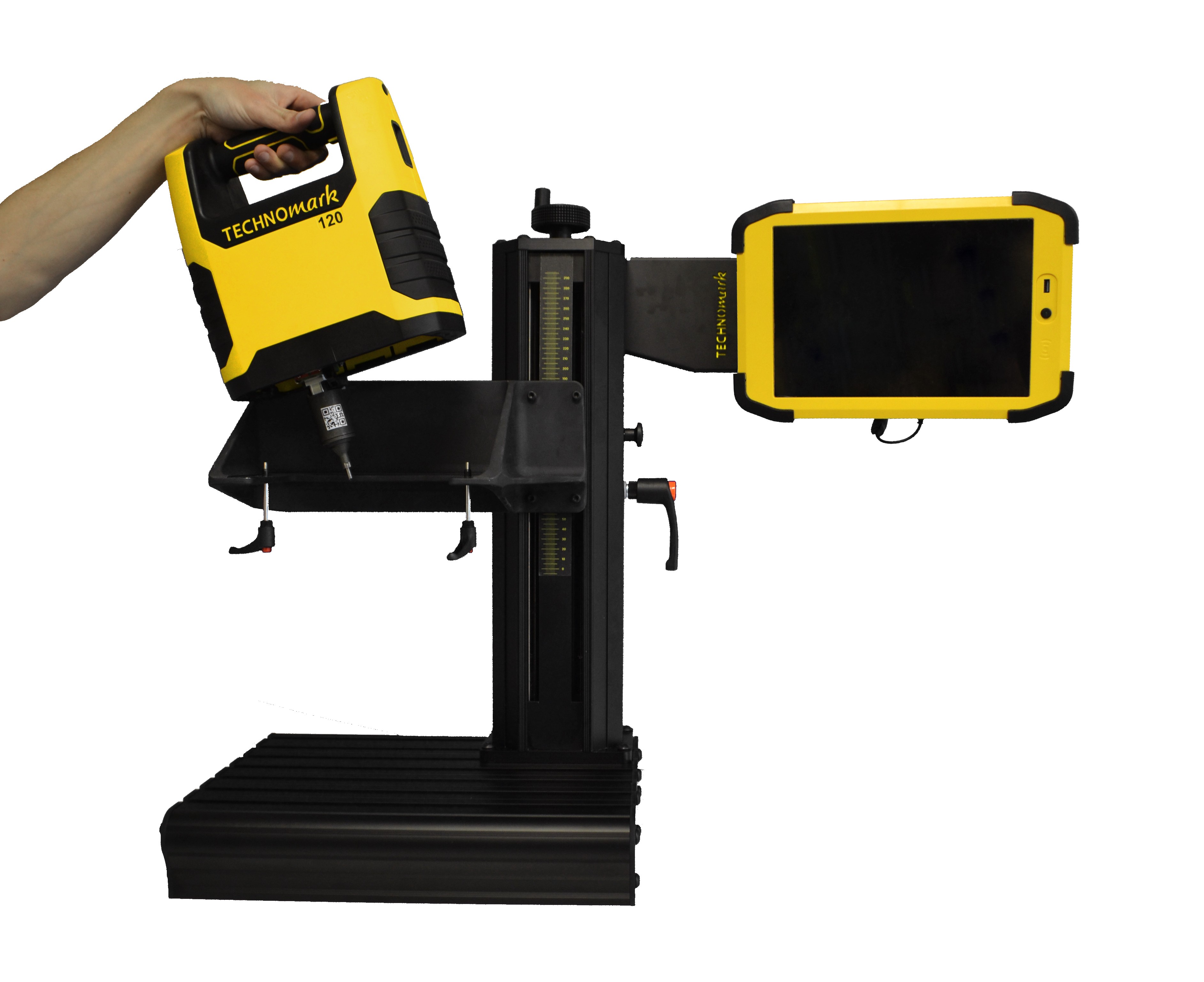

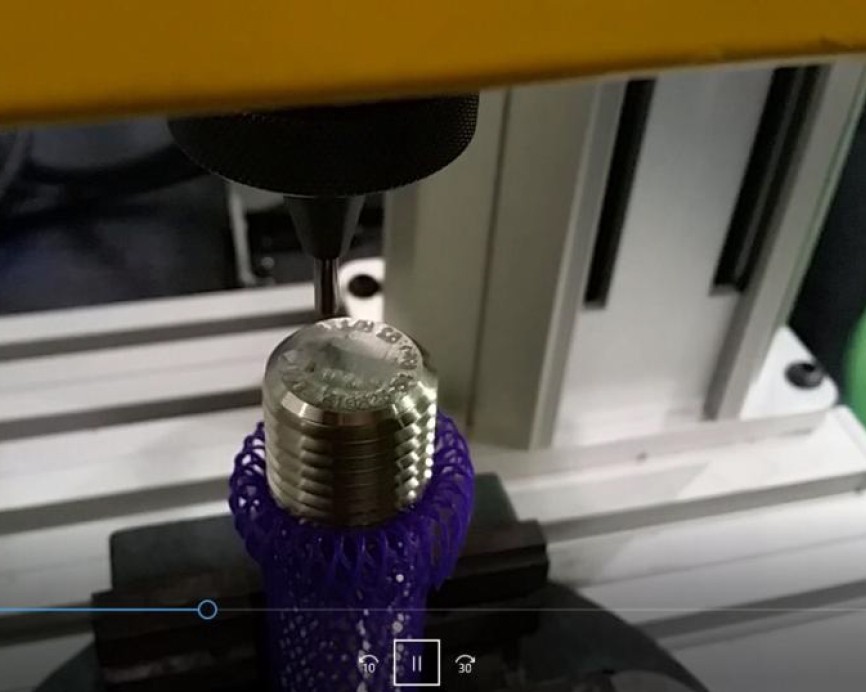

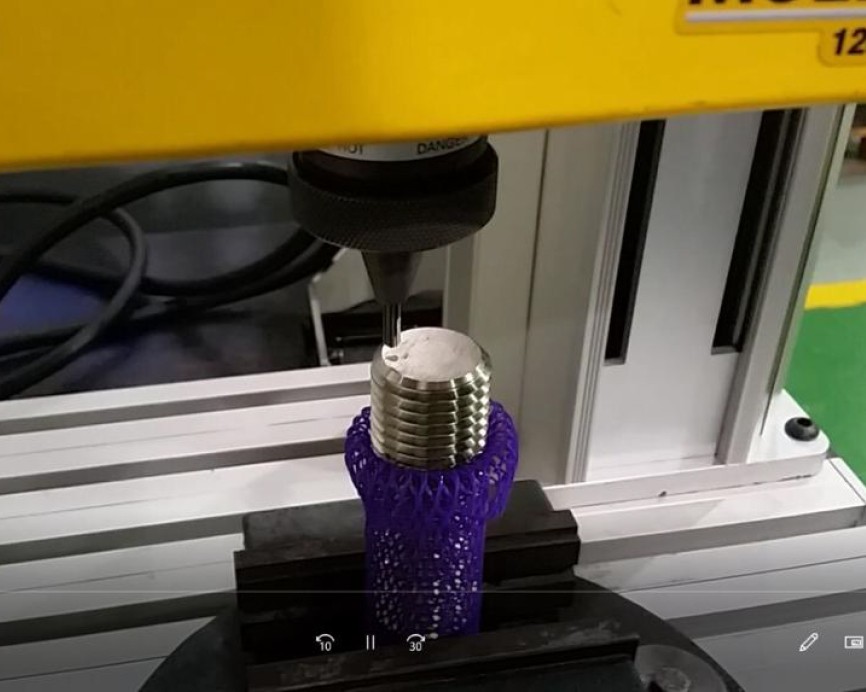

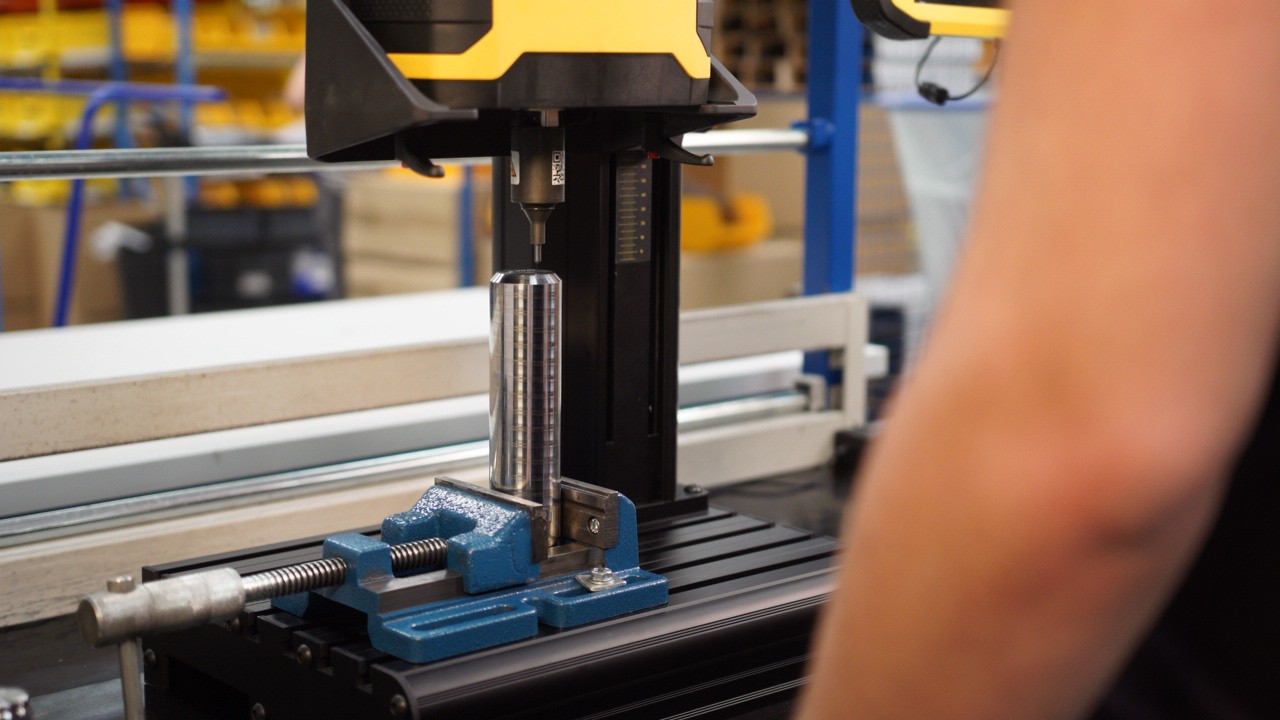

Bench Type: This machine is suitable for small to medium-sized parts.

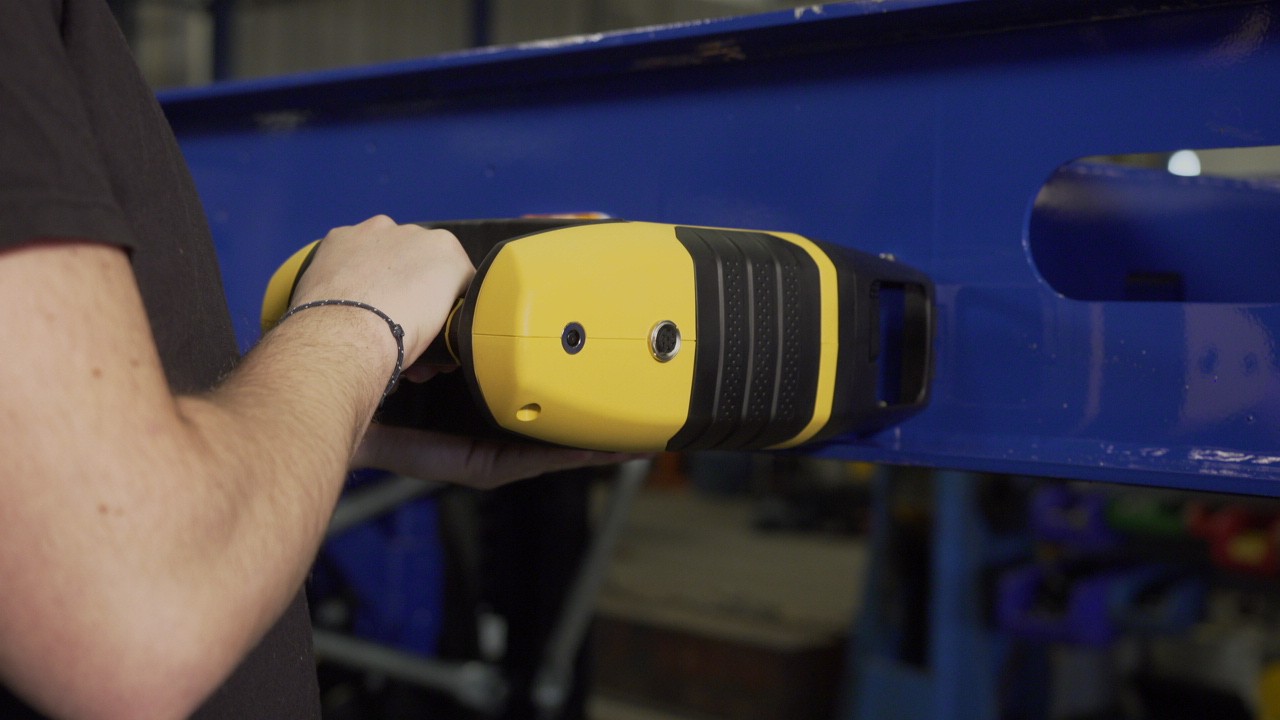

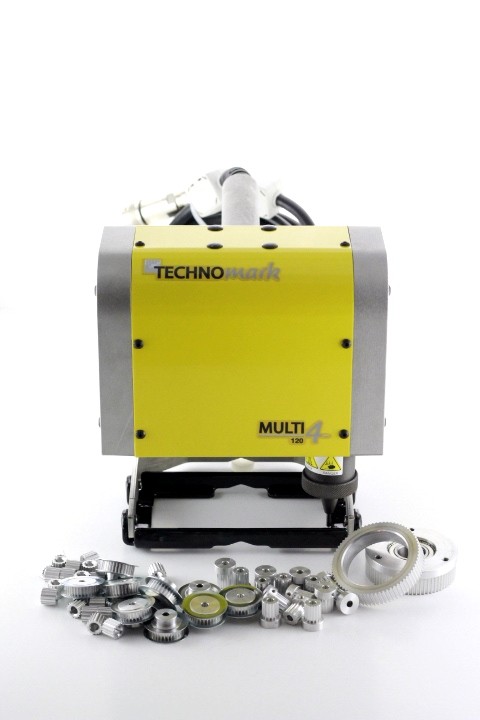

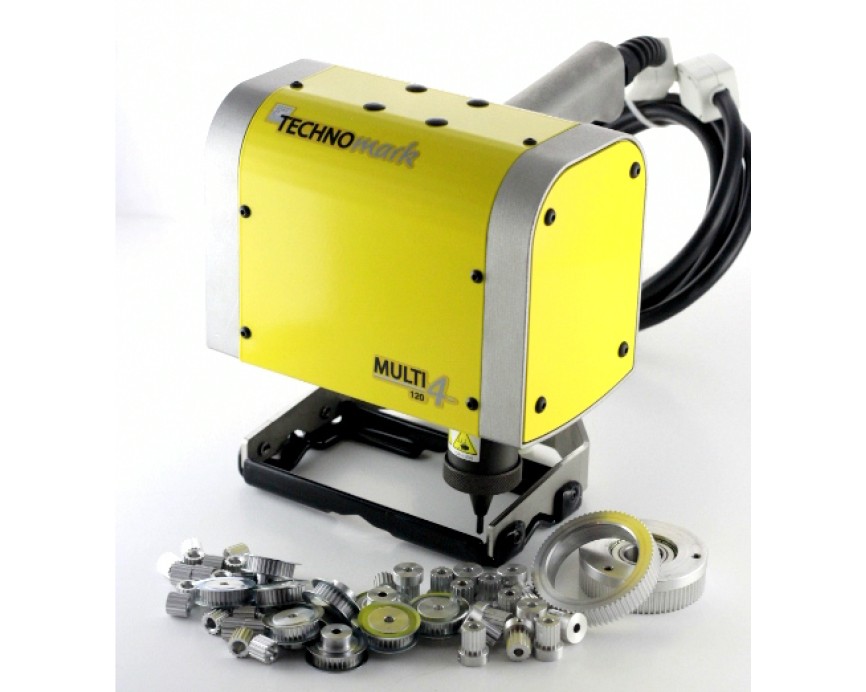

Hand Held Type: This model is ideal for large and hard-to-handle parts.

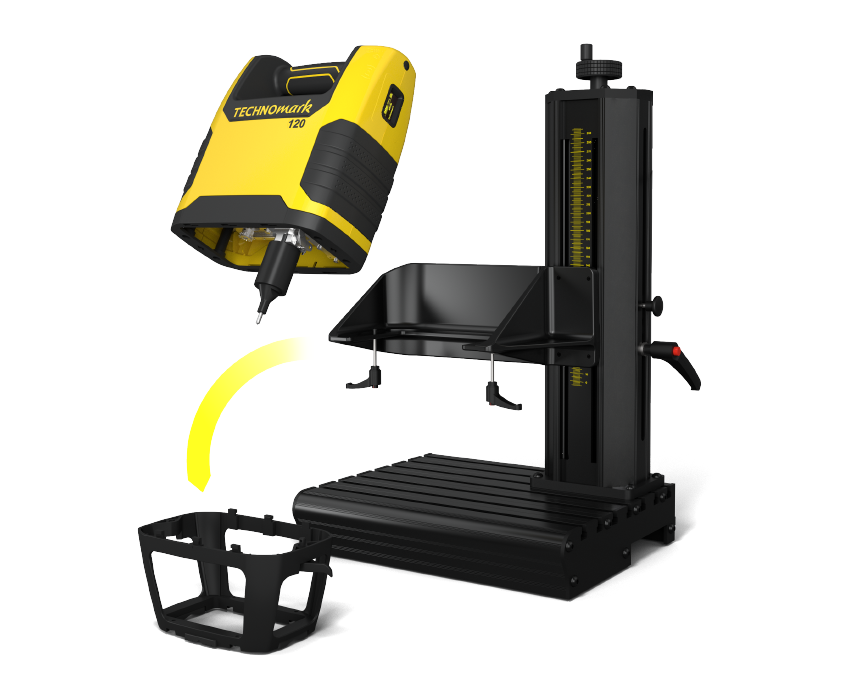

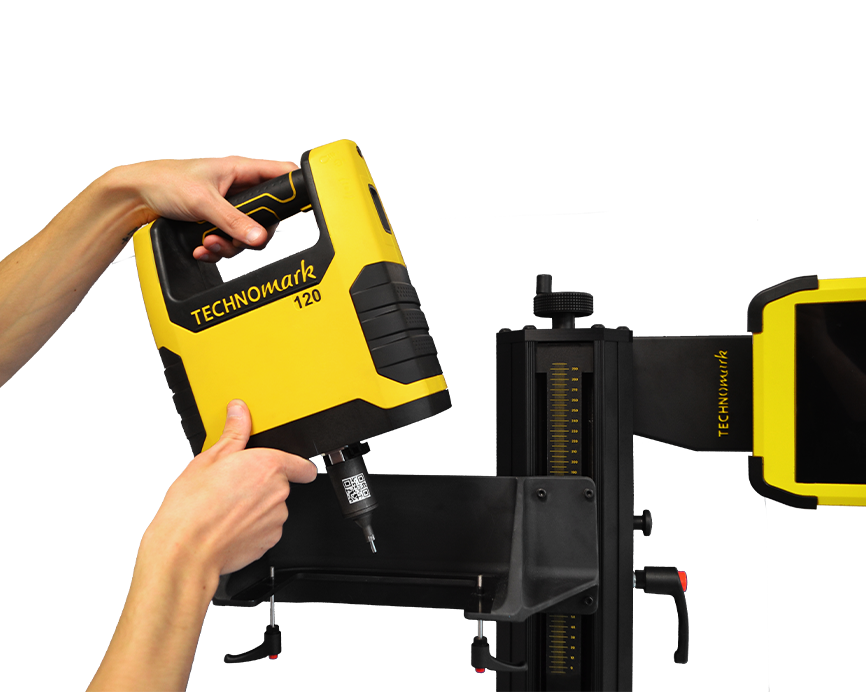

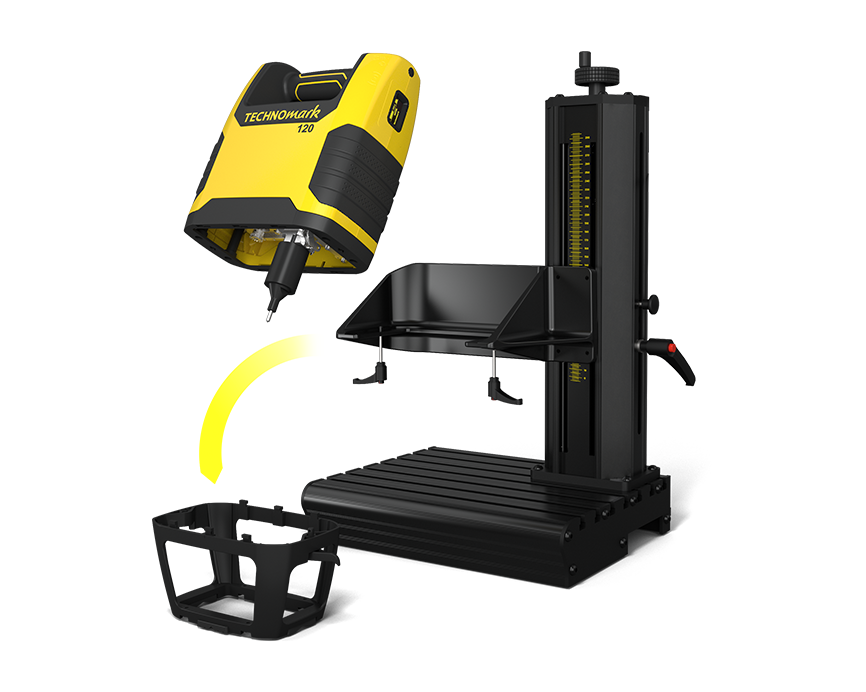

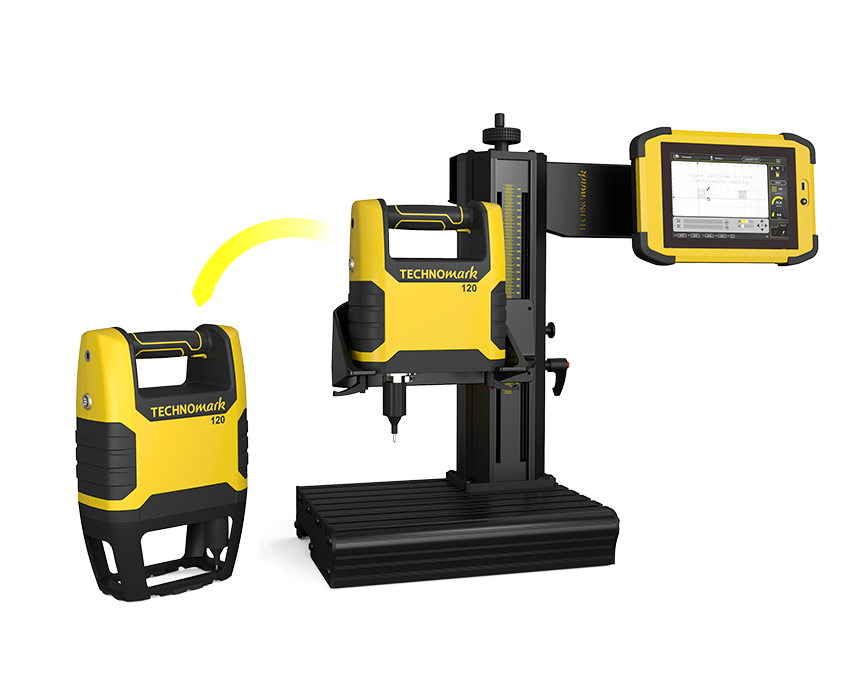

Combo: This model can be adapted to parts of different sizes and marking requirements.
Integrated: This model is compact in structure and hence can be easily integrated into different production lines.

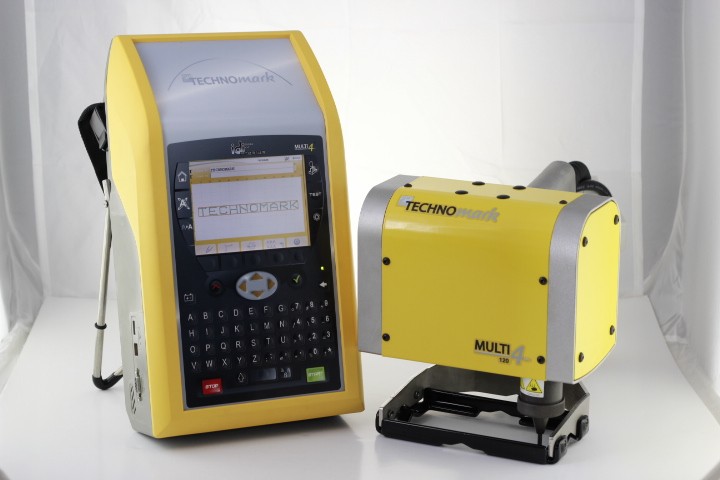

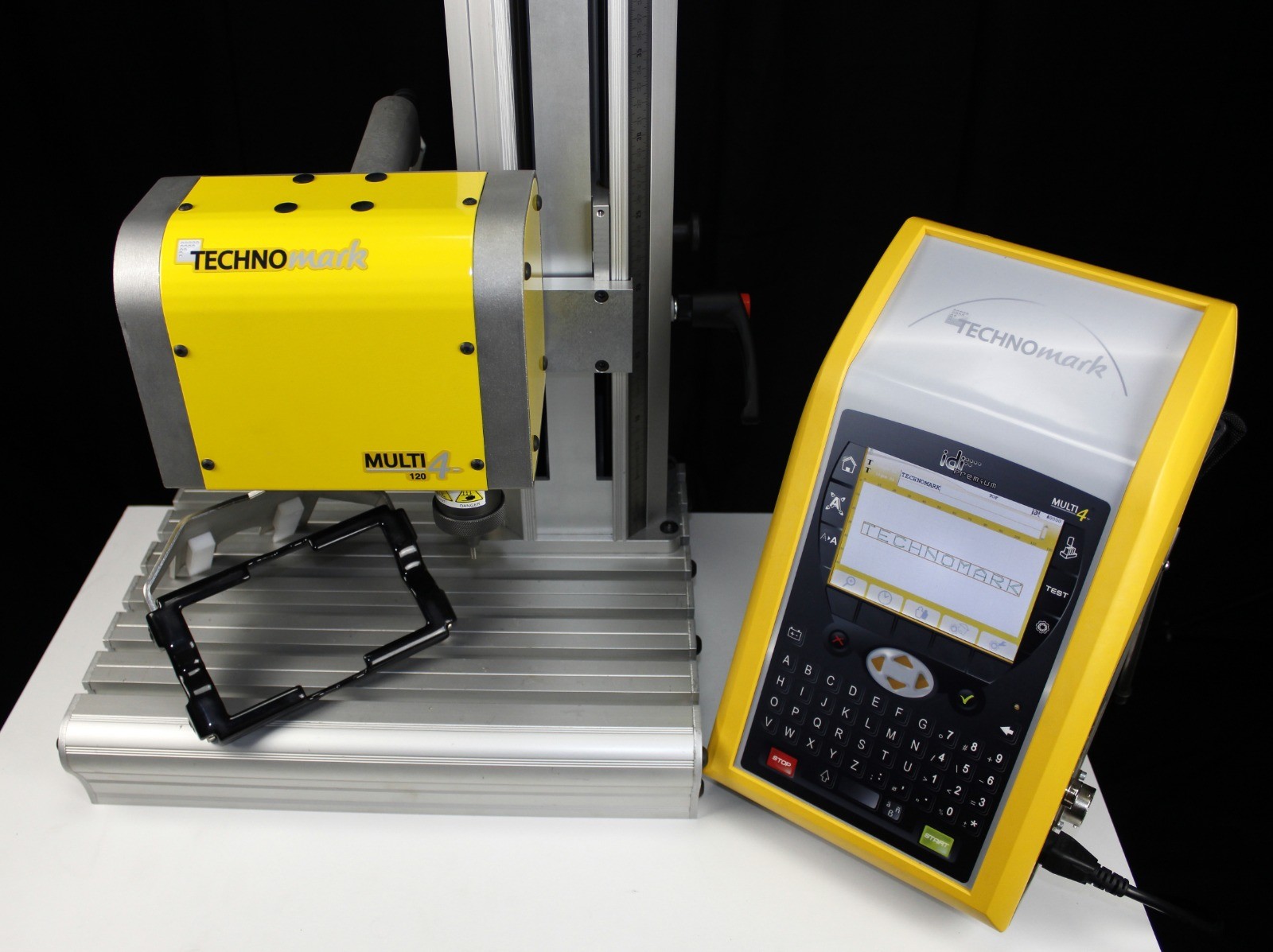

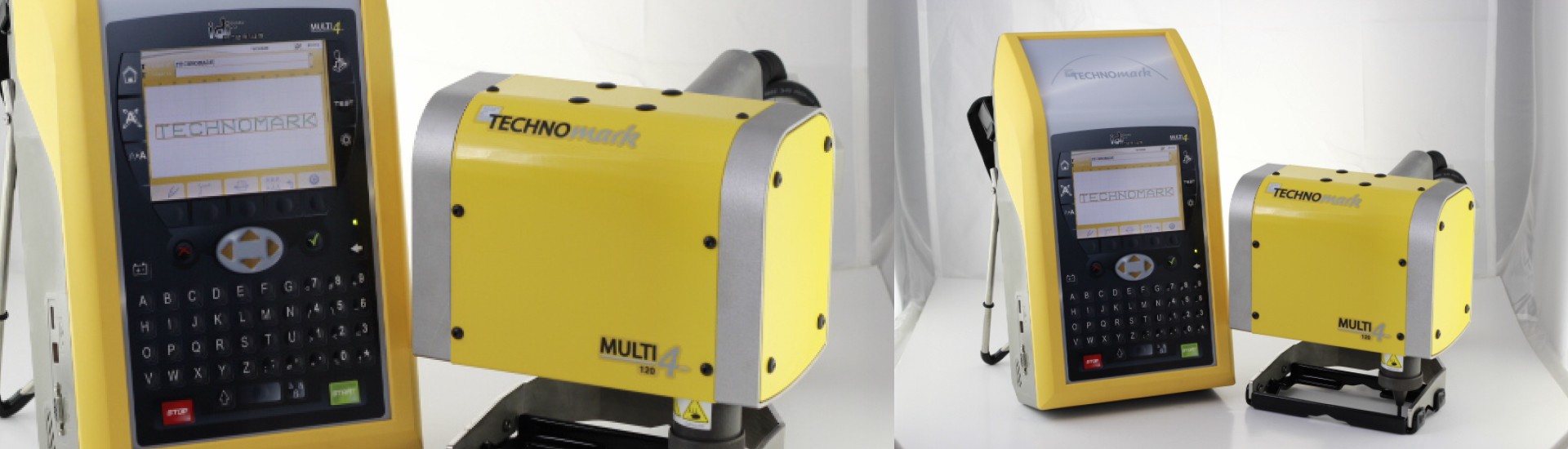

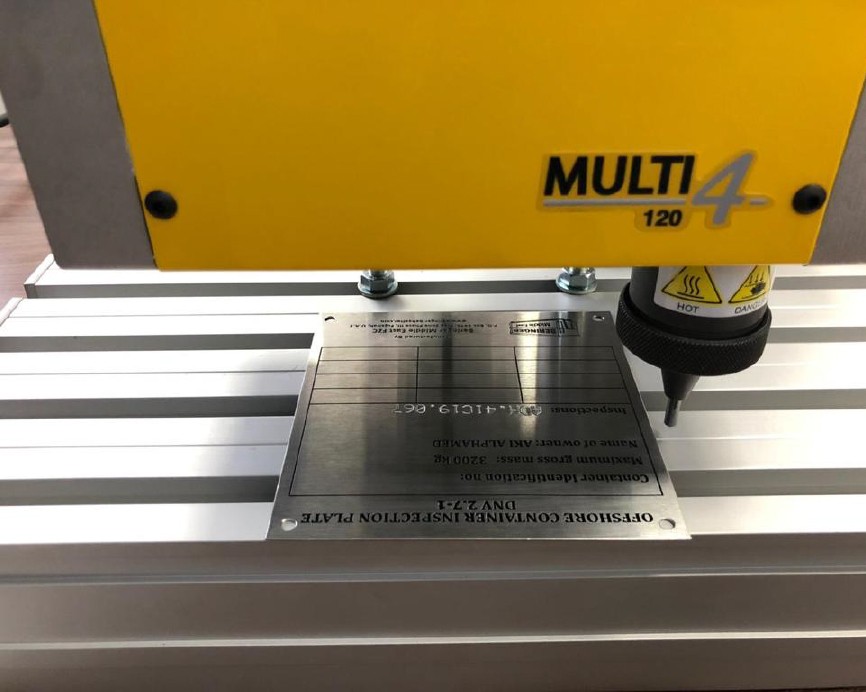

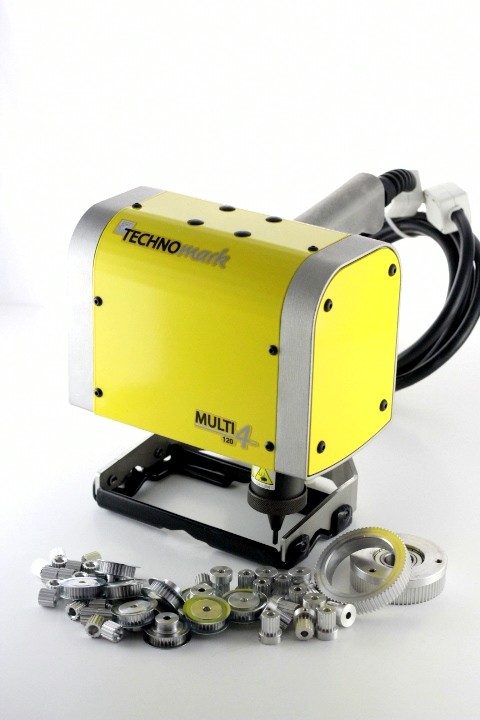

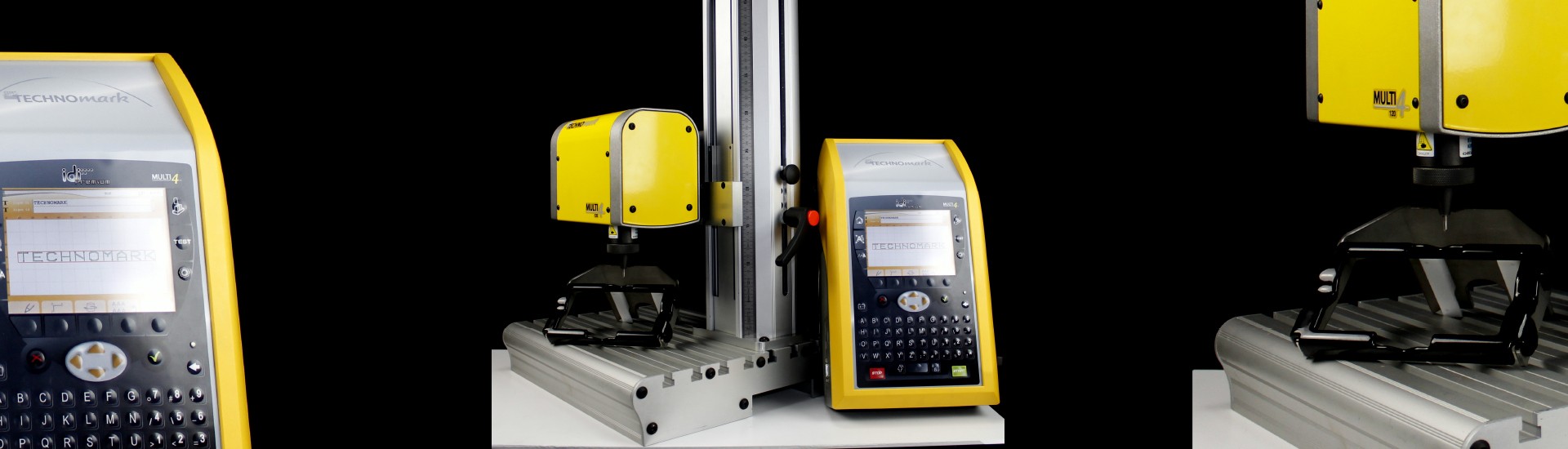

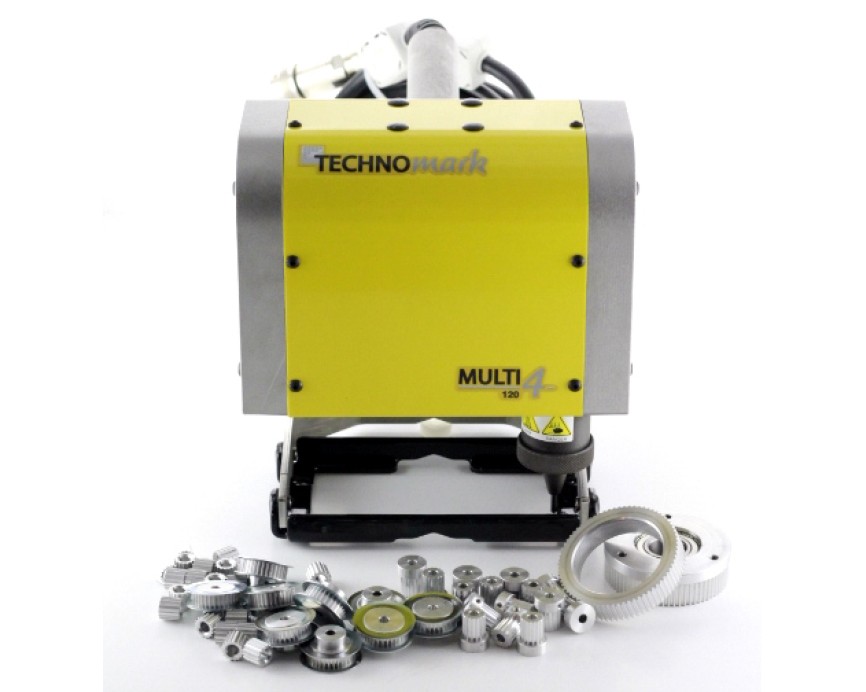

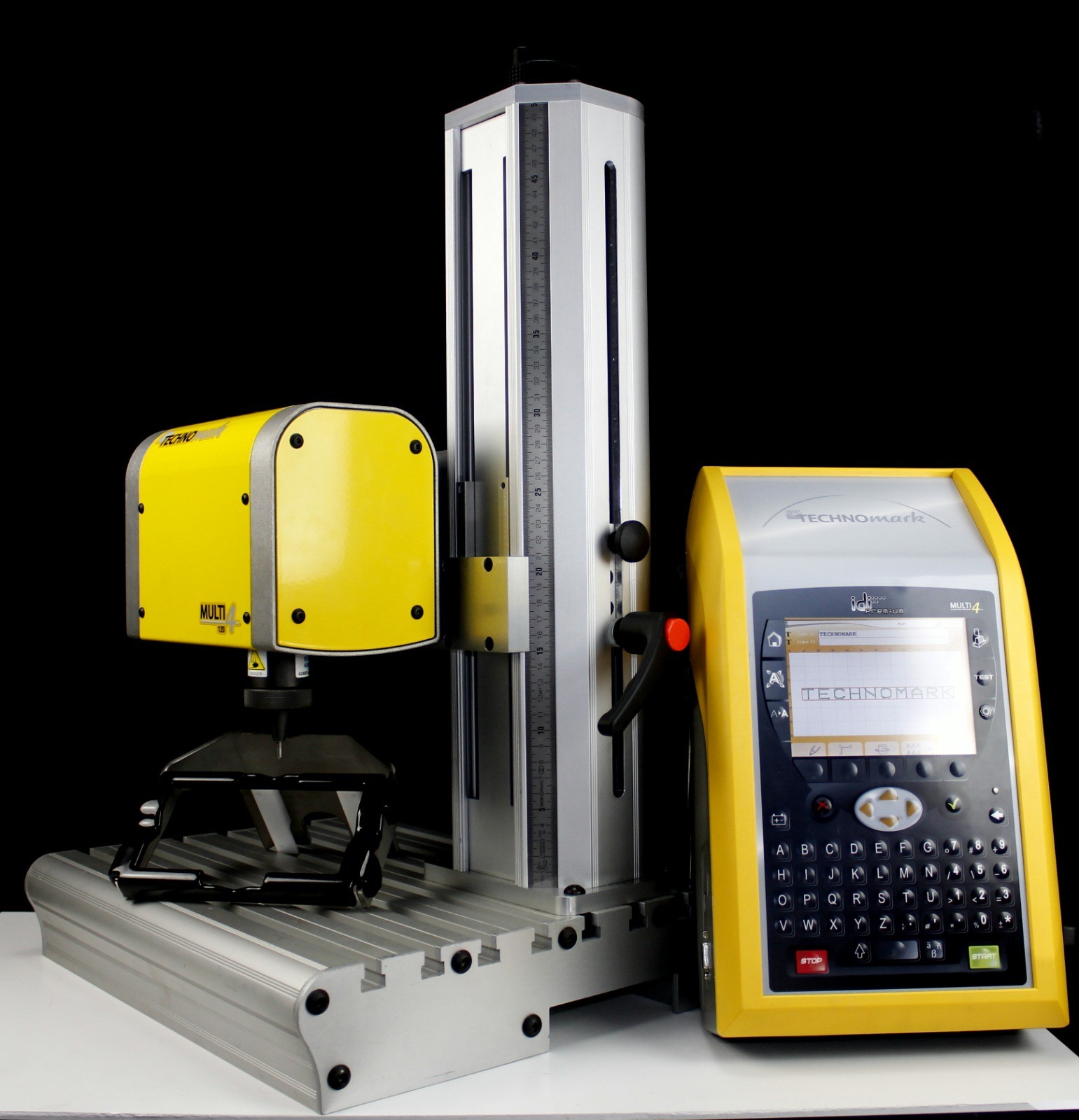

Multi 4 Controller

The Multi 4 controller marking system features the most advanced controller that consists of a high resolution (640x480px) colour screen with icon-based navigation.

The controller can automatically adjust the specifications such as speed, position etc for better results. The RS232 cable connects the controller to the equipment. It has 3 input or output ports and 2 USB ports.

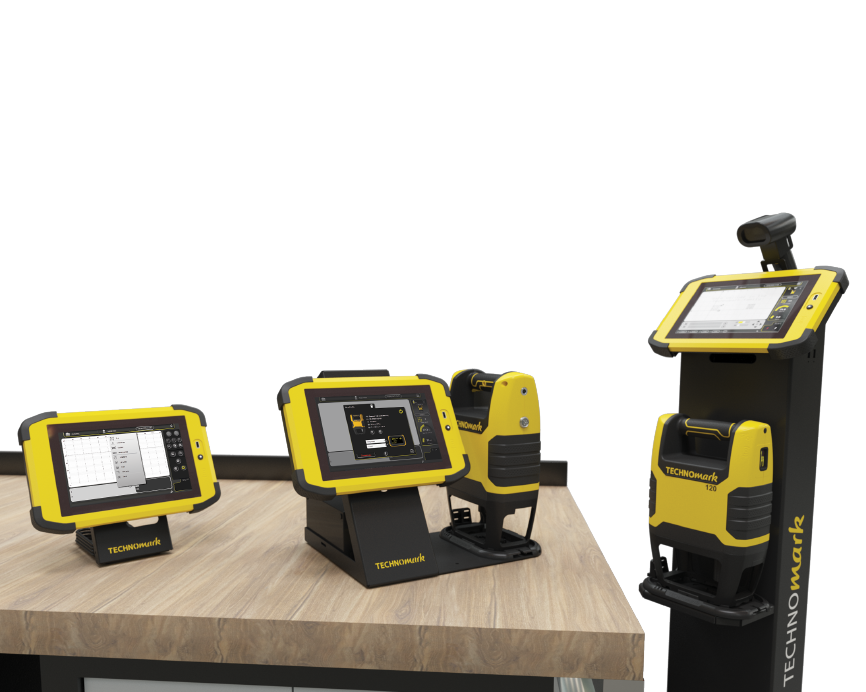

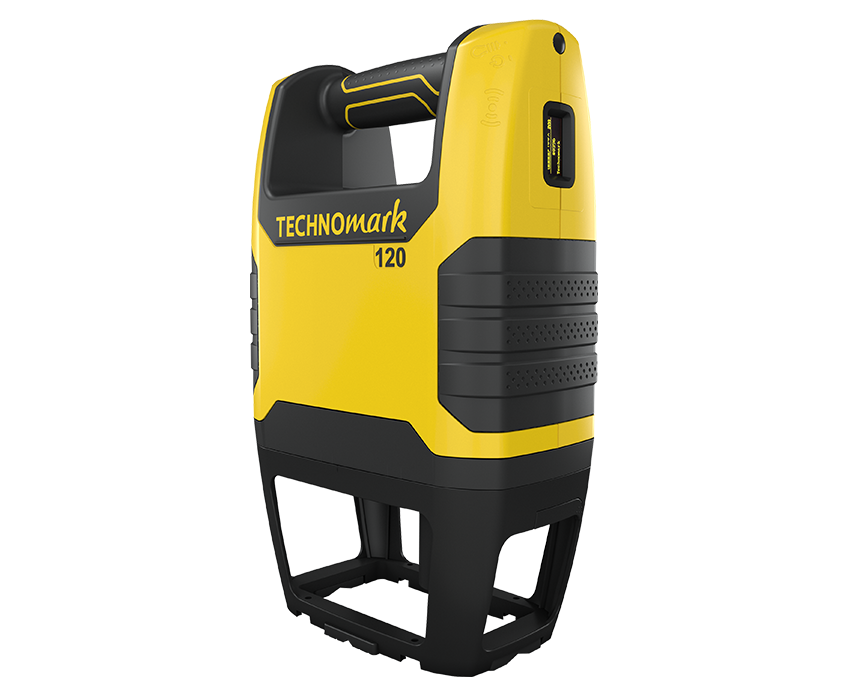

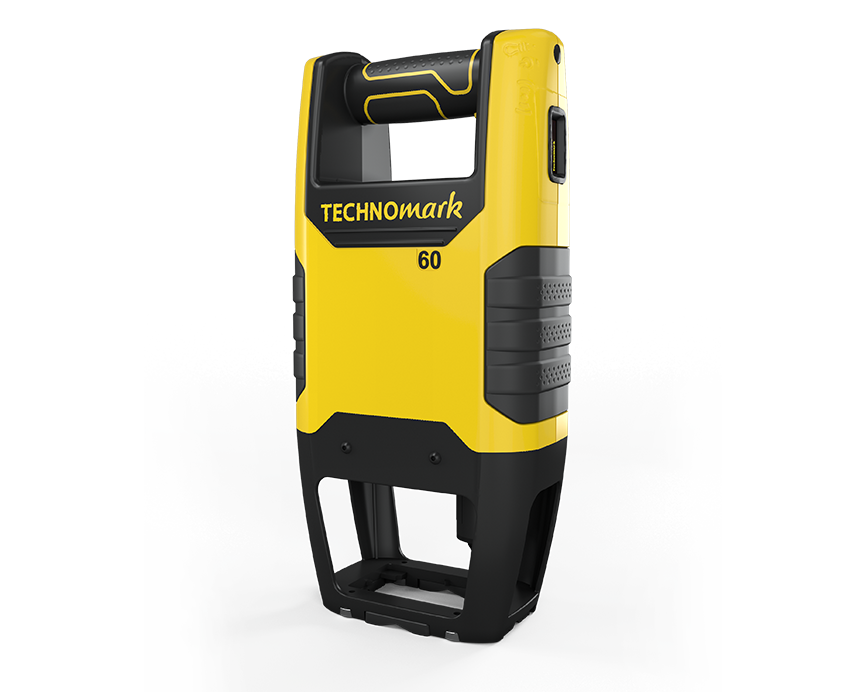

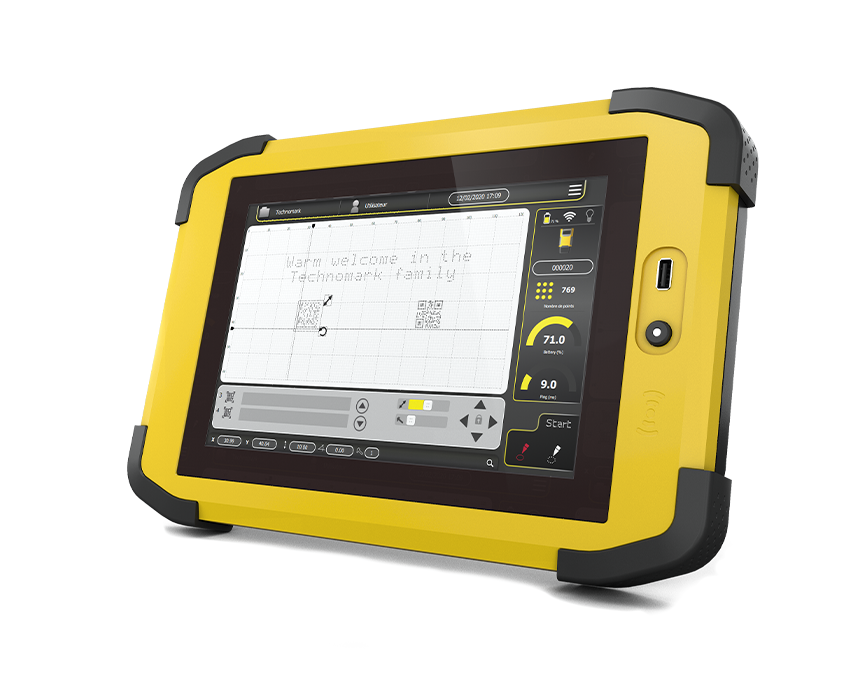

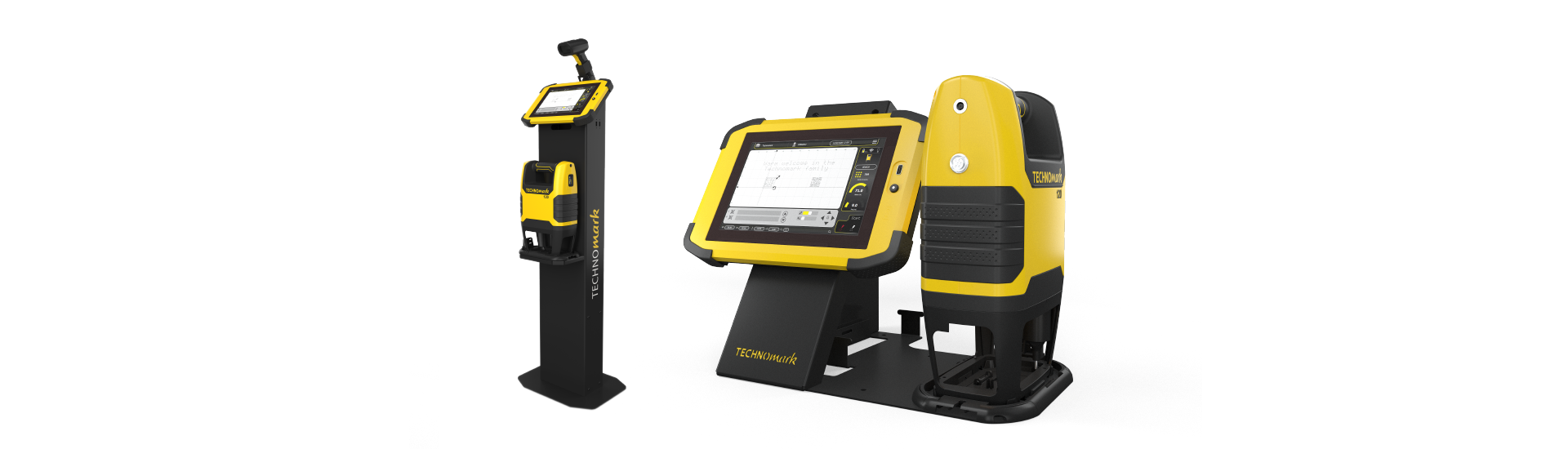

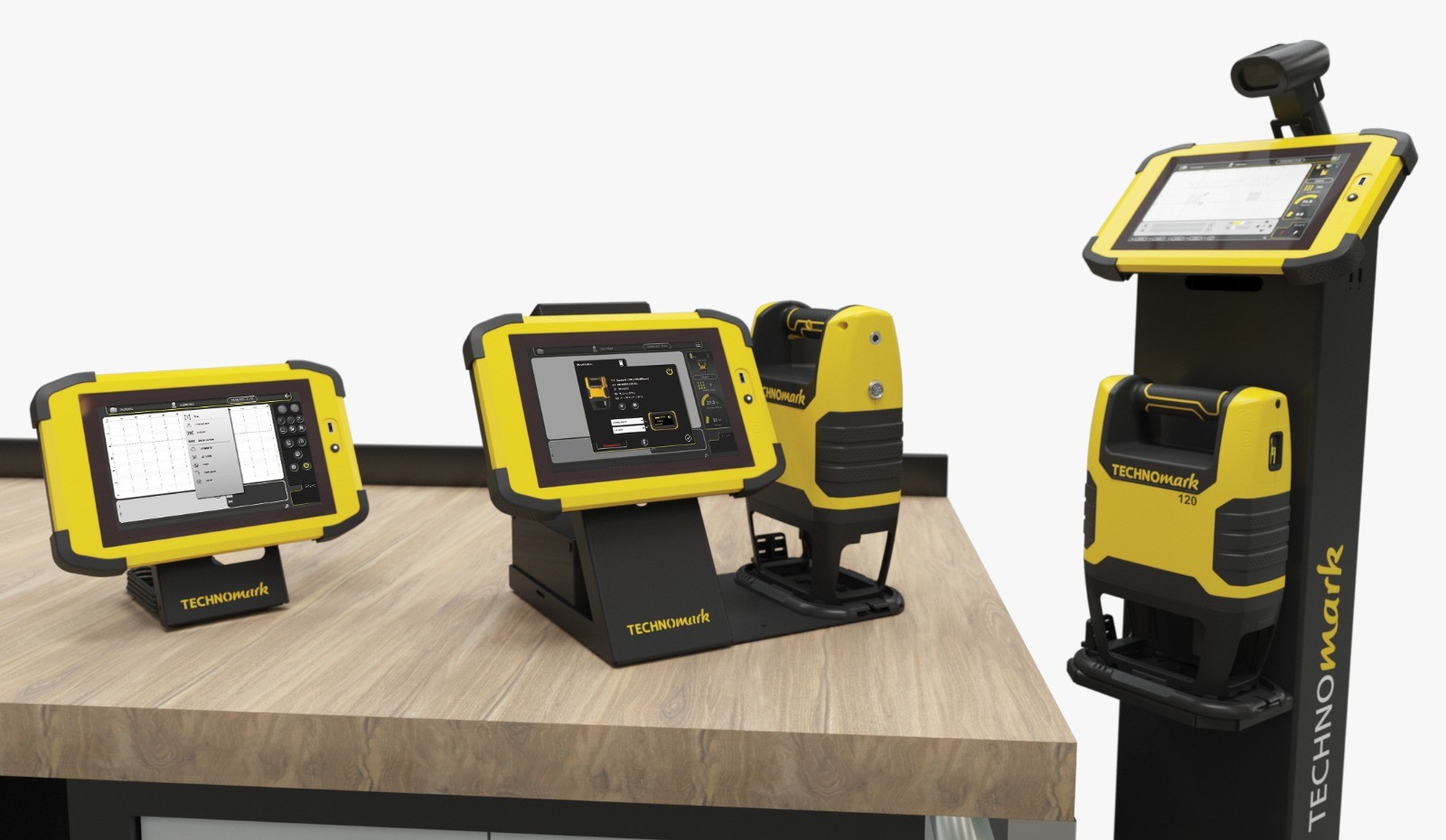

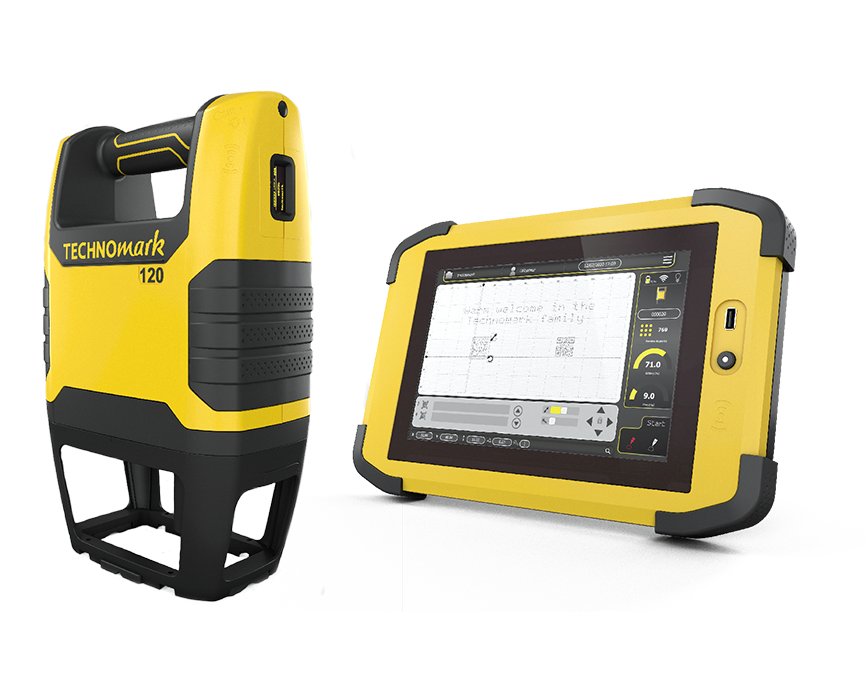

Easy Portable Marking Machine

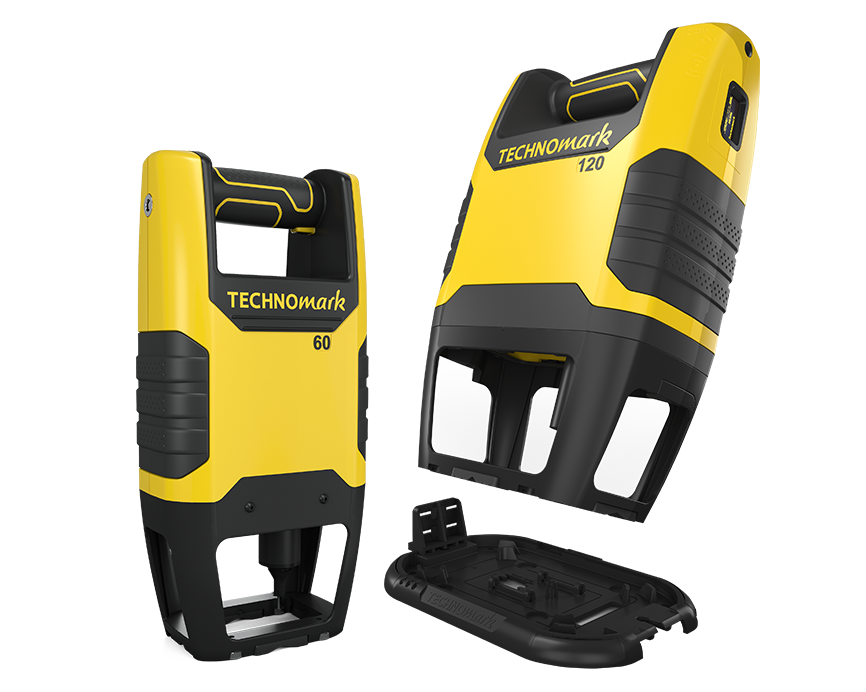

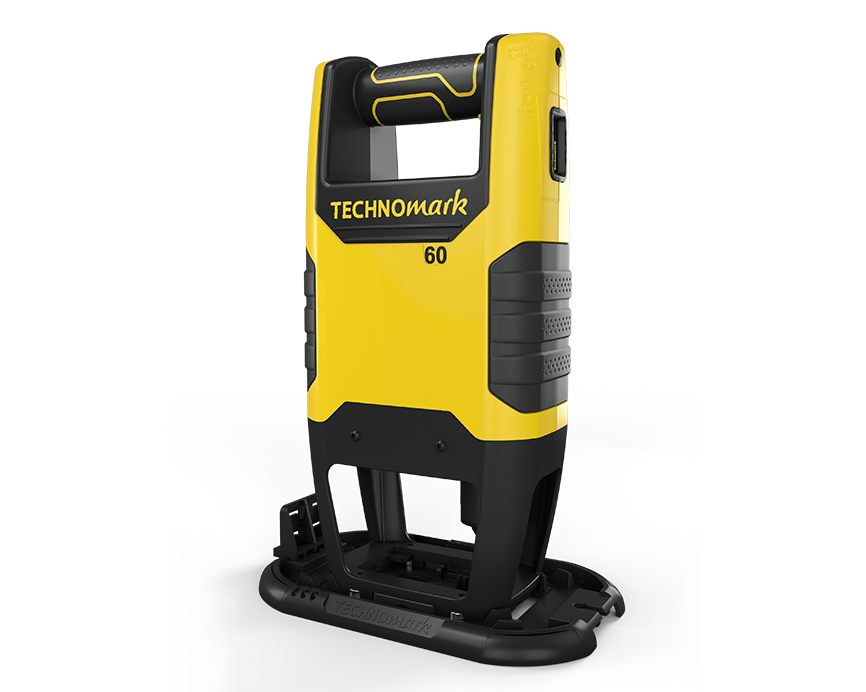

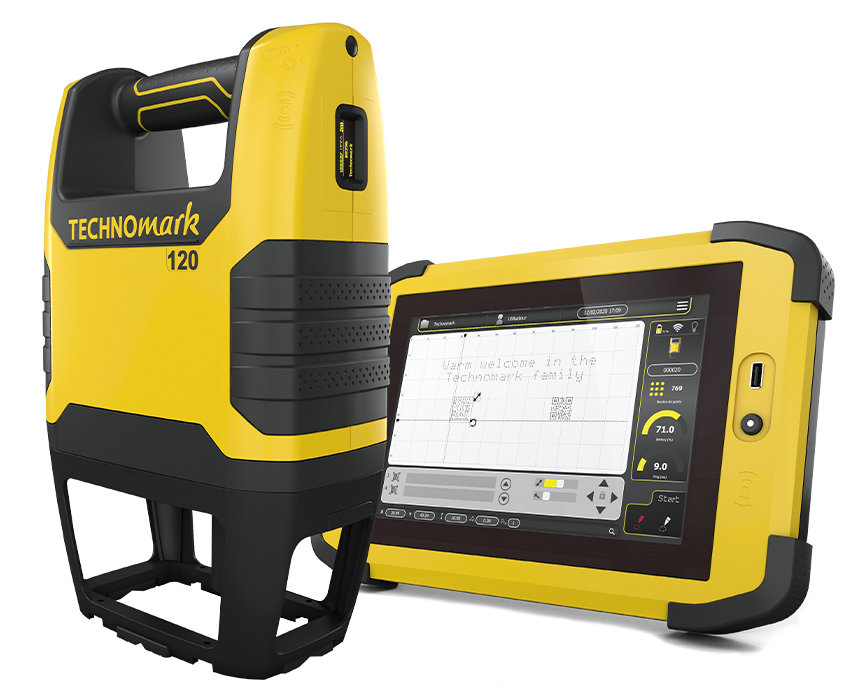

The Connect series presents the Easy Dot Peen marking system that is well suited for mobile use that will help to mark medium to large parts that are located in difficult-to-access areas. It comes in three different models:

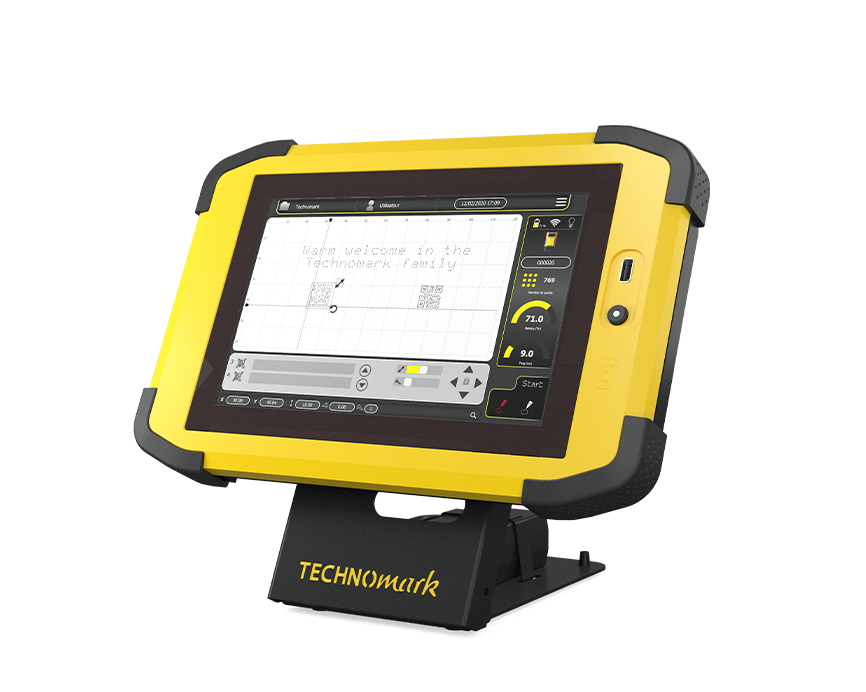

Light: This is a compact controller holder

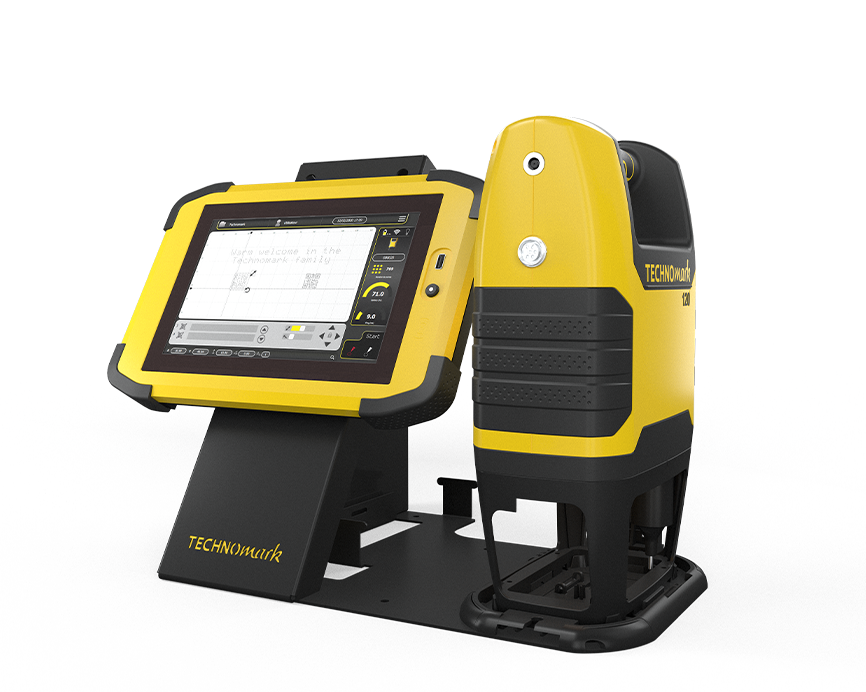

Advanced: This is a benchtop marking and charging station.

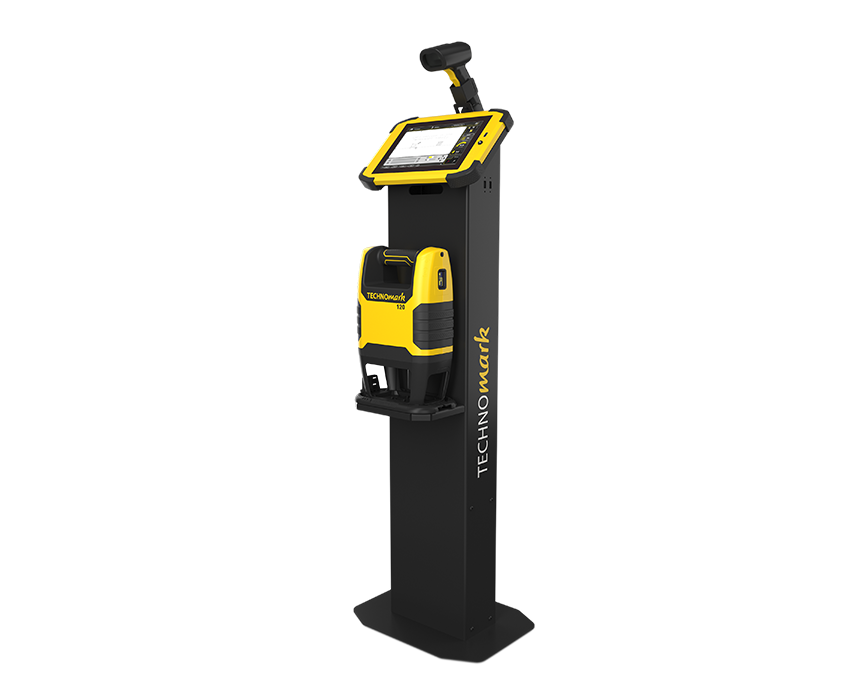

Premium: This is a complete, ground-fixed workstation.

TECHNICAL SPECIFICATIONS OF DOT PEEN MARKING MACHINE :

● Distance between the head and the controller - 10m

Marking windows - 60x30mm and 120x60mm

Number of marking speeds - 3 speeds

Number of marking forces - 11 forces

Lithium-ion battery

22V Screen- 10 inches in tempered glass

Connectivity - 1 Ethernet port and 3 USB ports Controller holder

● Universal VESA 100 fixings for 3 holder configurations

Protection - 4 protective bumpers and technical plastic shell

Why Choose The Dot Peen Marking Machine?

YES machinery distributes Dot Peen Marking solution which is the most versatile Marking solution for permanent and tamper-proof marking specially made for industrial engraving and marking.

Features of Dot Peen Marking Machine are:

- Permanent marking with Flawless deformation of the material
- Applicable in a wide range of materials
- Avoids material chips or rupture starters on the part
- Versatile technology
- Can be integrated into any production process
- Direct mark on all metallic and plastic parts with any shape or surface finish
- Reliable and efficient
- Permanent, legible, and deep marking
- Safe investment with a high return
- Compact design and full connectivity make them quick and easy.

We at YES Machinery, supply the world's best machinery solutions. We provide Don Peen Marking solutions from Technomark, one of the best marking solutions available in the market. Please come visit our showroom for a demo section and know more about the product directly from the experts. Mail: sales@yesmachinery.ae Ph: +971 6 5264382 +971 54 791 8858

FAQ (Frequently Asked Question) On Dot Peen Marking Machine

1 . List the materials that can be marked.

Some of the materials that can be marked are aluminium, steel, painted and chromed steel, stainless steel, bronze, carbide, titanium and titanium alloy, nickel and nickel alloy, and certain plastics (polyamide, polypropylene, ABS). But to ensure the desired rendering, always make sure to consult with the marking experts to carry out marking tests.

2.What All Types Of Marking You Can Produce?

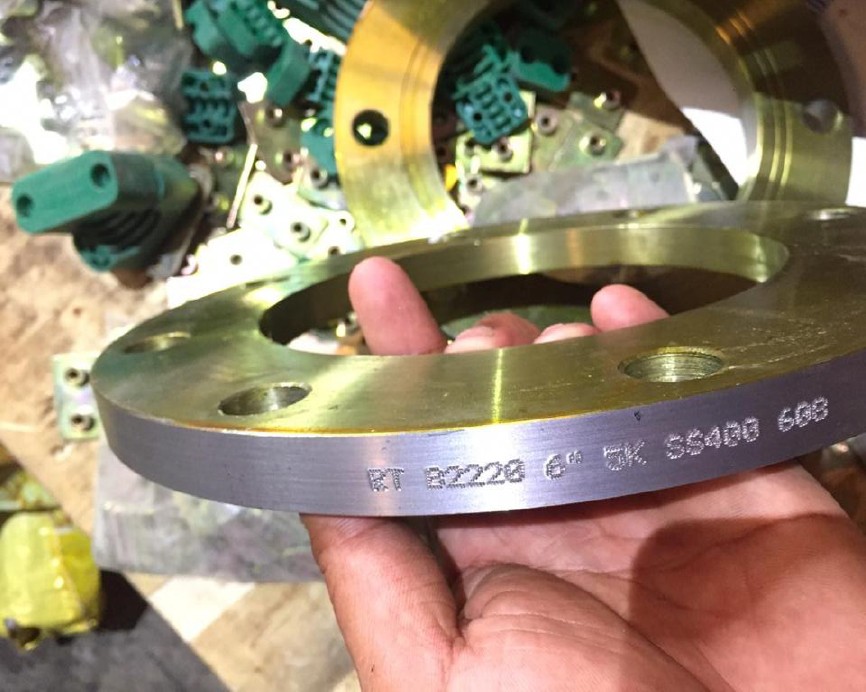

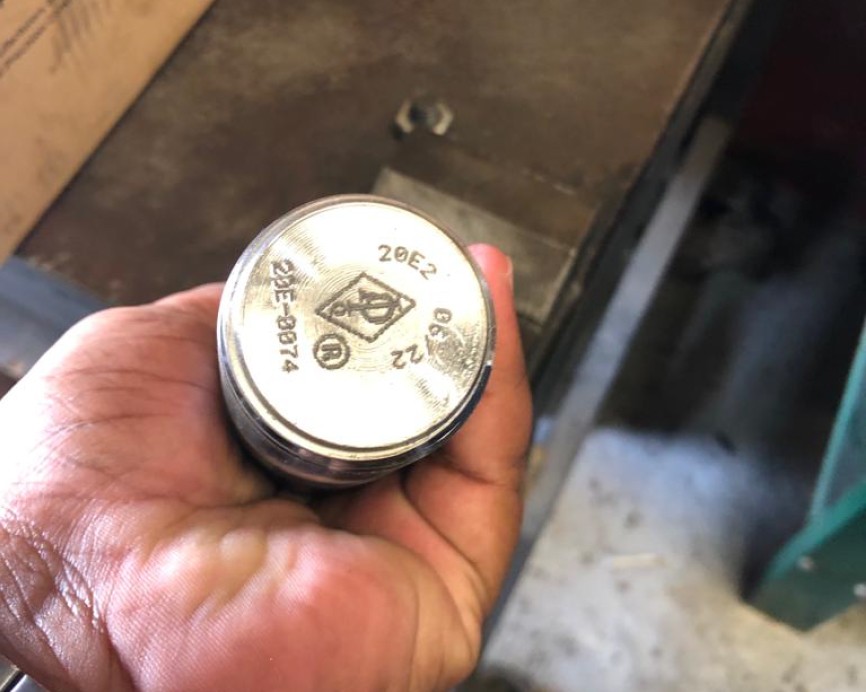

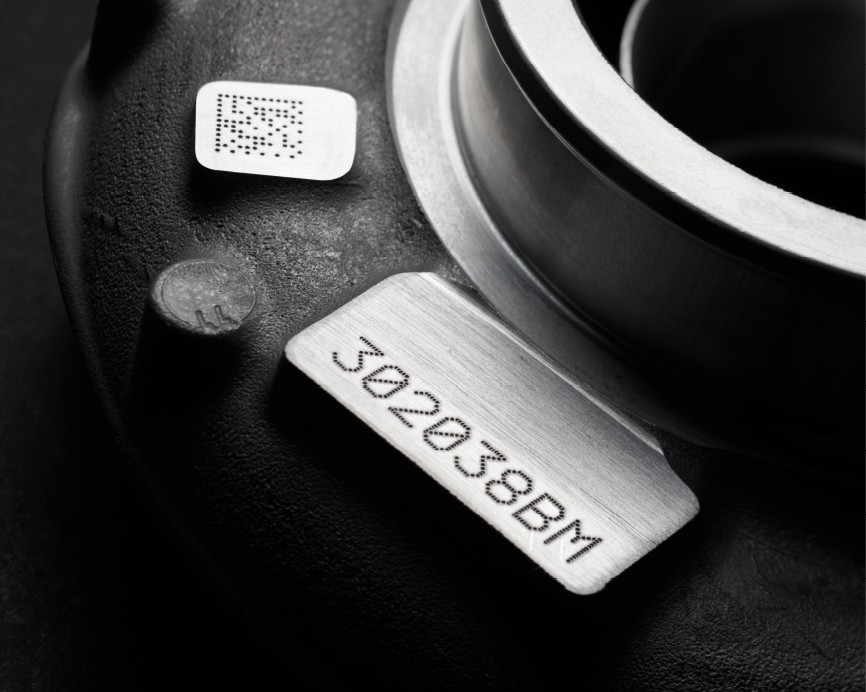

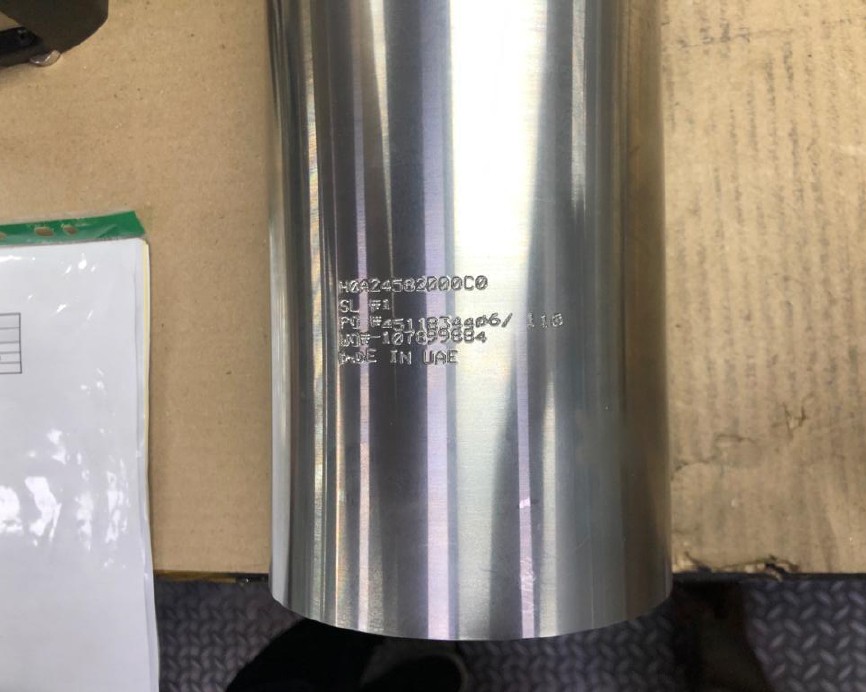

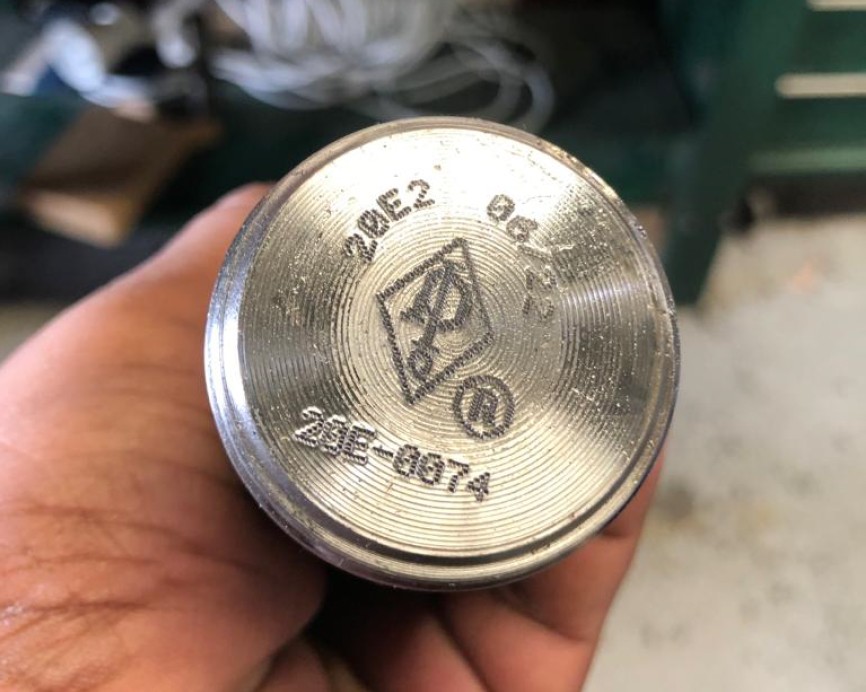

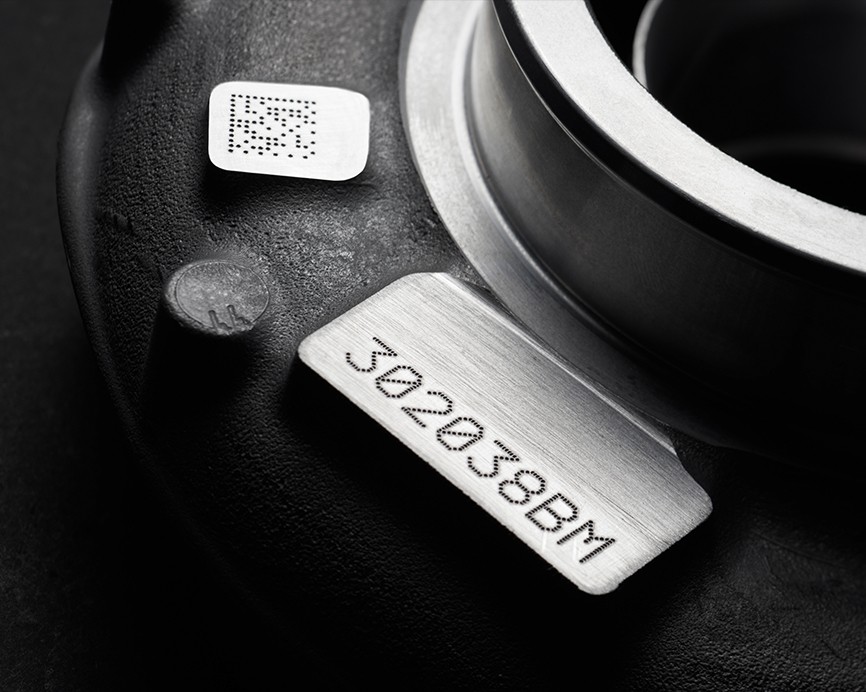

Our Company YES Machinery is providing the best marking pen from the top brand by the manufacturer Technomark. The Dot peen marking devices manufactured by Technomark can produce all types of permanent markings: QR codes and Datamatrix 2D codes, alphanumeric characters and plain text, logos and simple symbols, and time stamping.

3.What Are The Fields Of Application Of Marking Pens?

Automotive, medicine, aeronautics, metallurgy, energy, agriculture, agri-food, defense, electronics, railway, lifting and public works, mechanics, motorcycles, heavy trucks, etc.

Applications
event

Datamatrix + numérique MP

event

logo marking finura kitchens

event

logo marking finura kitchens

event

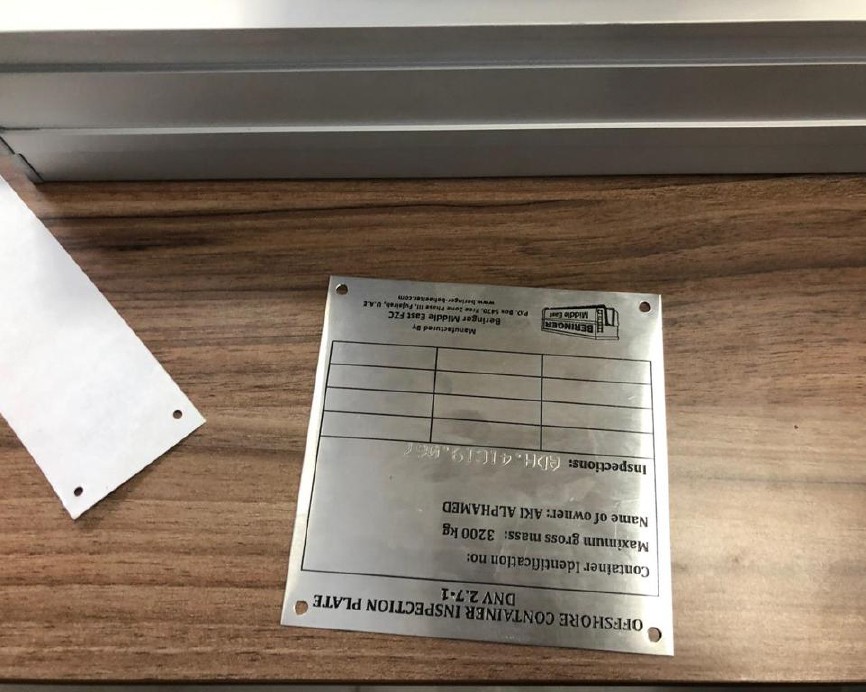

Dot Pen Marking & Easy Portable marking

event

Dot Pen Marking & Easy Portable marking 2

event

Dot Pen Marking & Easy Portable marking 3

event

Dot Pen Marking & Easy Portable marking 4

event

Dot Pen Marking & Easy Portable marking 5

event

Dot Peen Marking Machine

event

Alphanumérique - Dot Peen Marking Machine

event

Dot Peen Marking Machine 20

event

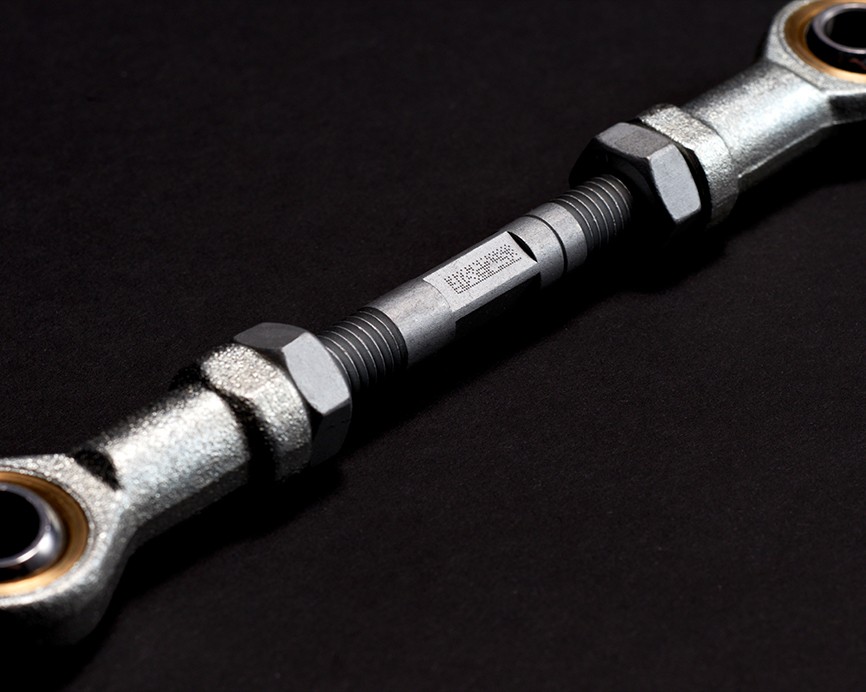

Datamatrix light MP

event

Dot Peen Marking Machine 4

event

Dot Peen Marking Machine 5

event

Dot Peen Marking Machine 7

event

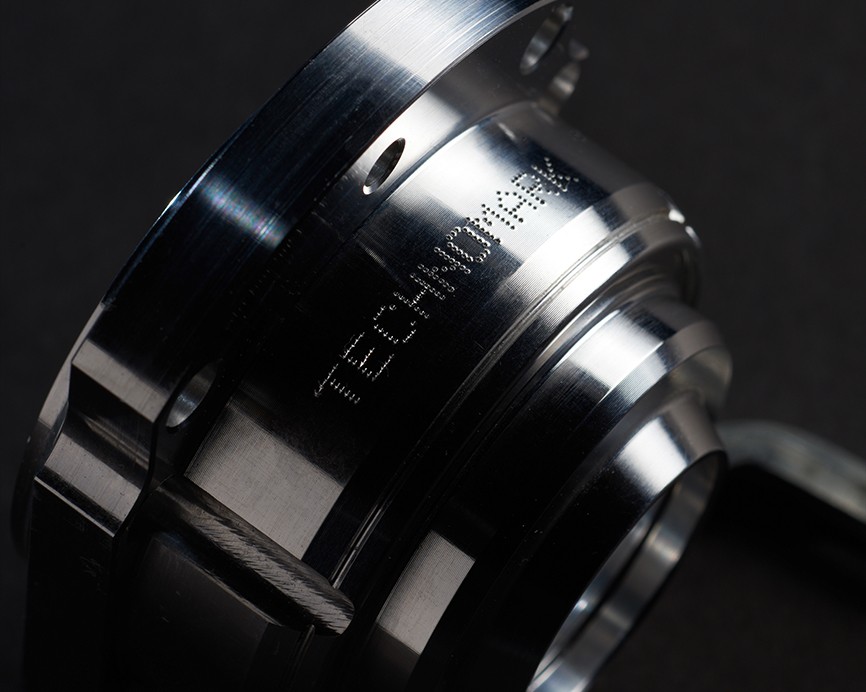

Technomark curve MP

event

Technomark MP plexi nouveau

event

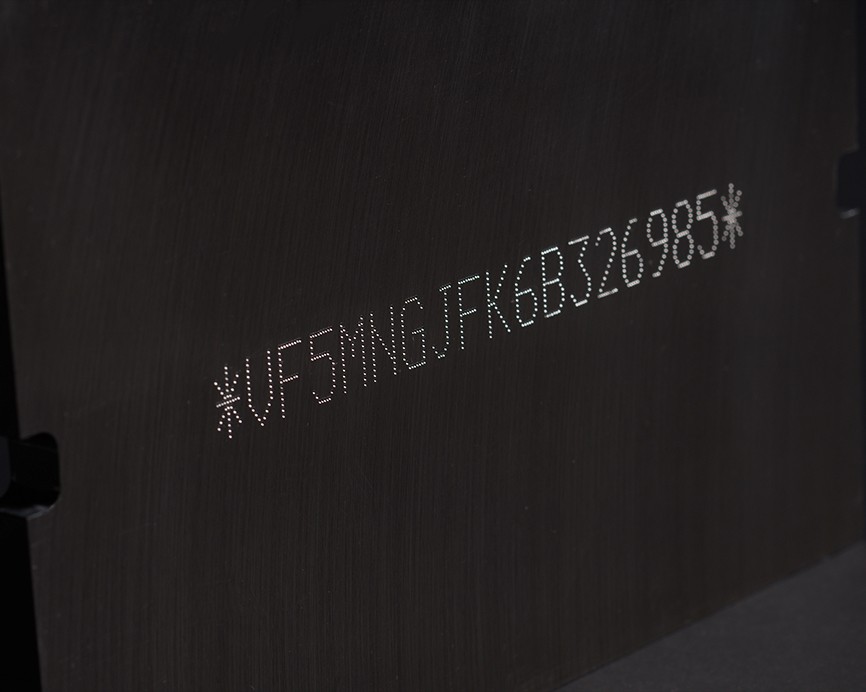

VIN number MP steel (2)
