Customized wrapping

Wrapsolut

Wrapsolut, is a company that specializes in the development and manufacturing of innovative custom wrapping machines. Wrapsolut produces a variety of wrapping machines designed for different industries. Their main products include machines for wrapping, holding, and packaging a wide range of products. These machines are used for applications such as coil wrapping, stack packaging, large packages, long goods, cardboard boxes, furniture, pallets, and more. Wrapsolut offers both standard machines and special machines tailored to specific requirements.

Circle Line Wrapping Machines

The central element of our wrapping machines is the wrapping unit. We build the wrapping units in different sizes, adapted to the application and the dimensions of the products:

• wrapping ring inner diameter from 290 mm to 3,590 mm (or larger)

• intended for wrapping material widths from 30 mm to 500 mm

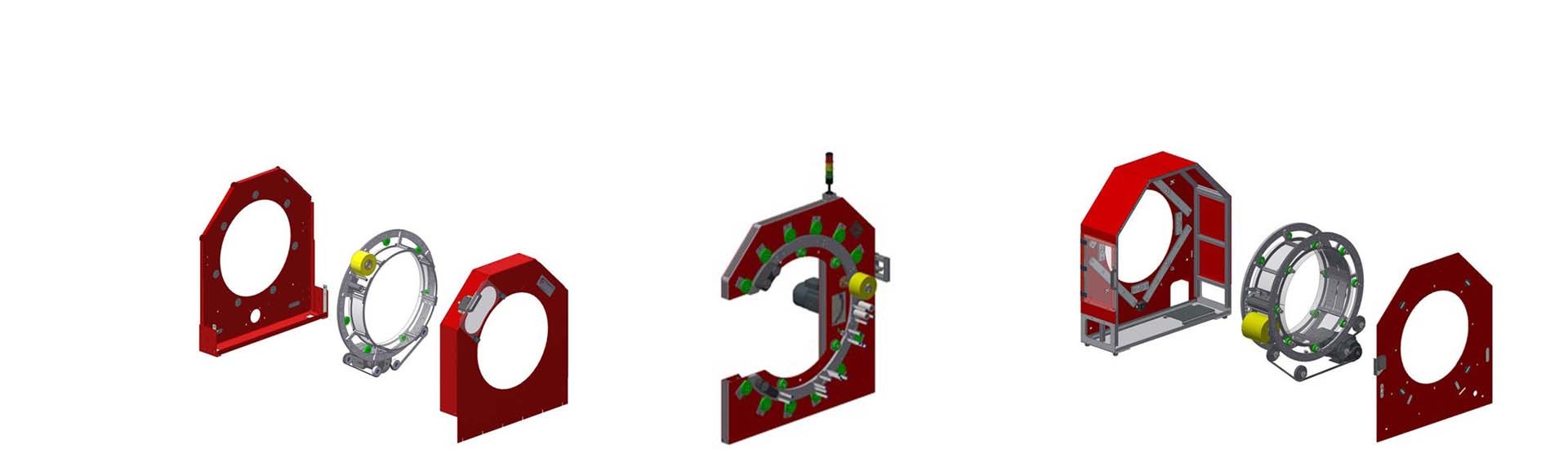

The machines comes in 2 systems, viz Closed Ring system and Open ring system.

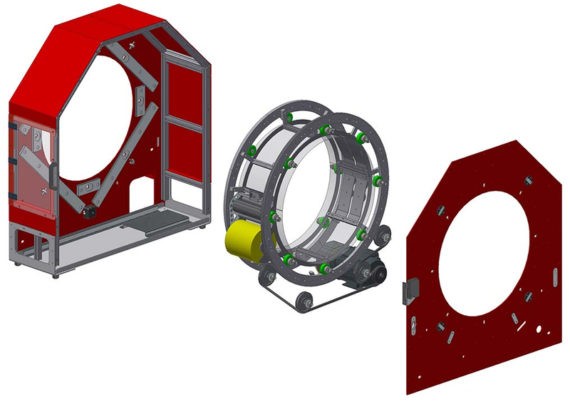

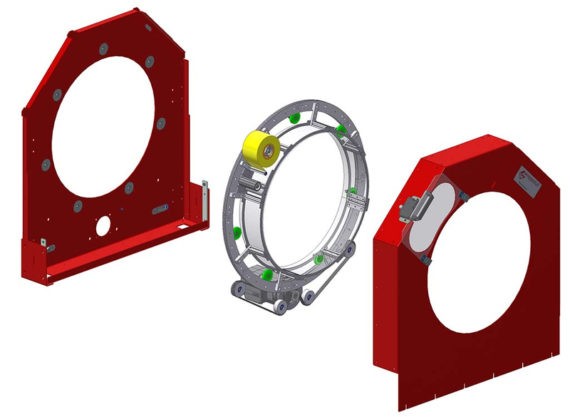

The closed ring systems differentiate between the single ring and the double ring system in the structure of the wrapping rings.

Whereas in the Open ring system, the C-frame is designed as a rigid housing in which the bearings for the ring guide and drive rollers are accommodated.

The constructive design allows direct access to the components subject to wear. The entire machine design is very service-friendly. The service intervals are reduced to a minimum due to the selected materials and components.

Flex Line Wrapping Machines

For a mechanical packaging process, a wrapping material is guided around a product and the wrapping material is unwound onto the product. Ring or shuttle systems are used to guide the roll of material around the product, moving on a predetermined path.

These systems can only be used to a limited extent due to the specified tracks. Some tasks can only be fulfilled with great effort or not at all.

Based on this state of the art, Wrapsolut have made it our task to develop a system which is capable of guiding a roll of wrapping material on a flexible path (FlexLine) around products.

As a result Wrapsolut developed our FlexLine system "LineStrech-One"

As a principle, the system consists of two handling systems, consisting of a horizontally and vertically moving axis, face each other. A gripping system is mounted at each end of one of the axes, which can hold the roll of wrapping material. During the wrapping process, the roll of wrapping material is transferred from one handling system to the other. The handling systems can move freely in space on their axes.

Thus it is possible to guide the roll of wrapping material always on the optimal way around a product or also through a product.

The wrapsolut machines finds applications in the following;

1. Coil wrapping

2. Stack Packaging

3. Furniture packaging

4. Sheet formats

5. Large Packages

6. Pallets

7. Wheels and tyres

8. Long goods

9. Tray Packages

10. Bundled coils

11. Cardboard boxes

12. Rolled goods.

Why choose wrapsolut?

Innovative Technology: Wrapsolut is at the forefront of wrapping technology. Their FlexLine-Wrapping machines revolutionize the way products are wrapped by allowing flexible paths and optimal orbital paths around products.

Custom Solutions: Wrapsolut specializes in custom wrapping machines tailored to specific industries and product types. Whether you need coil packaging, tray packing, or other specialized solutions, Wrapsolut can design machines to meet your requirements.

Versatility: Wrapsolut’s CircleLine machines cover a wide range of applications, including coil wrapping, stack packaging, long goods, and more. The CL 040 – 400 / 600 / 800 model even expands its application range to include furniture and cardboard boxes.

Quality and Precision: Wrapsolut’s machines offer precise manual operation, allowing for optimal control during the wrapping process. Their commitment to quality ensures reliable and efficient performance.
