Conventional Lathe Machine

MASCUT

Iron Flower Machinery Inc., founded in 1981, is a leading manufacturer with over 25 years of expertise in conventional precision lathes. These machines are designed with many advanced options to ensure optimal performance and versatility in various machining applications.

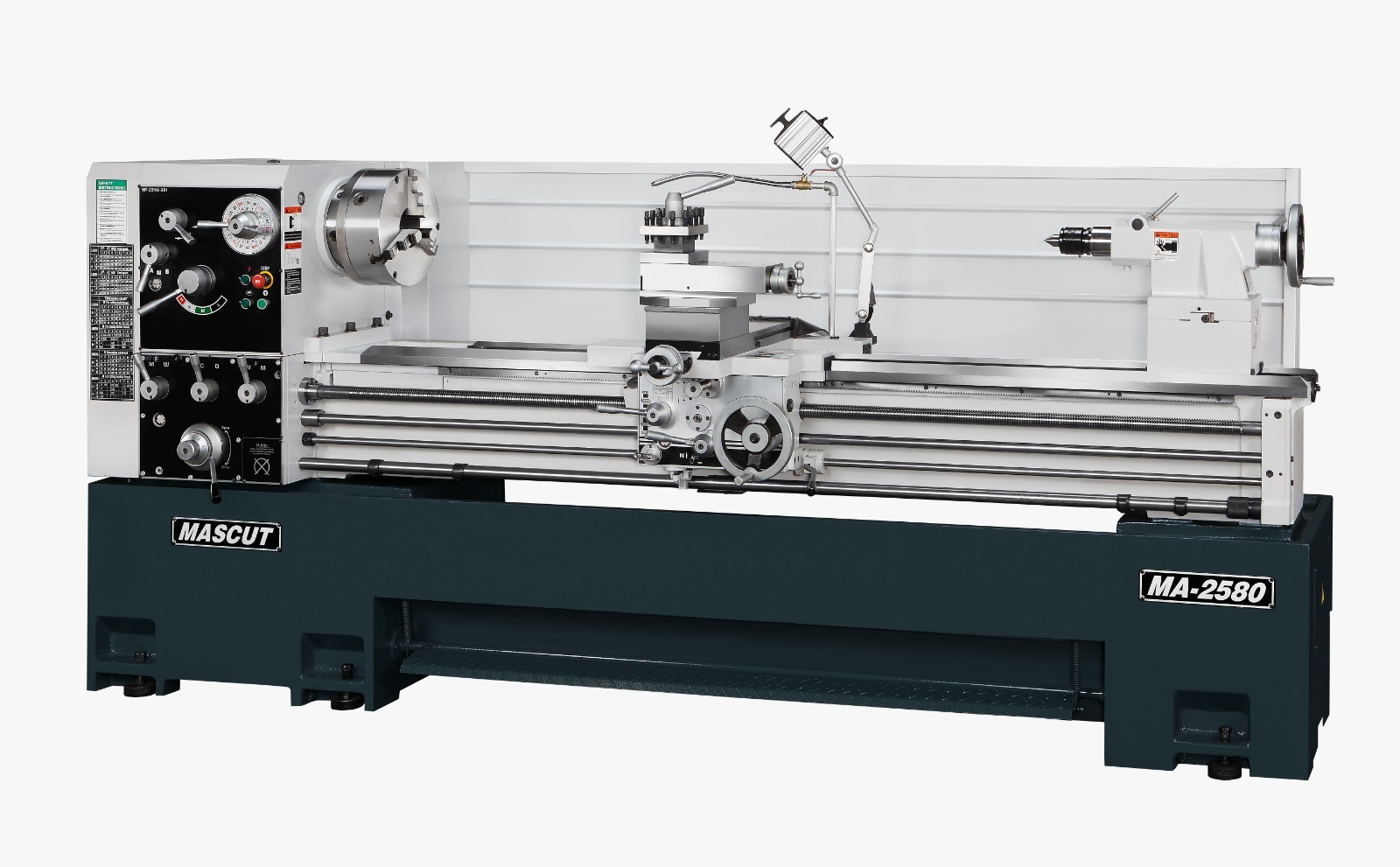

CONVENTIONAL PRECISION LATHE MACHINE

Our conventional precision lathe is a powerful and durable machine designed for high-precision tasks involving large and heavy materials. Unlike normal lathes, these machines are built to handle bigger, tougher jobs and maintain accuracy even when working under heavy loads. They are ideal for industries that need high strength and precision.

Types of Conventional Precision Lathes:

1. Conventional Type:

This type of lathe operates using traditional mechanical controls. It offers straightforward, manual operation where the operator controls the cutting tool directly.

Benefits:

Simplicity: Easy to use and understand for operators familiar with manual lathes.
Durability: Known for long-lasting performance due to its mechanical nature.
Cost-Effective: Generally, more affordable than advanced types with electronic controls.
2. Inverter Type:

This lathe uses an inverter drive system for more precise control of spindle speed and torque. It features advanced electronics that enhance performance and efficiency.

Benefits:

♦Enhanced Precision: Offers greater control over spindle speed and cutting parameters, resulting in finer and more accurate work.
♦Energy Efficiency: The inverter drive system reduces power consumption and operational costs.
♦Versatility: Can handle a wide range of materials and sizes with improved adaptability.

FEATURES OF OUR CONVENTIONAL PRECISION LATHE

Our conventional precision lathes offer superior performance compared to normal lathes, providing several advanced features for improved machining efficiency. Upgrade to our conventional precision lathes for a more precise, efficient, and user-friendly machining experience.

Variable Speed Options:

Enjoy 3-step speeds, each with variable speed adjustments, allowing for precise control over your machining tasks.
Automatic Speed Shifting:

Experience effortless speed changes with our auto-shifting feature, enhancing ease of use and operational efficiency.
Convenient Control:

Easily manage turning processes with clear spindle speed readings shown on the RPM meter, ensuring accurate and convenient adjustments.
Quick Braking:

Benefit from quick braking controlled by an inverter stop, improving safety and reducing downtime.
Fine Accuracy and Speed:

Achieve fine accuracy and optimal speed for slide face machining of round plates through cross feeding at a fixed spindle speed, similar to the CSS function.
Rapid Effect for Step Turning:

Our cross feeding feature allows spindle speed changes to match the requirements for step turning, delivering rapid and effective results.

BENEFITS

♦High Capacity: Designed to handle large and heavy workpieces that conventional lathes might struggle with.

♦Precision and Reliability: Ensures accurate and consistent results even in demanding environments.

♦Durability: Built to withstand heavy use and extend the life of the machine.

♦Turning efficiency: The inverter-controlled lathe helps to upgrade operational convenience and reduce machining cost.

♦Big capacity : A conventional precision lathe designed to dramatically improve your metal removal rate.

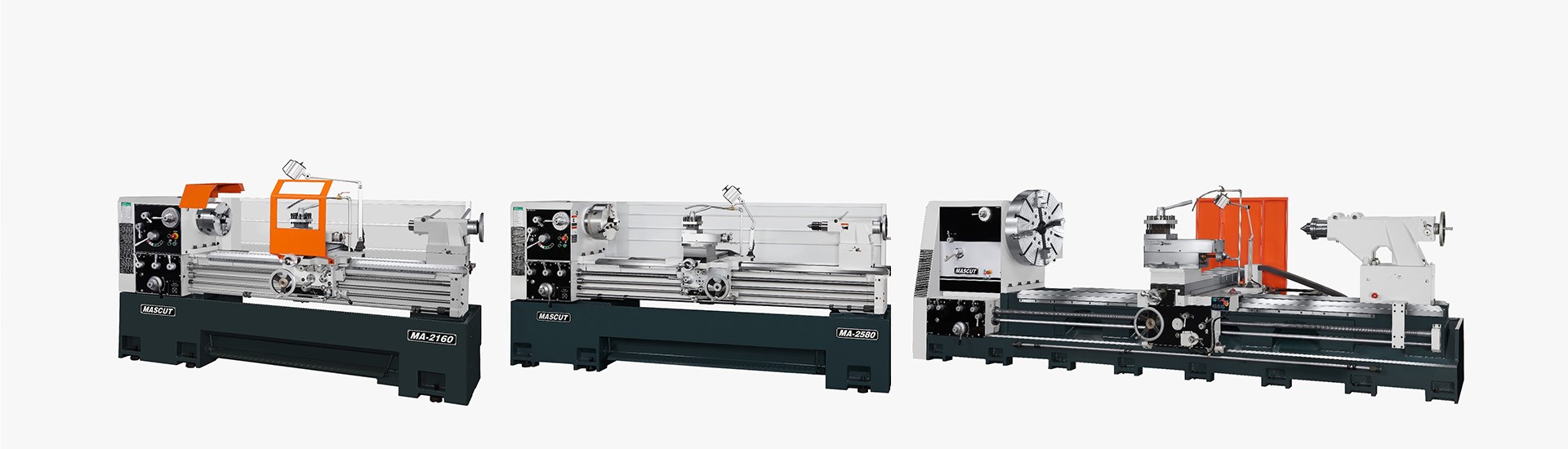

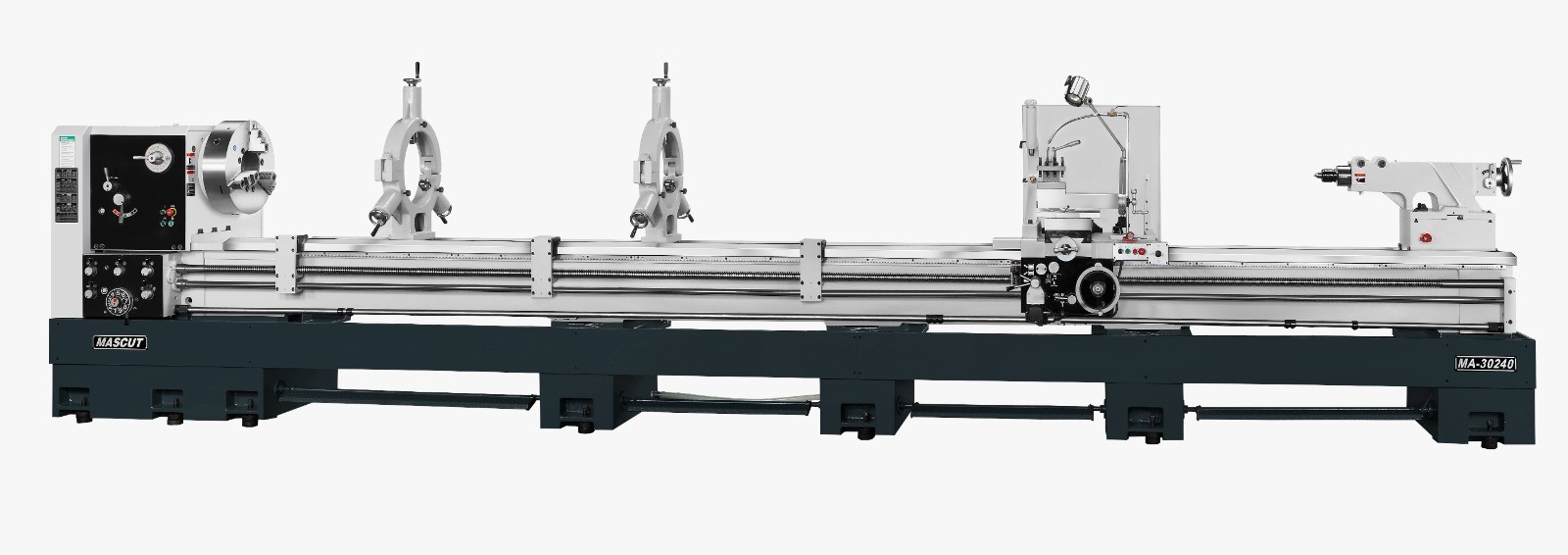

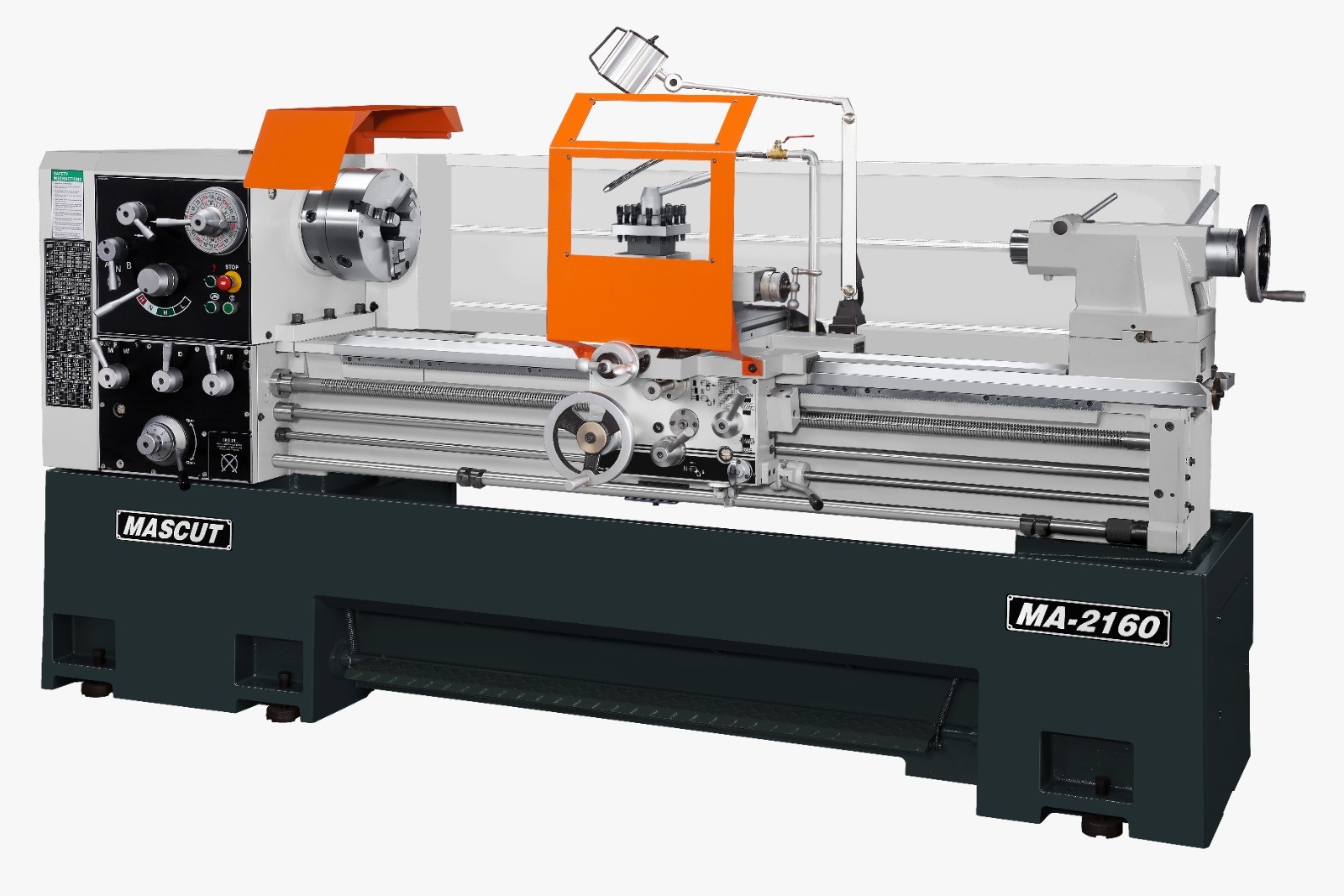

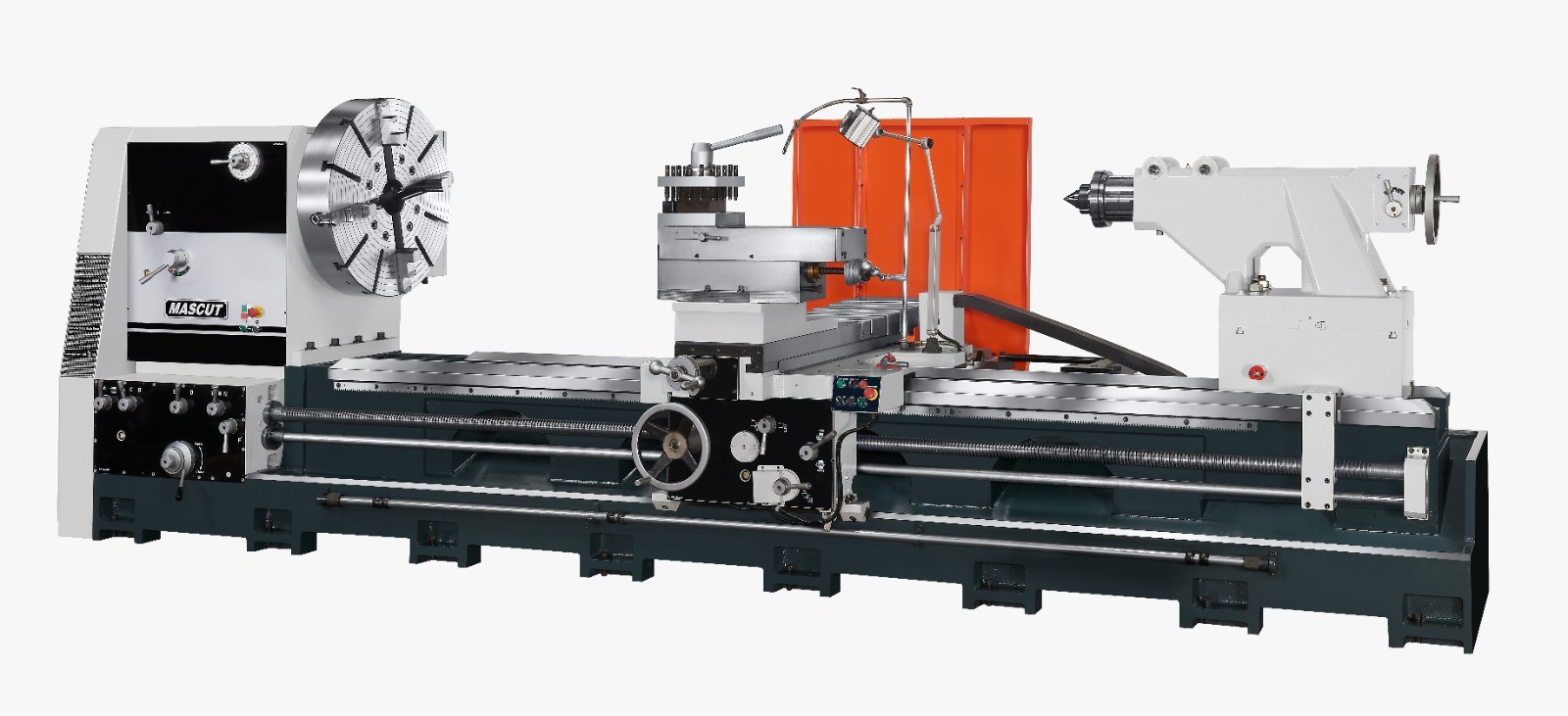

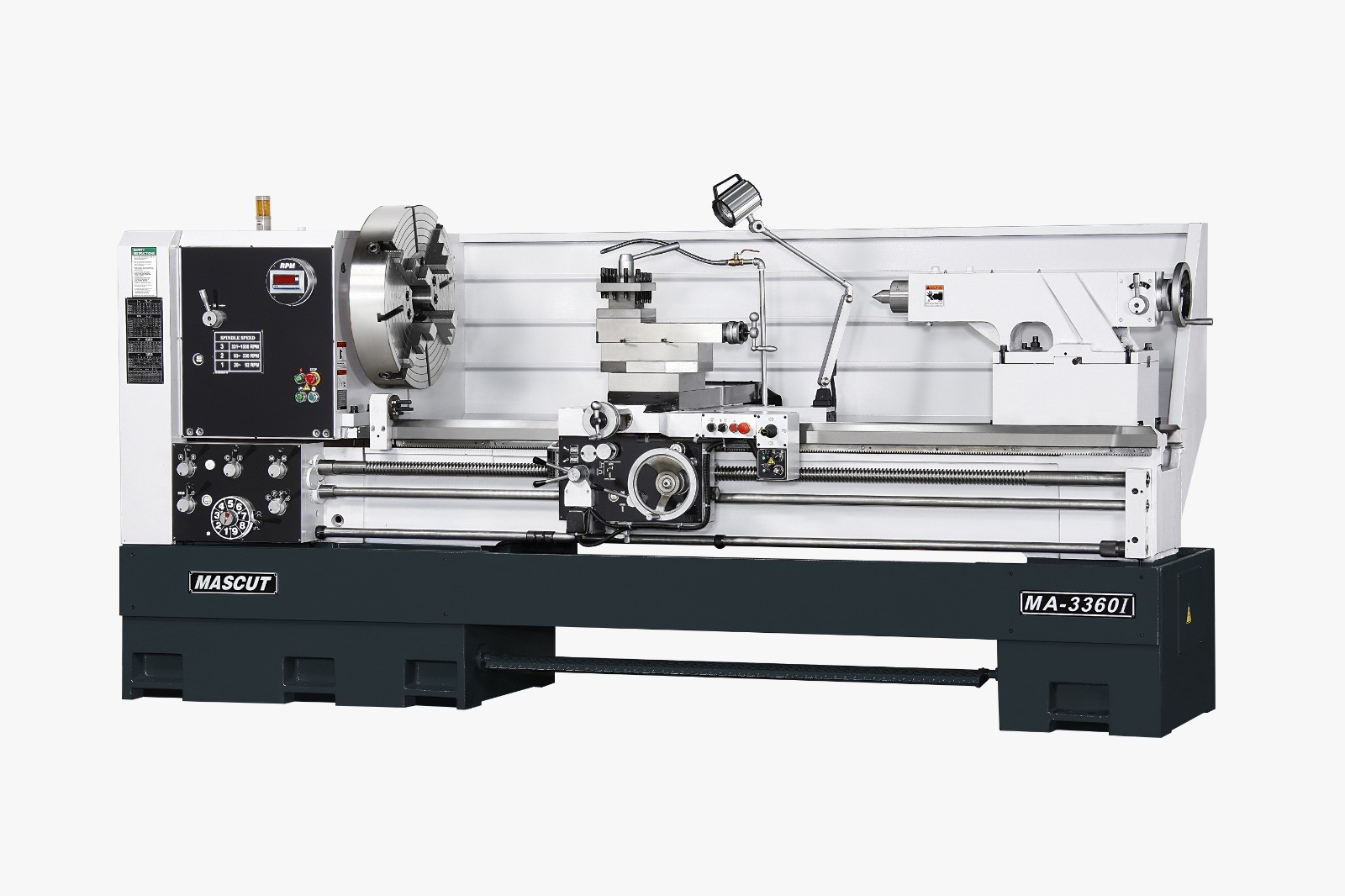

RANGE OF MACHINERIES

We offer a comprehensive range of conventional precision lathe machines designed to meet the toughest machining needs. From the versatile MA 1700 to MA-S6000, our collection covers a wide array of specifications to ensure you find the perfect machine for your projects.

Key Specifications:

♦Center Height: Choose from models with center heights ranging from 230 mm to 750 mm, accommodating various workpiece sizes.

♦Swing Over Bed: Our lathes offer swing-over bed options from 460 mm to 1600 mm, providing flexibility for different diameters.

♦Swing Over Gap: For even larger workpieces, the swing over gap ranges from 630 mm to 1950 mm.

♦Swing Over Cross Slide: Enjoy swing over cross slide capabilities from 285 mm to 1100 mm for enhanced versatility in turning operations.

♦Distance Between Centers: Our machines accommodate distances between centers from 550 mm to 7200 mm, ideal for both small and large workpieces.
♦Width of Bed: With bed widths ranging from 300 mm to 625 mm, our lathes offer stability and support for accurate machining.

♦Spindle Bore: Select from spindle bore ranging from 58 mm (2 “) to optional 305 mm (12”) for handling various materials and sizes

Our conventional precision lathes are built to provide exceptional performance, accuracy, and durability. Explore our range to find the ideal machine that fits your specific needs and enhances your machining capabilities. Feel free to contact us if you need any assistance or additional information.
