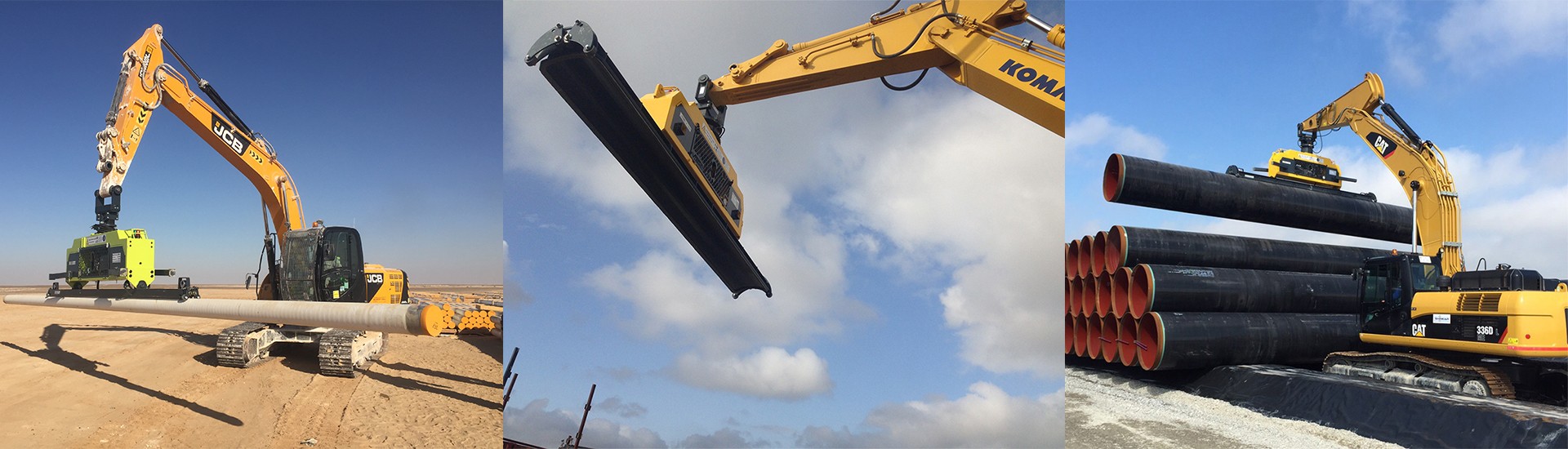

Pipe Vacuum Lifting Banner

Pipe Vacuum Lifting

OUR PRODUCTS HOME

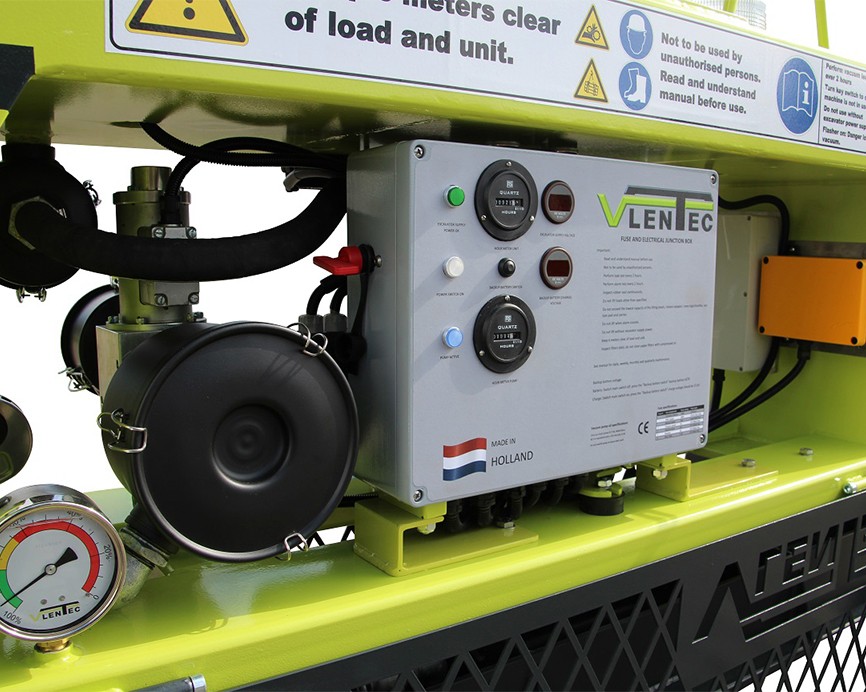

ED125N junction box side Gauge Pipe Vacuum Lifting Pipe Vacuum Lifting Pipe Vacuum Lifting Pipe Vacuum Lifting Pipe Vacuum Lifting Pipe Vacuum Lifting 3 Pipe Vacuum Lifting 4 Pipe Vacuum Lifting 6

Pipe Vacuum Lifting Machine

Lifiting & manipulation

By: Vlentec

NetherlandNetherland

Express Interest
Product Highlights

Vlentec has a range of light and heavy-duty vacuum pipe lifters to drastically increase worksite safety and cut pipe handling time by a factor of 10! By using a vacuum pipe lifter, attributes such as hooks, magnets, chains, and slings are replaced by one or more suction pads to lift Pipes. The suction pads are available for all pipe dimensions. Our vacuum lifters are outstanding for lifting steel, composite, concrete, and coated pipes. All vacuum pipe lifters are equipped with a vacuum tank. By...

Vlentec has a range of light and heavy-duty vacuum pipe lifters to drastically increase worksite safety and cut pipe handling time by a factor of 10! By using a vacuum pipe lifter, attributes such as hooks, magnets, chains, and slings are replaced by one or more suction pads to lift Pipes. The suction pads are available for all pipe dimensions.
Our vacuum lifters are outstanding for lifting steel, composite, concrete, and coated pipes. All vacuum pipe lifters are equipped with a vacuum tank. By opening a valve, a vacuum arises between the suction pad and the pipe.
Because of the pressure difference between the inside and outside, the suction pad will 'suck' itself against the load. The lifting capacity is determined by the model lifting beam and the size of the suction pad.

Standard Features

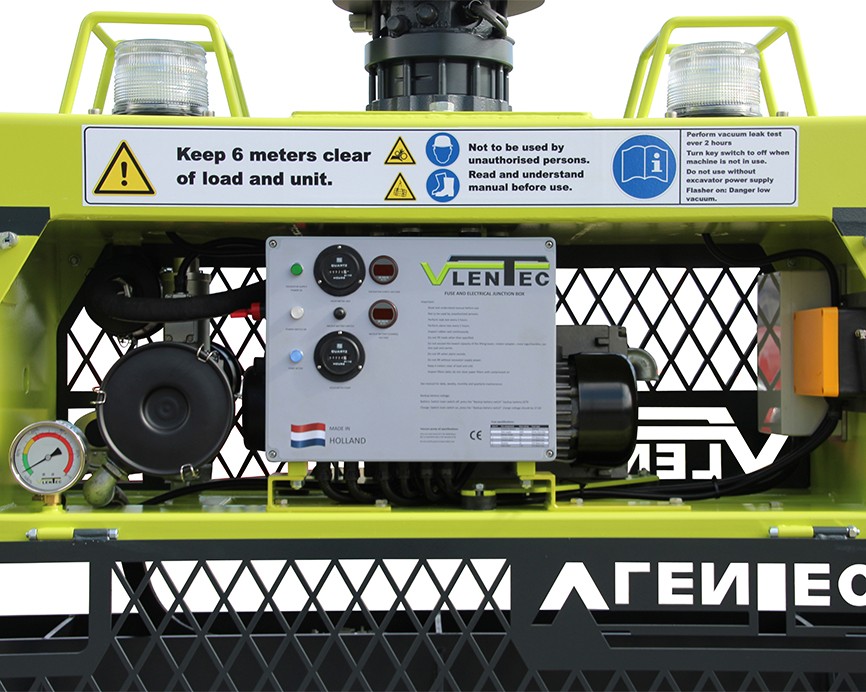

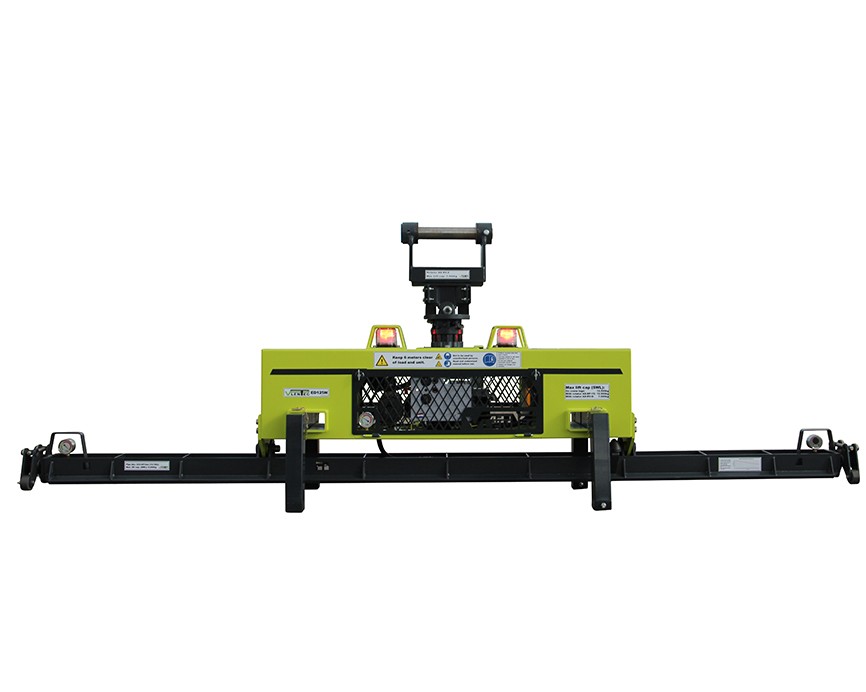

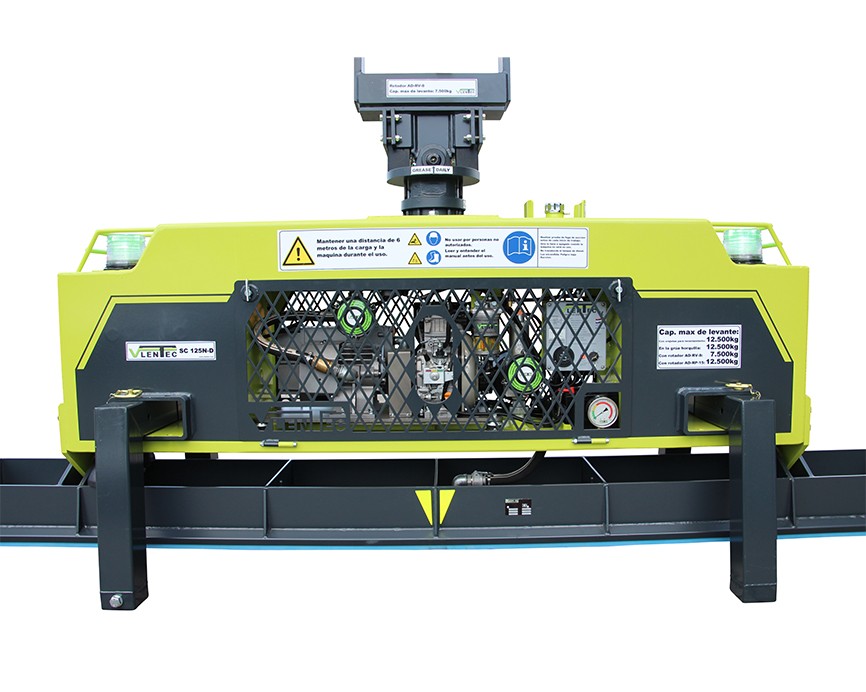

The lifter has an aesthetically designed one-unit beam, which includes a vacuum tank and fuel tank while giving optimum protection to the engine, pump, and switchgear.

The beam is compact and has a low weight.

No external wiring or piping except for the 2 hydraulic rotator hoses. With the electrically powered unit, a heavy-duty cable runs over the excavator's arm.

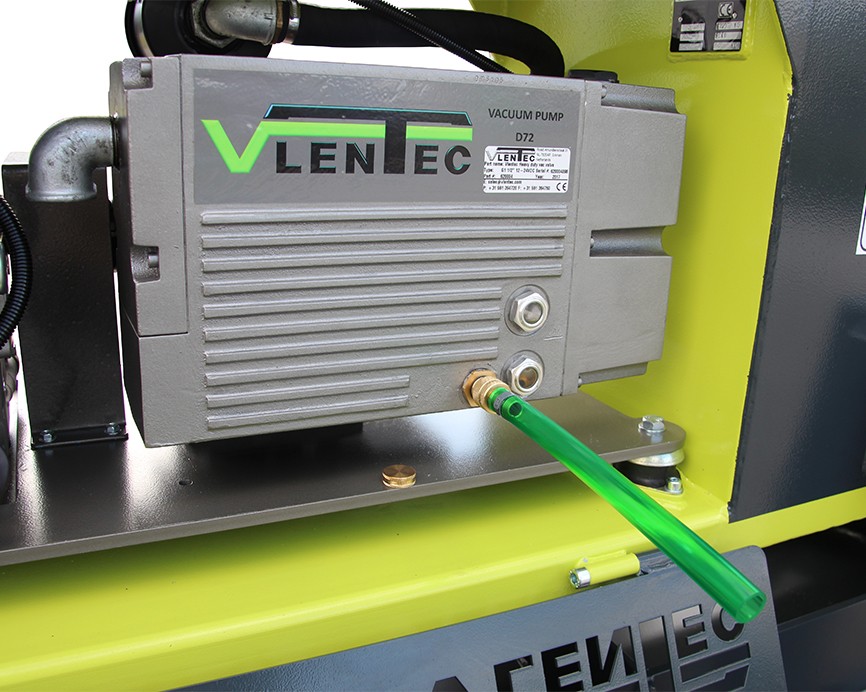

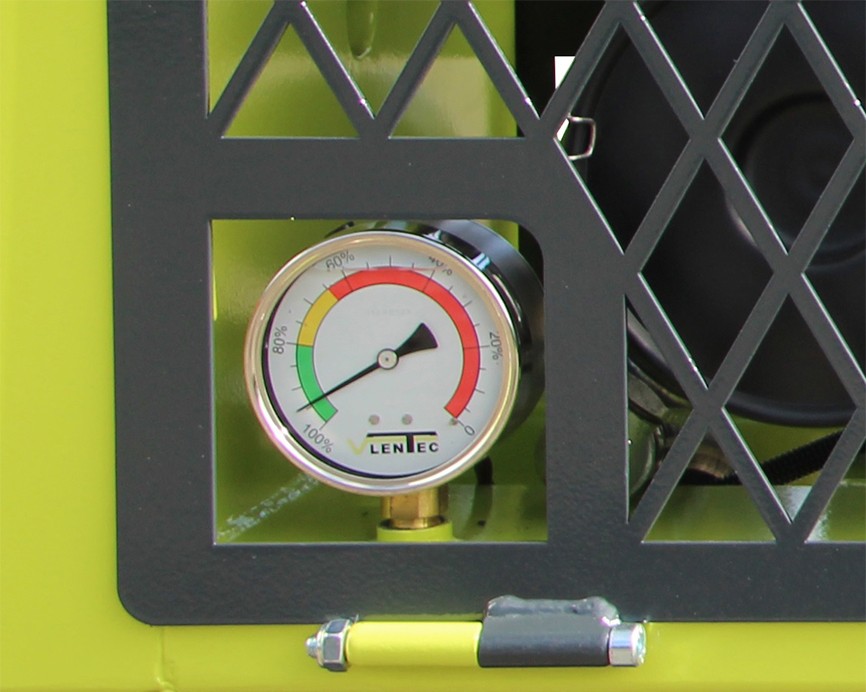

The diesel motor has a capacity of only 3,1 KW with the resulting low fuel use. The specially designed vacuum pump is coupled directly to the motor and because it’s well-matched it can pump an amazing 73 M3/H with a high-end vacuum of approx. 1mbar (99% vacuum).

You are enjoying the results of 35 years of hands-on experience.

Advantages

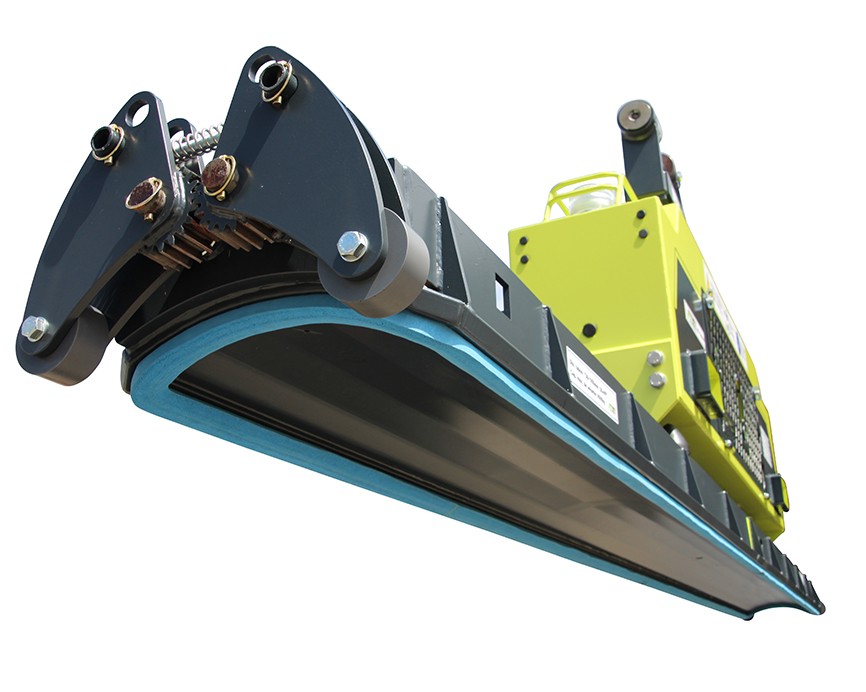

No damage to the pipe surface; the lifting force is spread over a large surface and the only contact with the pipe is a soft rubber seal.

Highly safe

10x faster pipe handling than pipe hooks or slings.

Less staff is required.

Works in all environments; wind, dust, heat, rain, snow, or ice is not an issue.

Skids are not required when stockpiling.

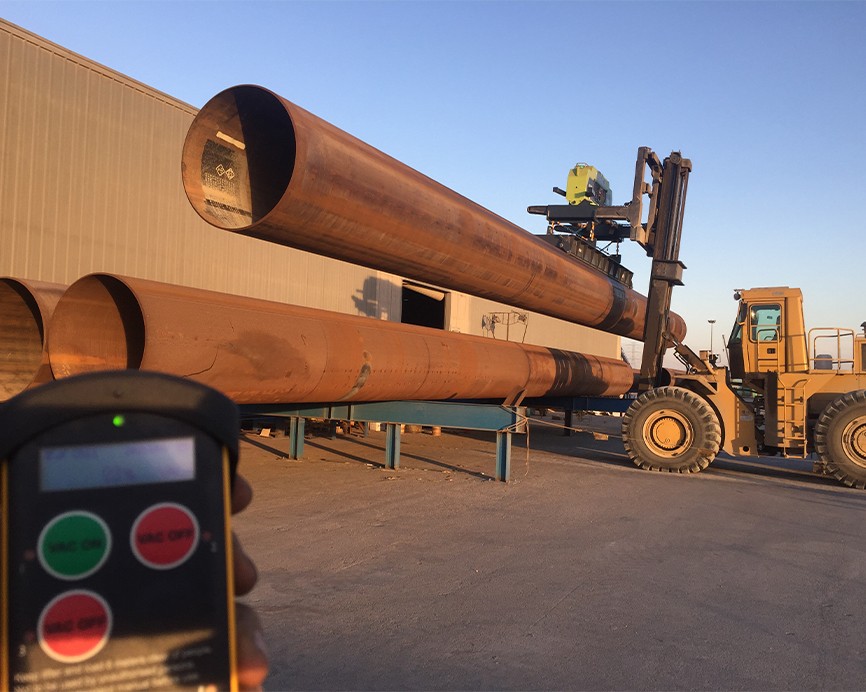

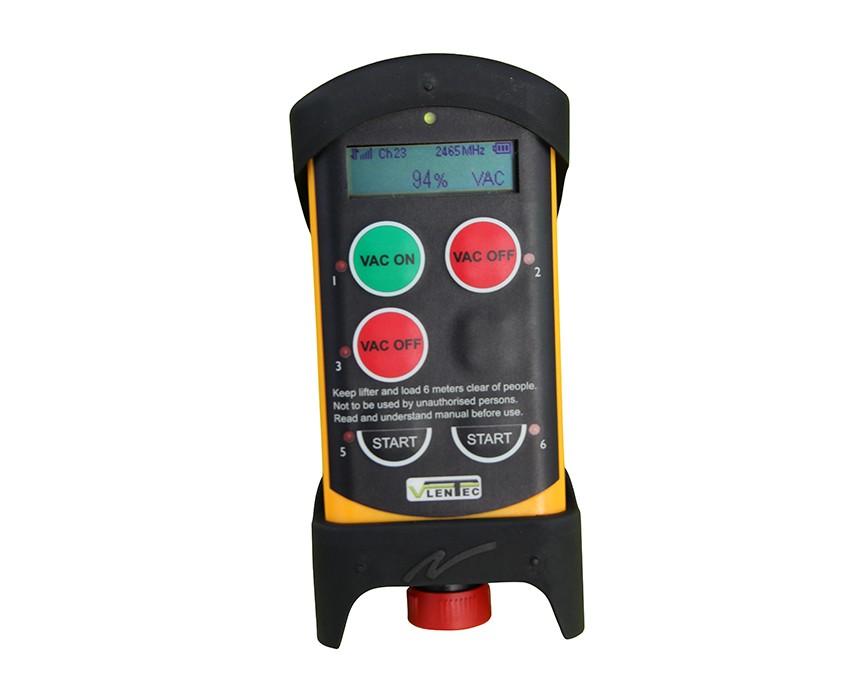

Wireless remote-controlled, no tangled wires.


Applications
event

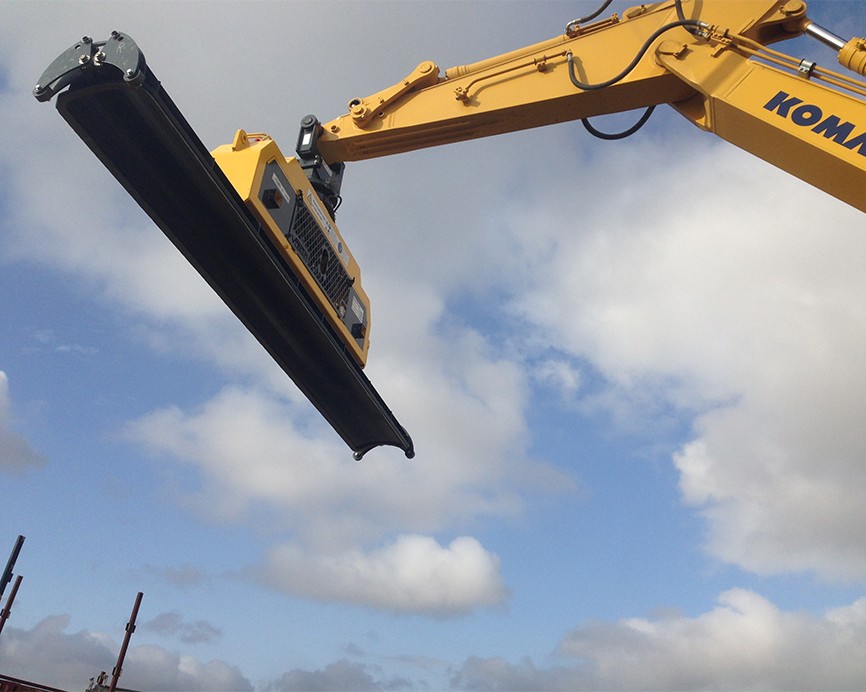

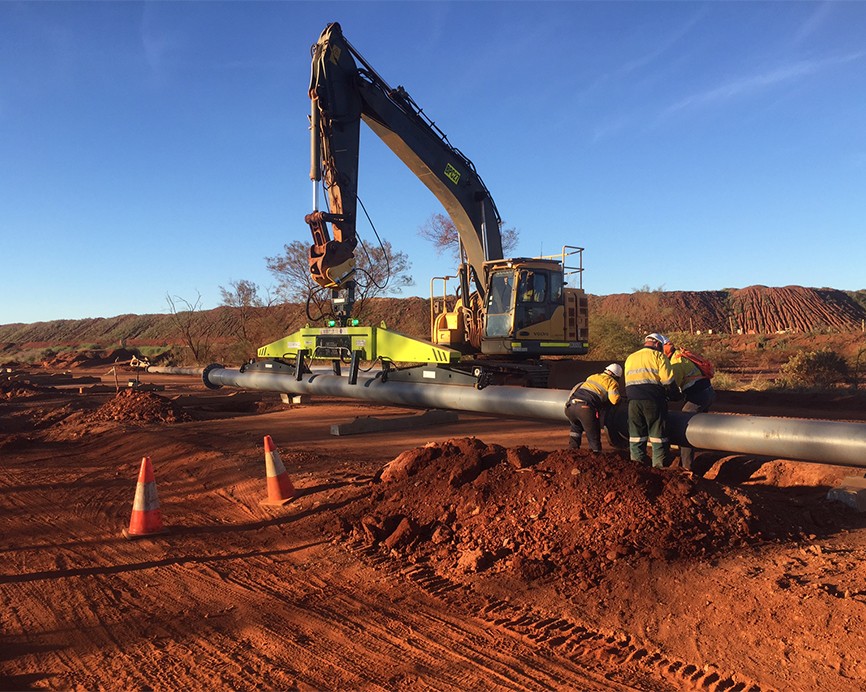

Extensions for handling long flexible pipes

event

Small diameter pipes can be handled with ease

event

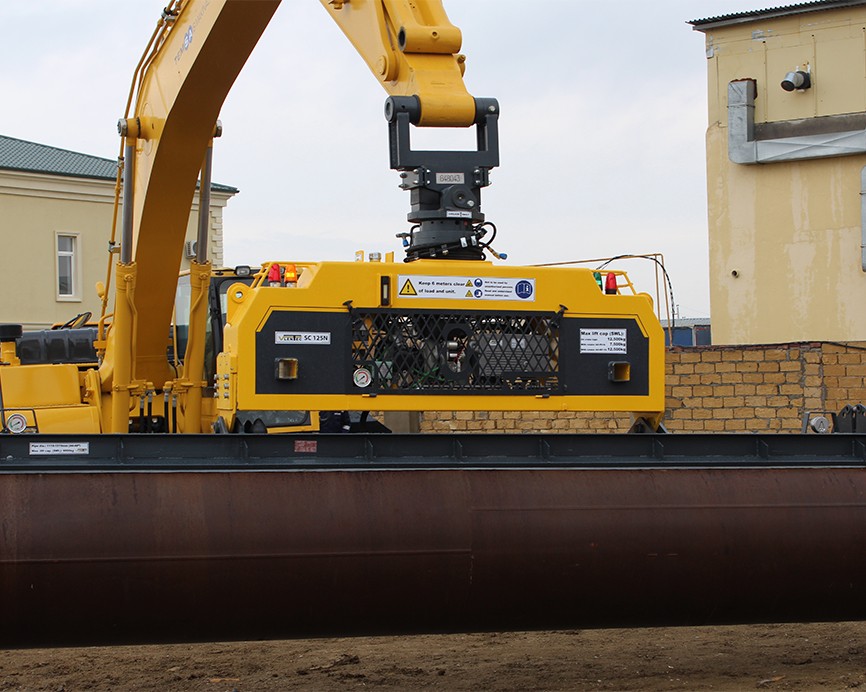

Safe operation even on rusted surface

event

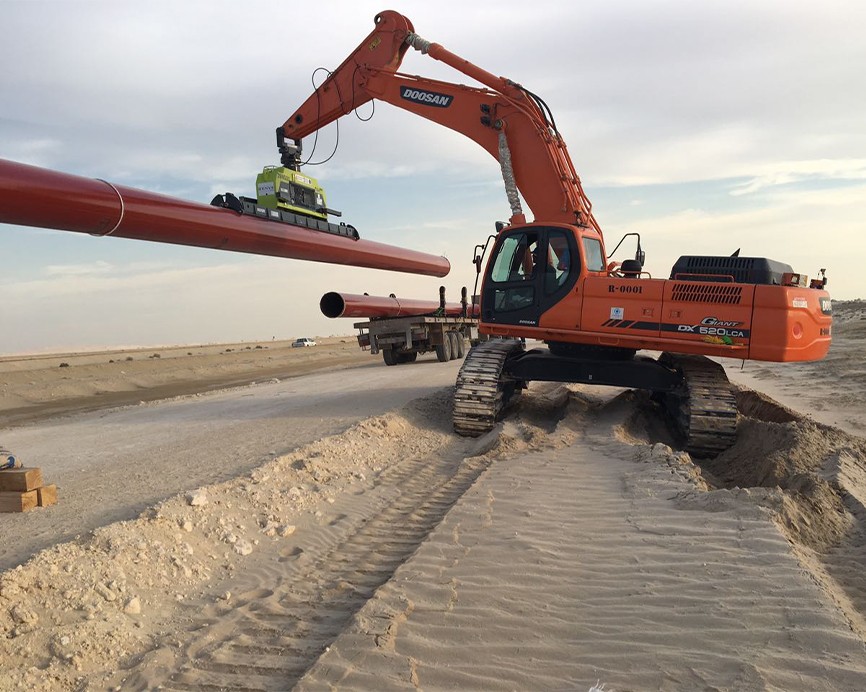

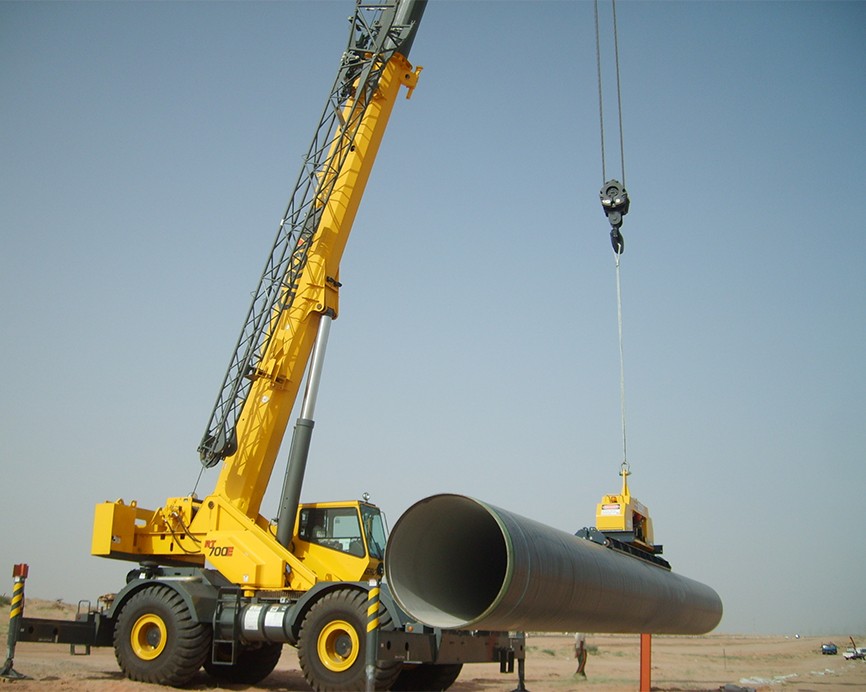

Numerous installation in Middle East

event

Quick change suction pads to fit various diameters

event

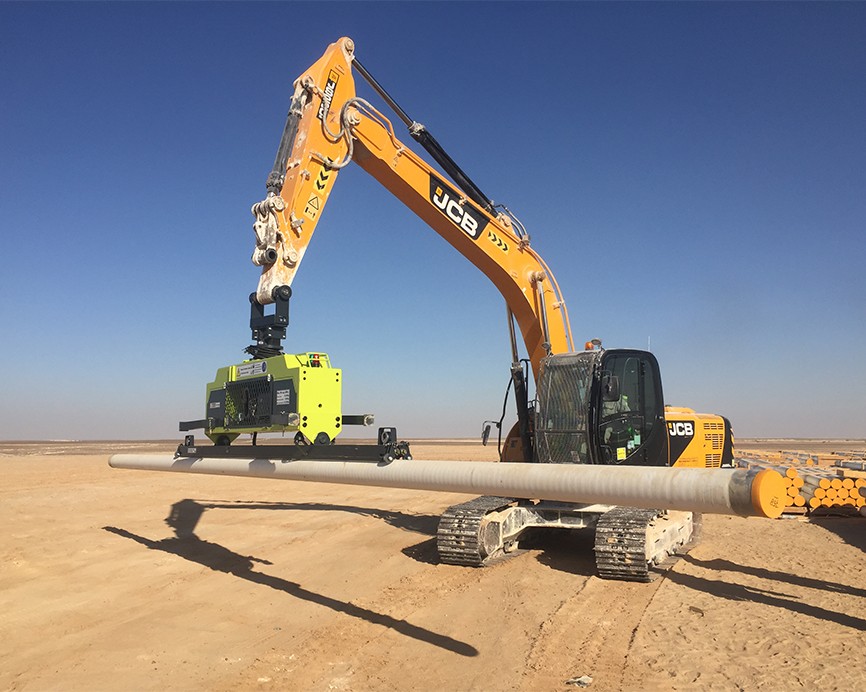

Suitbale for GRP Pipes

event

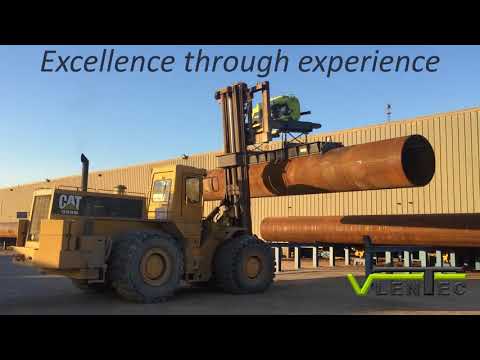

Easy handling of pipes at yards

event

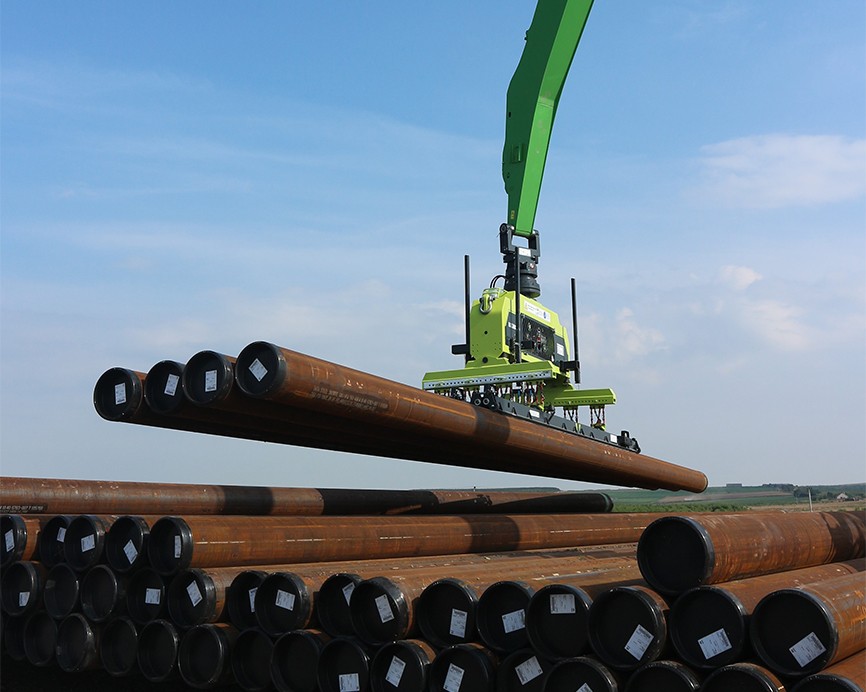

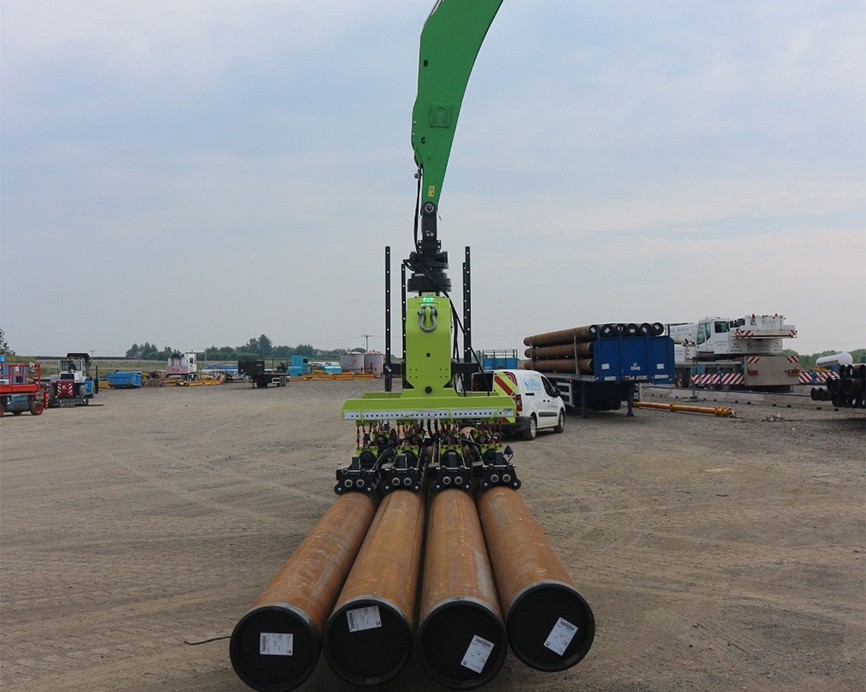

Option to lift multiple pipes at once

event

Used for lifting Plastic Pipes

event

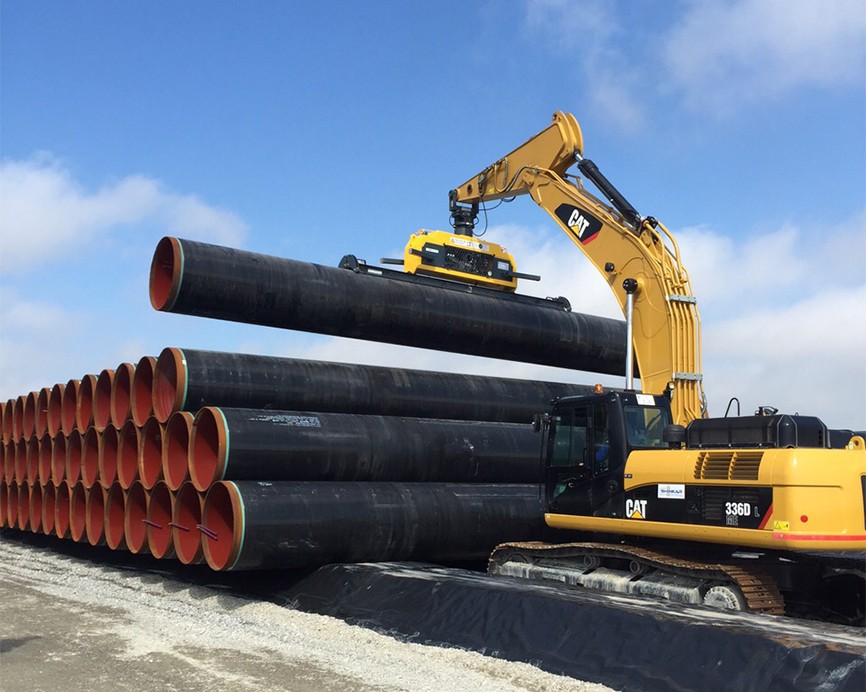

With rotators for easy pipe allignment

event

Design independent of Excavator brand

event

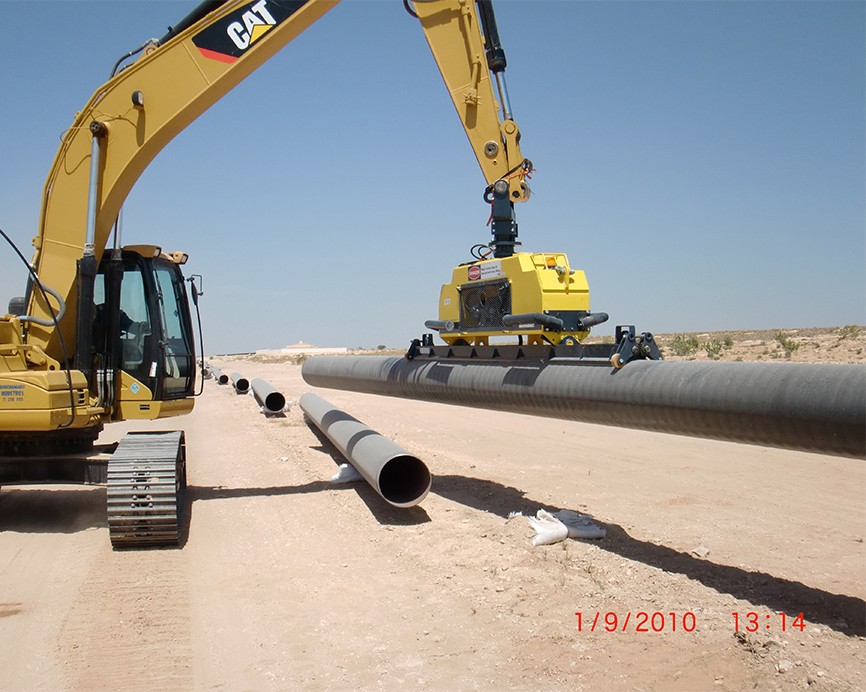

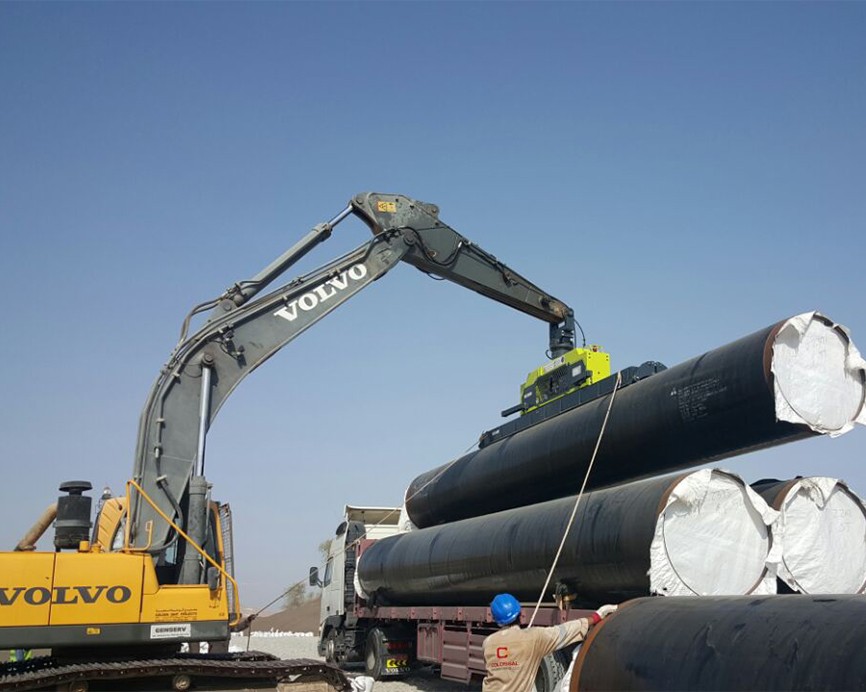

Fastest handling machine for pipe installation

event

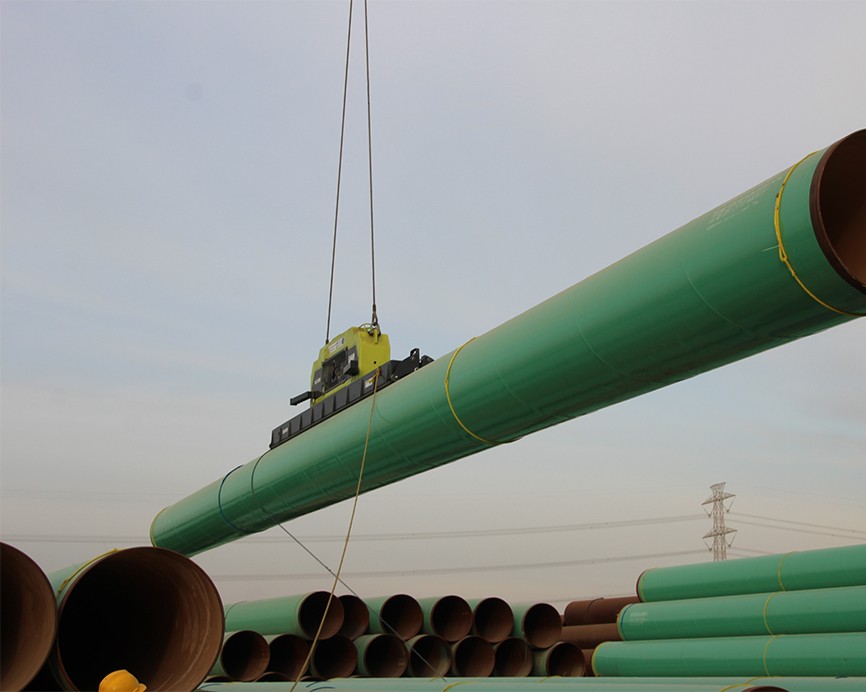

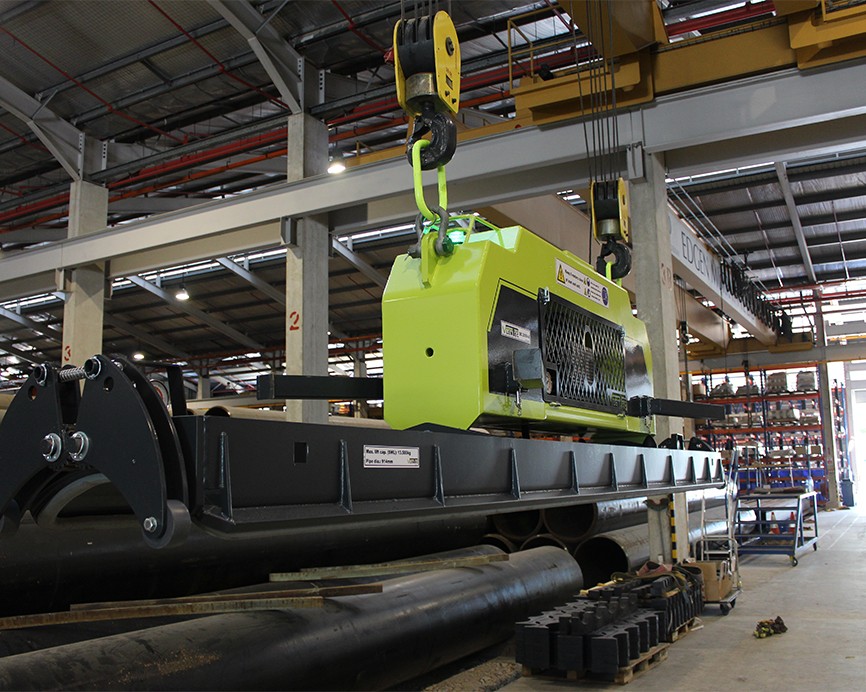

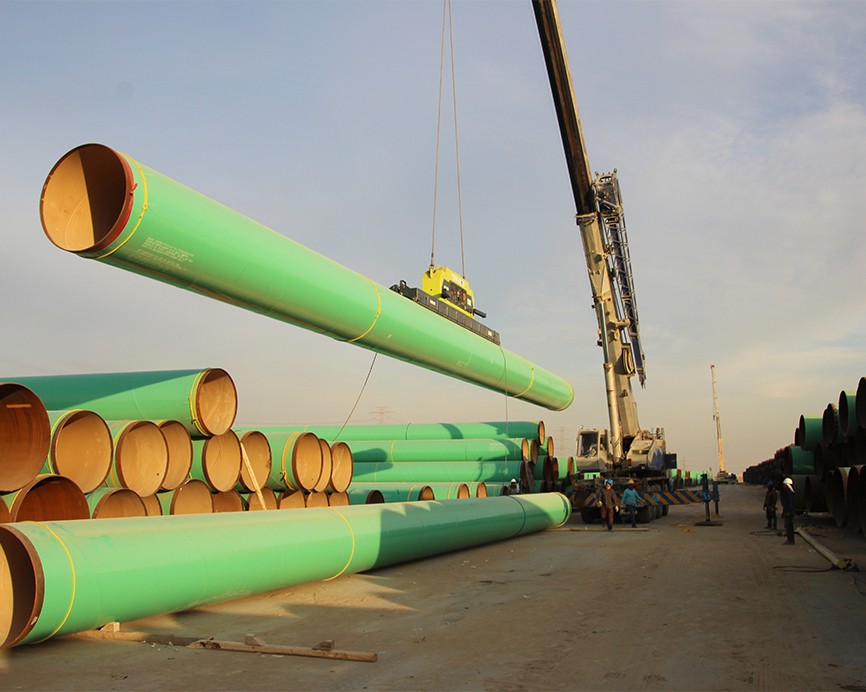

For use with cranes

event

Easy to use

event

Easy loading or unloading of pipes

event

Can lift painted pipes

event

Built for extreme site conditions
