SPIDER CRANE

Jekko is an incredibly small piece of technology designed primarily to solve problems for crane operators when handling and lifting loads on building sites. This is a tale of Italian brilliance—precise and potent, built to conquer any obstacle. can lighten the situation.

When a task appears excessively challenging, the obstacles appear insurmountable. But if all the loads are lifted at once, they all become lighter. Because Jekko micro cranes are made to descend alongside you as you finish a new activity, they can raise you up to any weight.

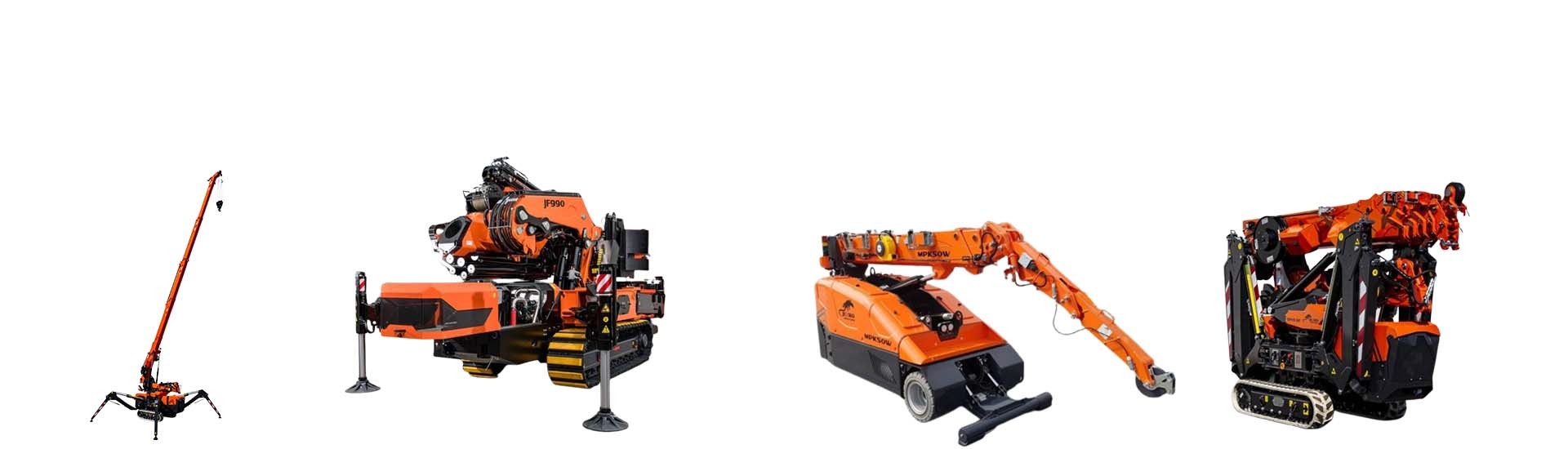

The JEKKO ranges from Mini Crane SPX, JF Articulated & Mini Picker MPK.

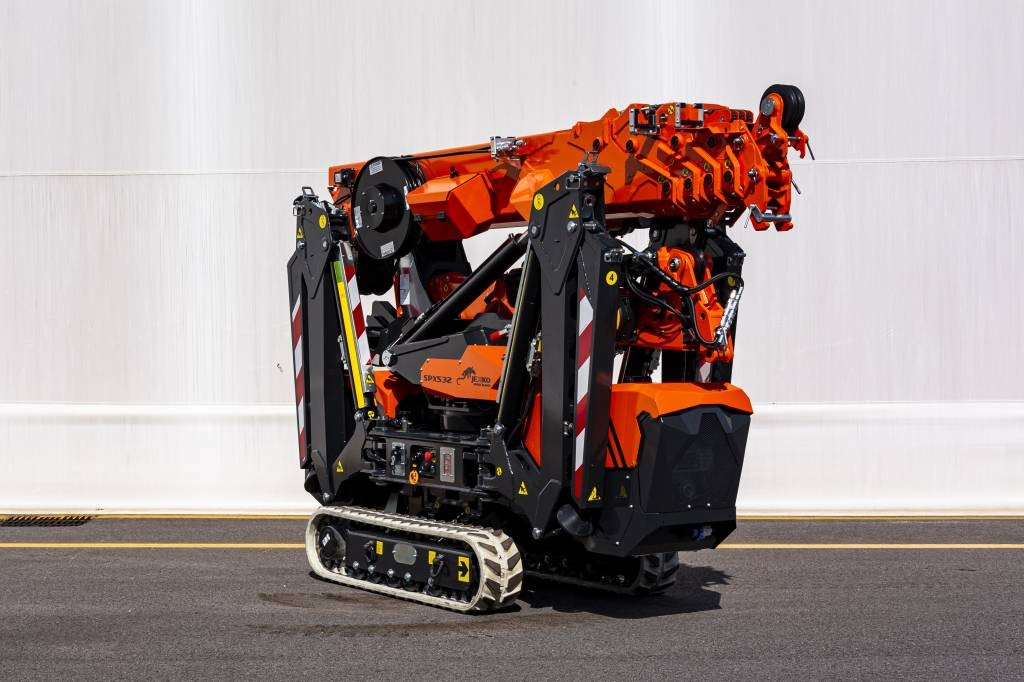

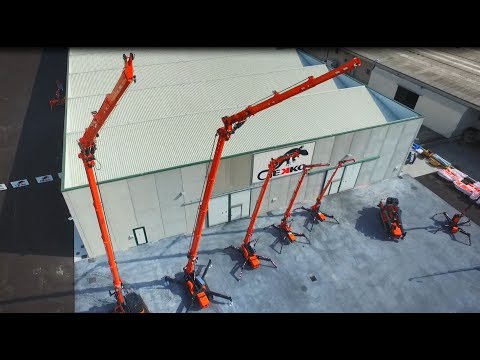

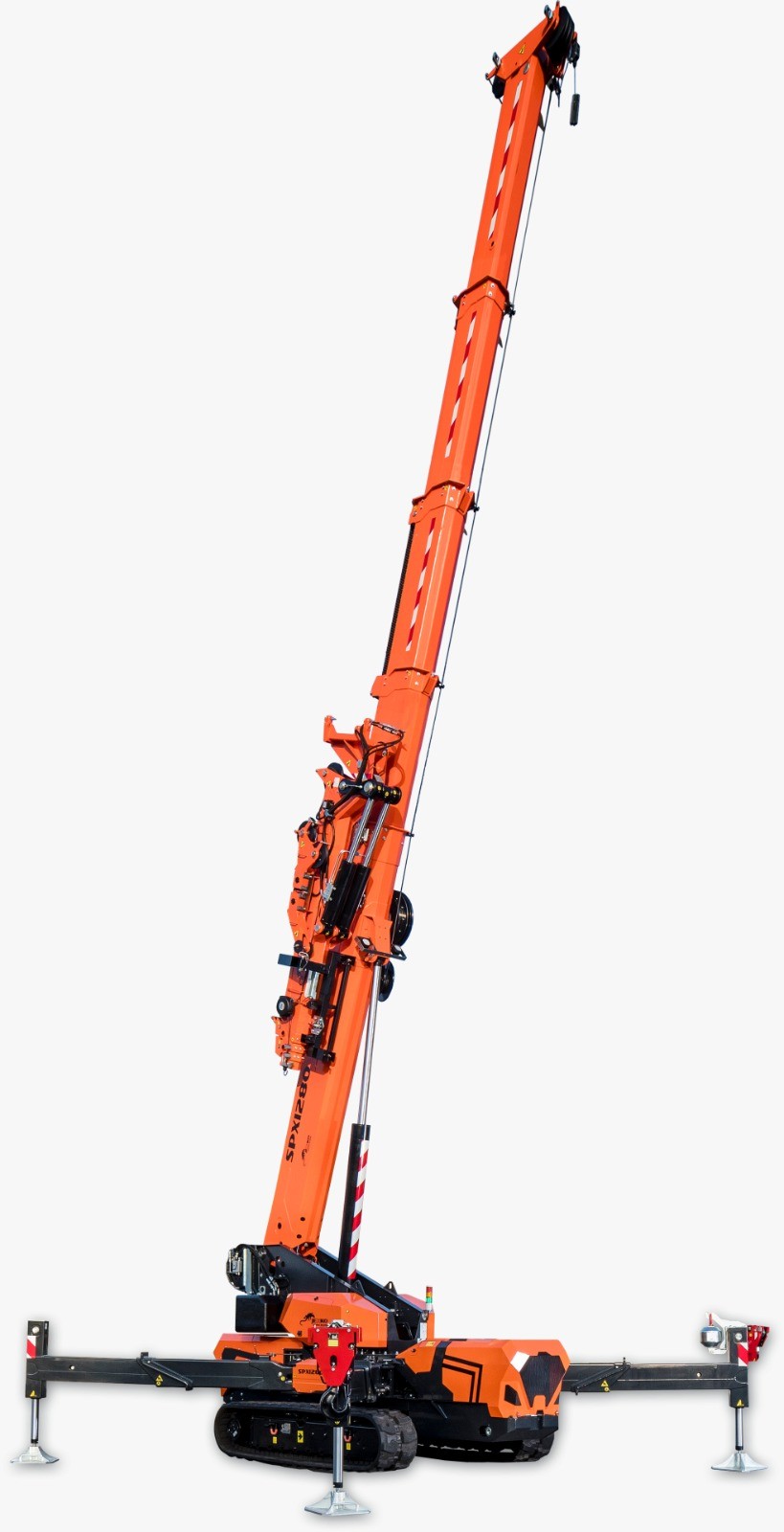

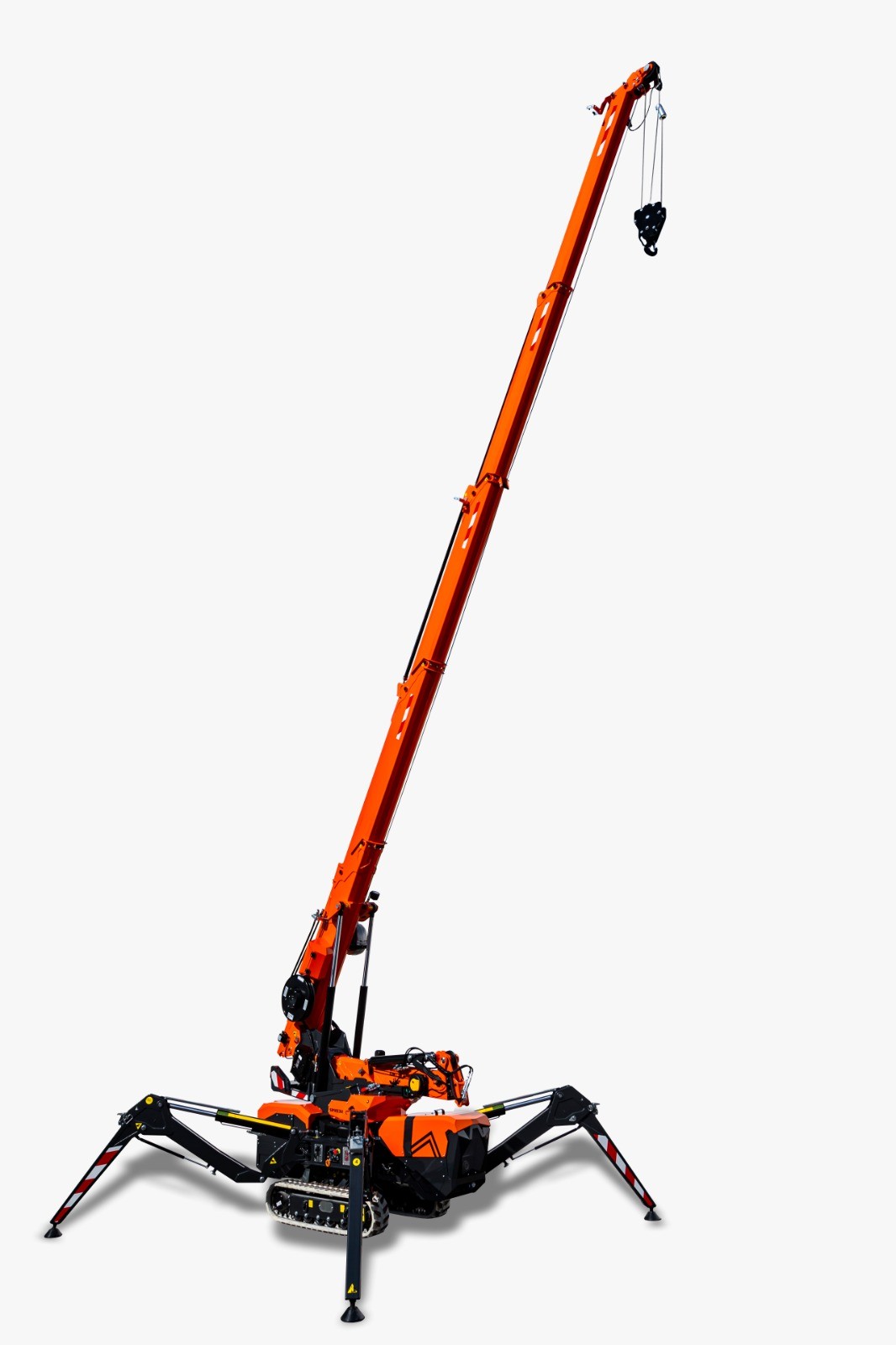

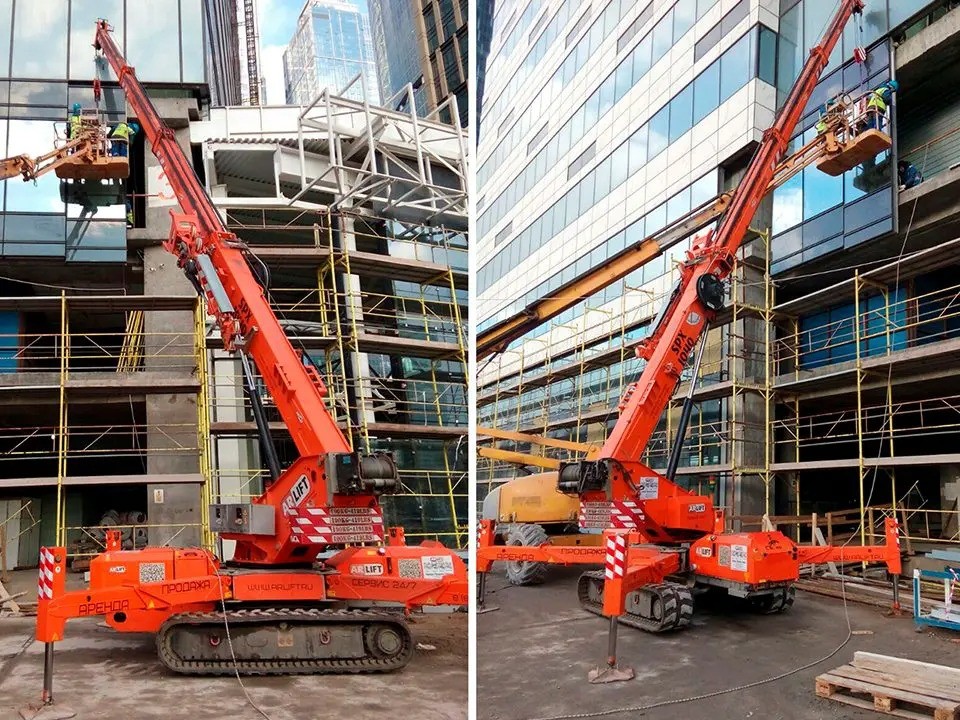

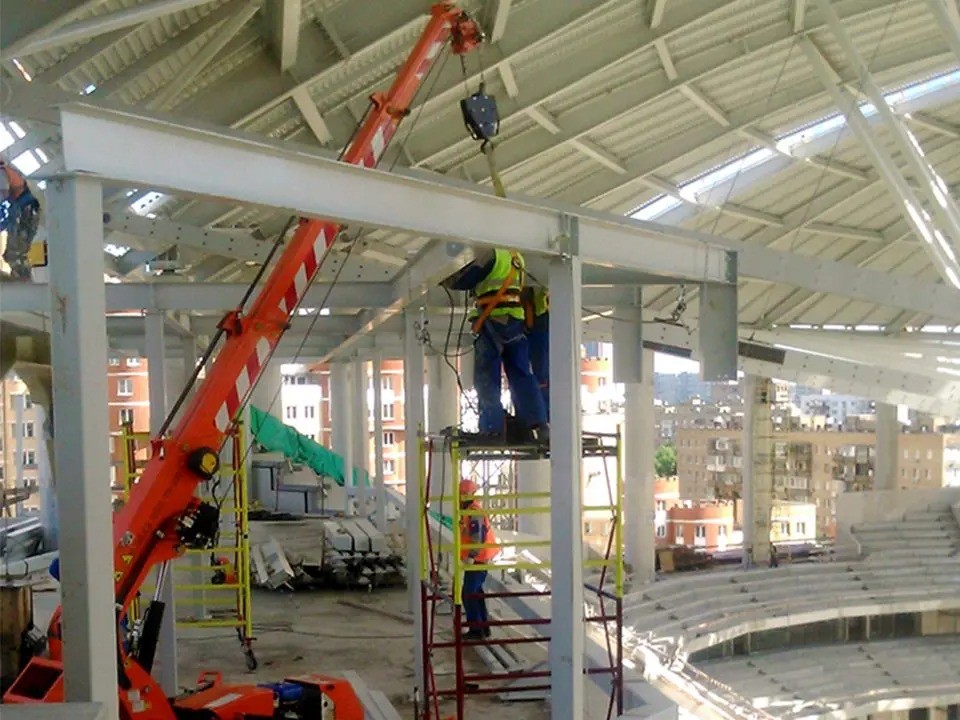

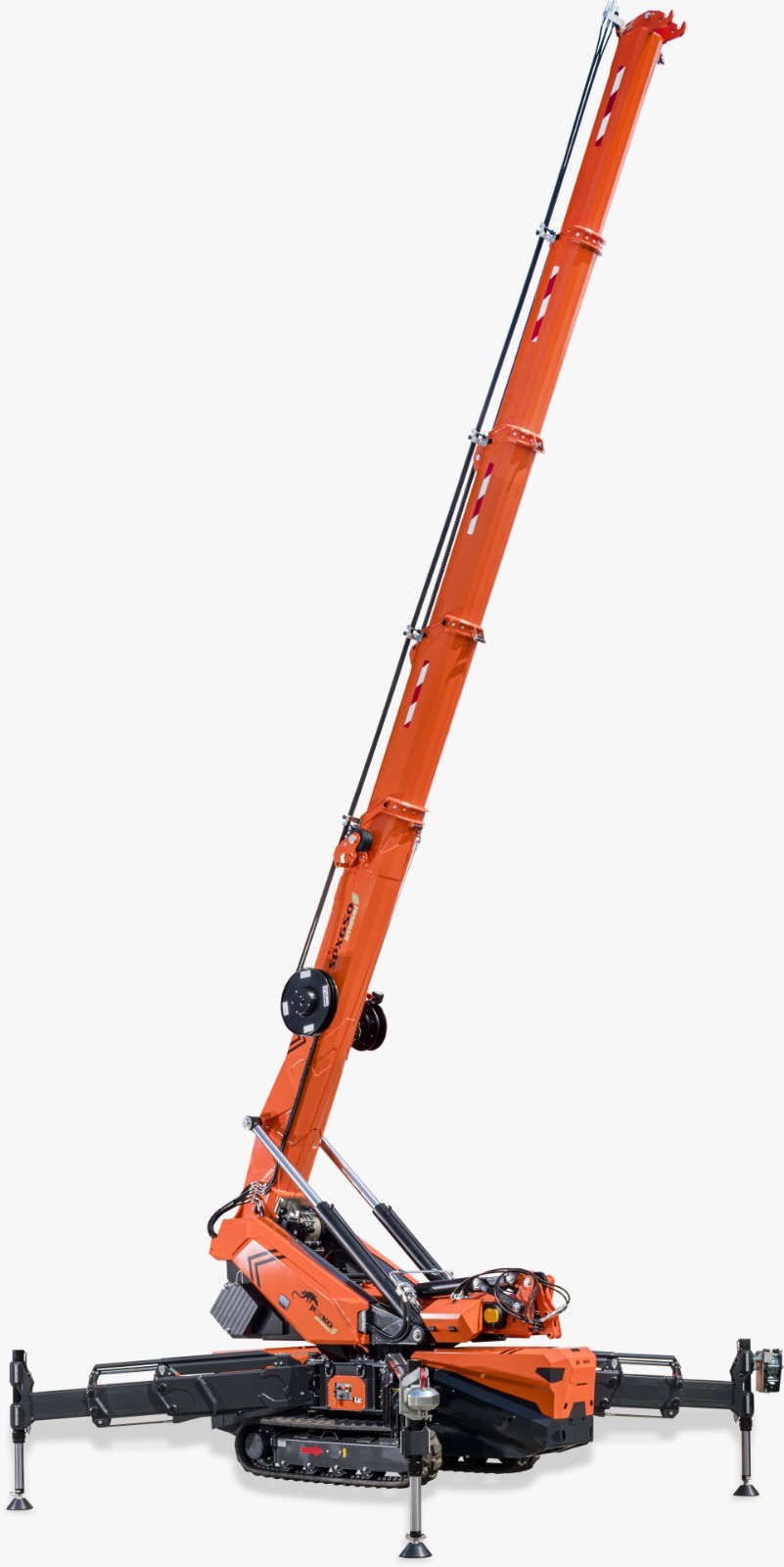

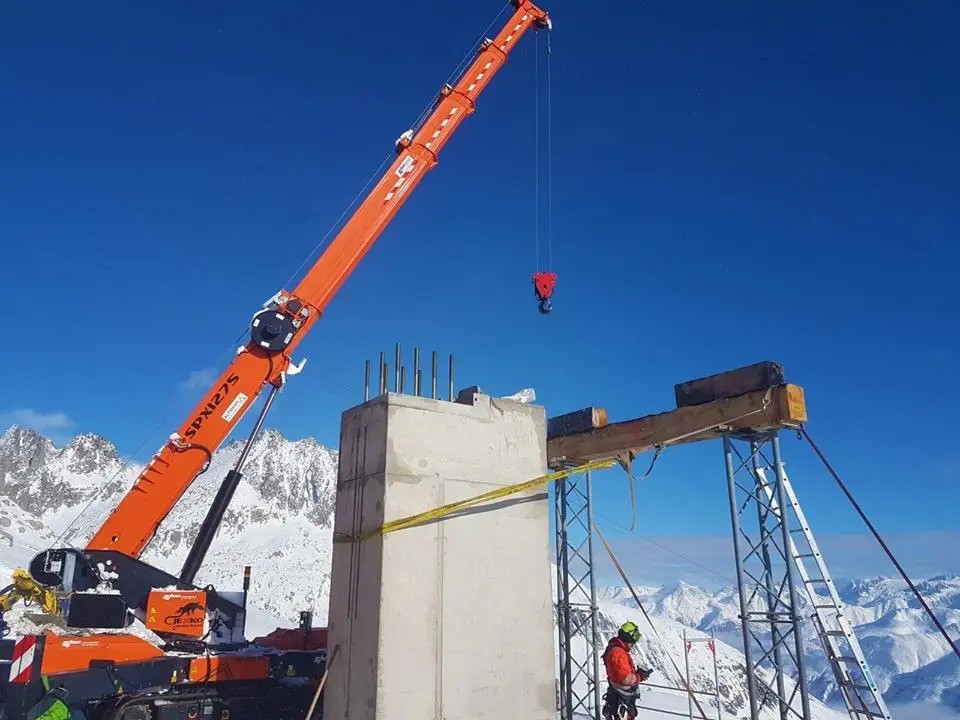

Designed for impossibly difficult construction sites are SPX Mini Cranes. The line of tiny cranes with telescopic arms, crawlers, and stabilizers.

These compact telescopic crawler cranes with stabilizers are built to handle tasks that seem nearly impossible. They are easily maneuverable in restricted areas like the top of a skyscraper and can be moved through tight and challenging environments like stairs, slopes, and hallways. Jekko small cranes offer excellent lifting force and a high degree of safety for every building site; they don't require lengthy setup times and can be put into service in a matter of minutes.

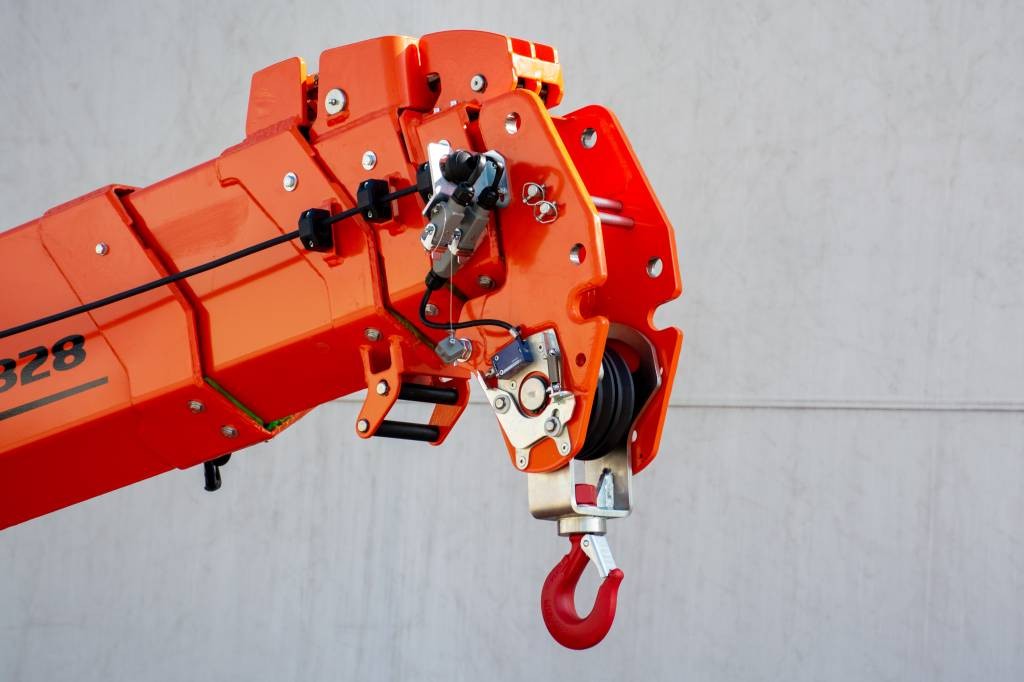

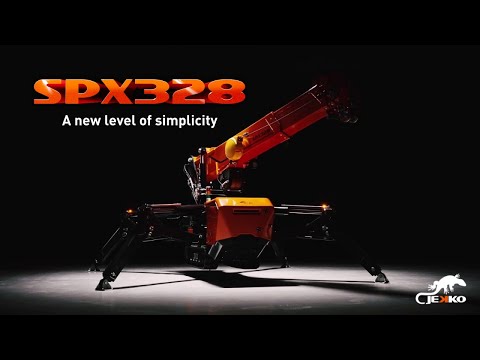

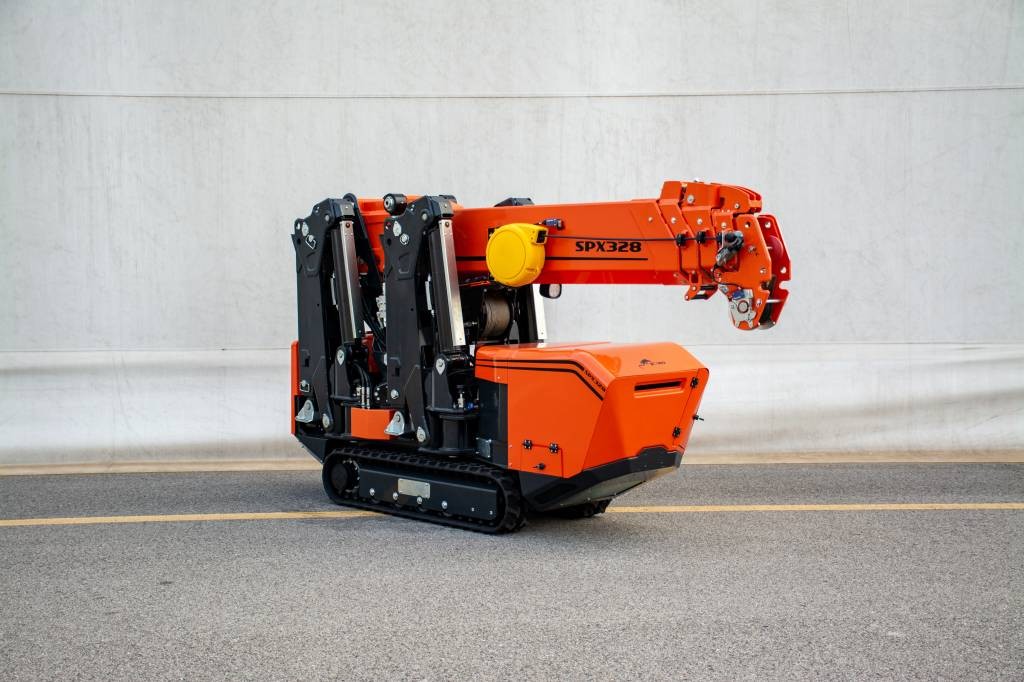

The SPX328 mini crane is a state-of-the-art crane in terms of user experience, designed to make sure that everyone can operate with ease and accessibility. The maximum load capacity of the SPX328 mini crane is 2800 kg, and its maximum height and radius are 12.8 meters and 10.4 meters, respectively.

The SPX532 mini crane is most intuitive mini crane ever, with a cutting-edge stability system. A new generation of mini cranes with superior performance guaranteed. There are diesel and electric models of this crane. With a maximum height of 17.3 meters and a maximum radius of 14.8 meters, the maximum load capacity is 3200 kg.

The SPX650 mini crane is multifaceted 5-ton mini crane that concentrates Jekko's most advanced technical solutions. There are diesel and electric models of this crane. With a maximum height of 23.6 meters and a maximum radius of 20 meters, the maximum load capacity is 5000 kg.

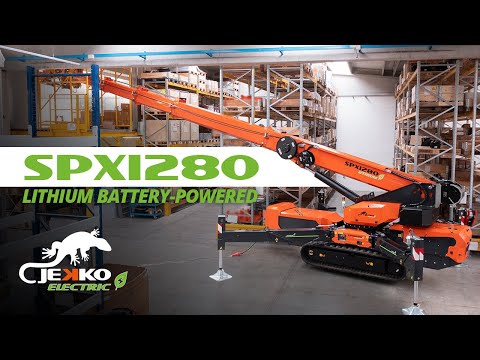

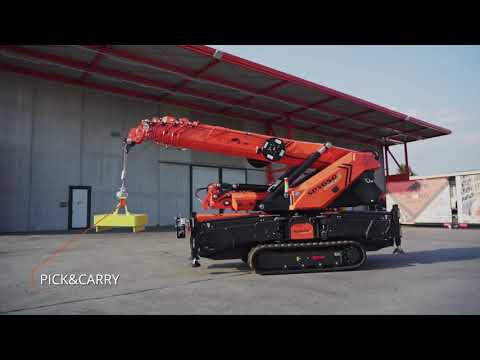

The SPX1280 mini crane smaller stability area, an 8-ton maximum capacity, a 26.6-meter maximum working height, 2 tons in pick-and-carry, and many other features: a compact crane with special qualities that set it apart from competitors in the market.

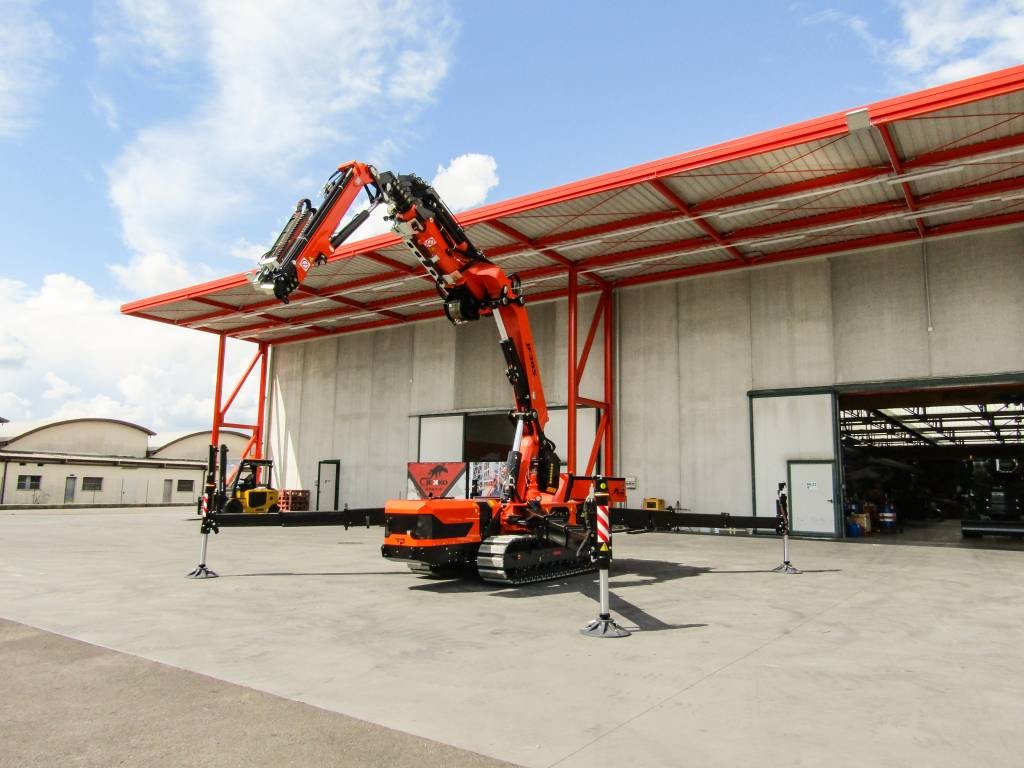

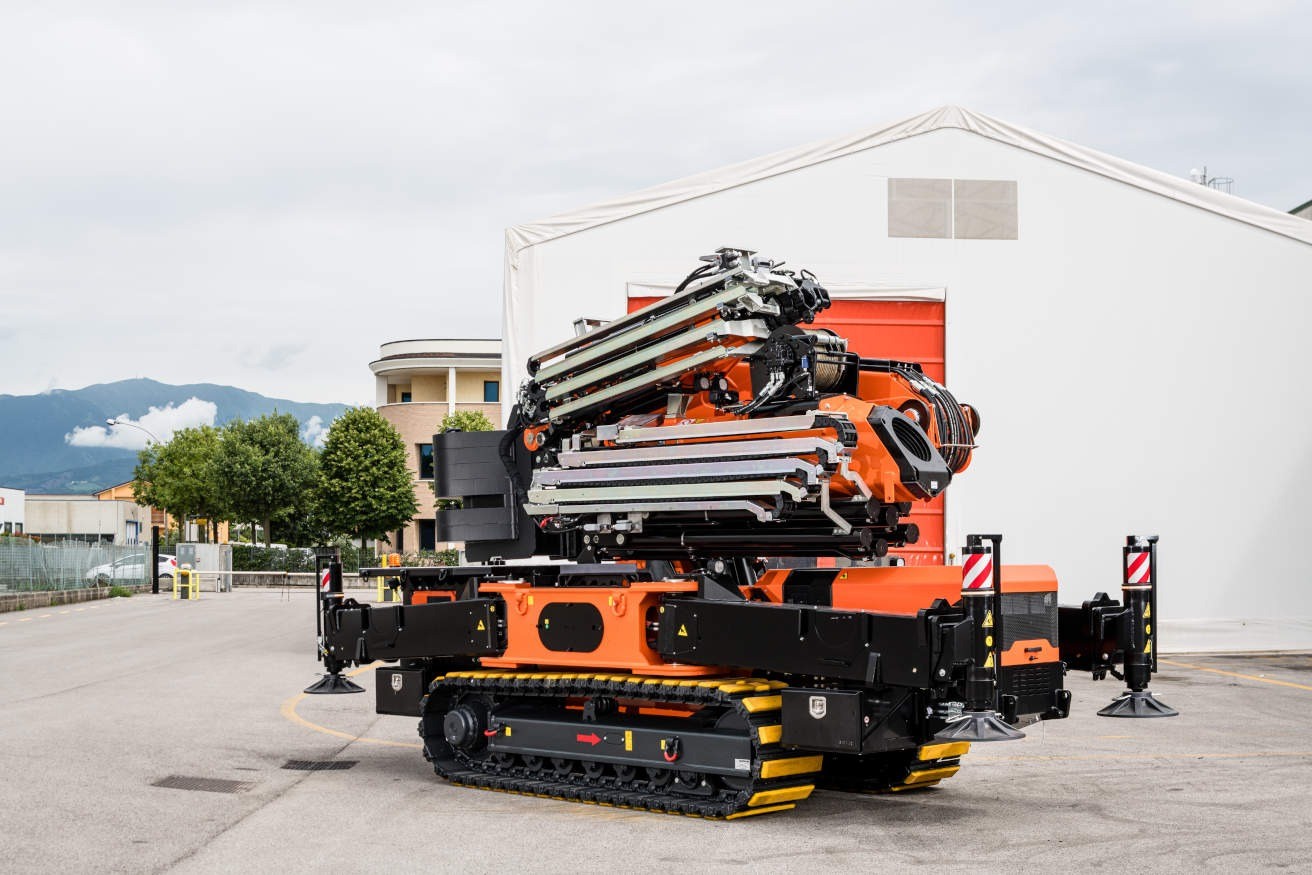

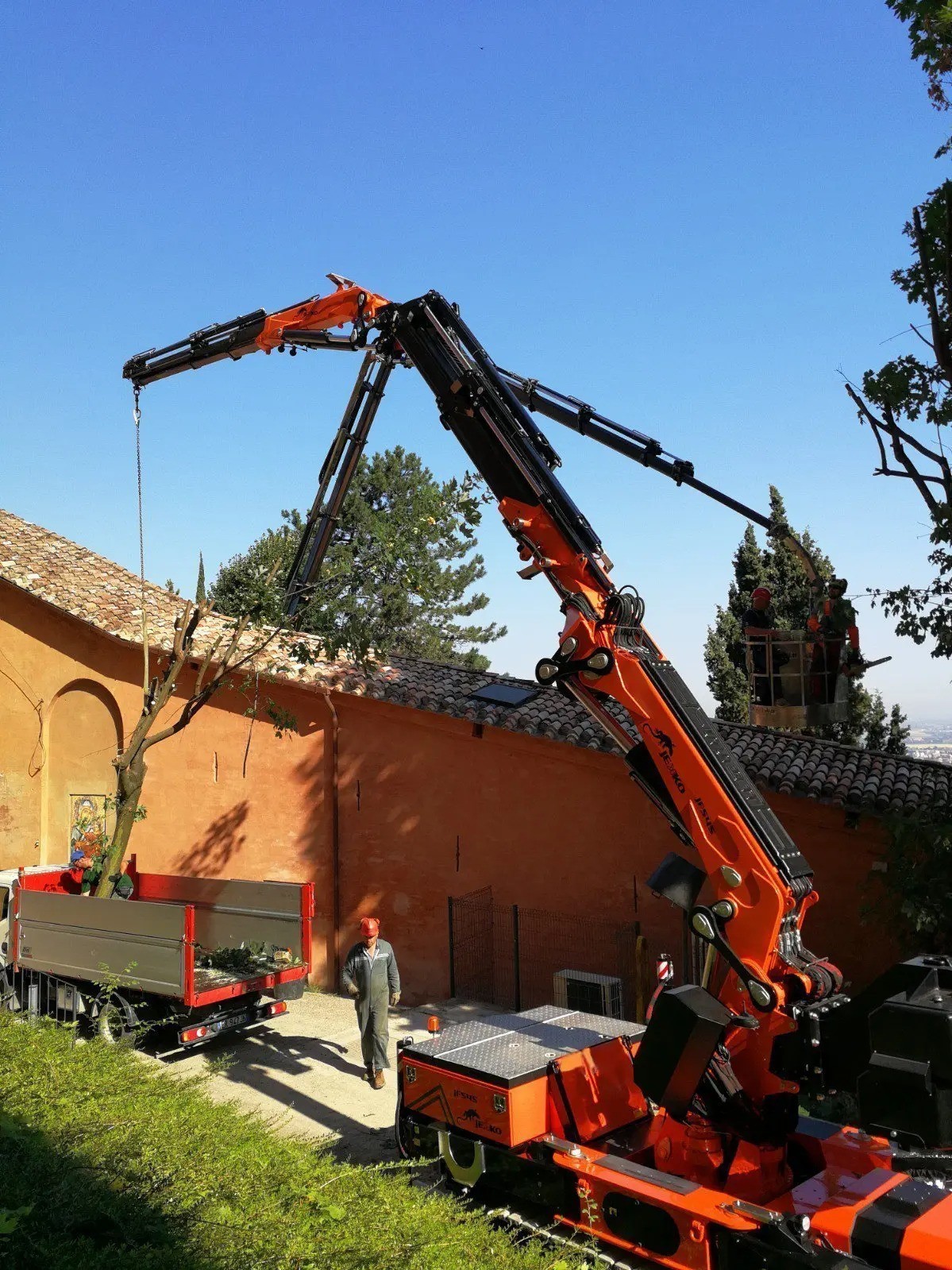

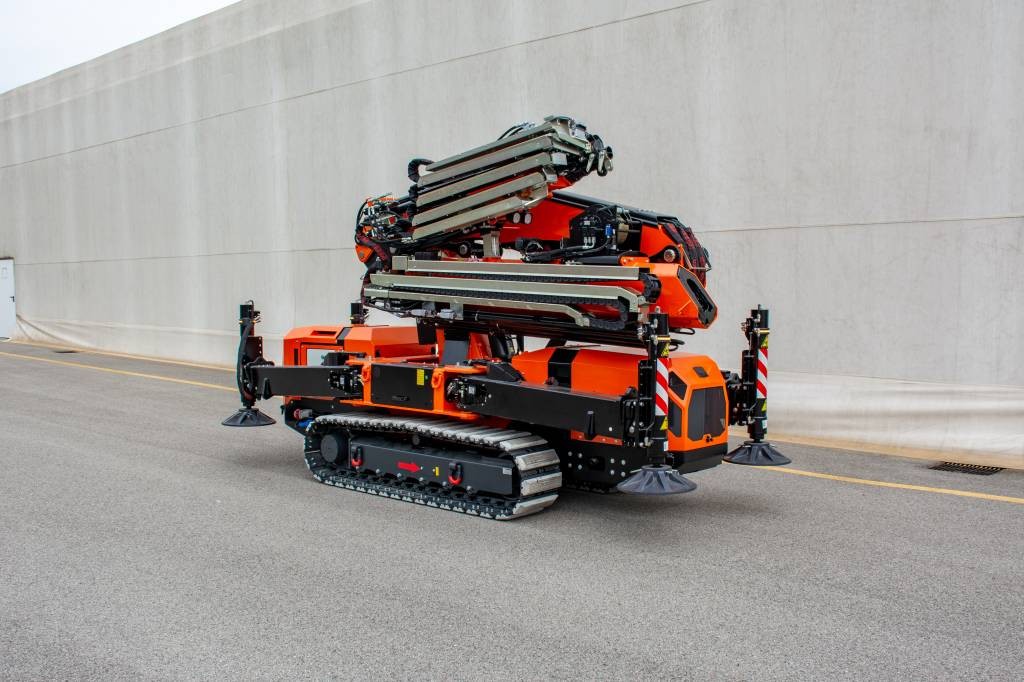

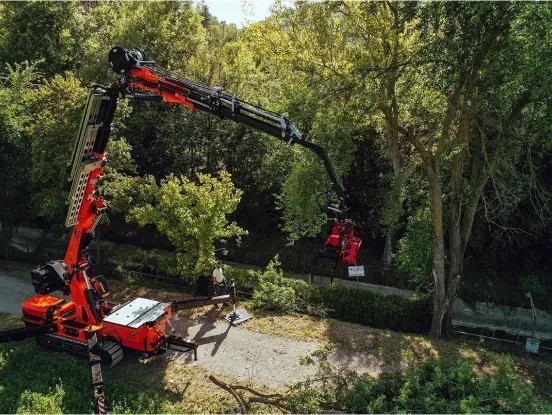

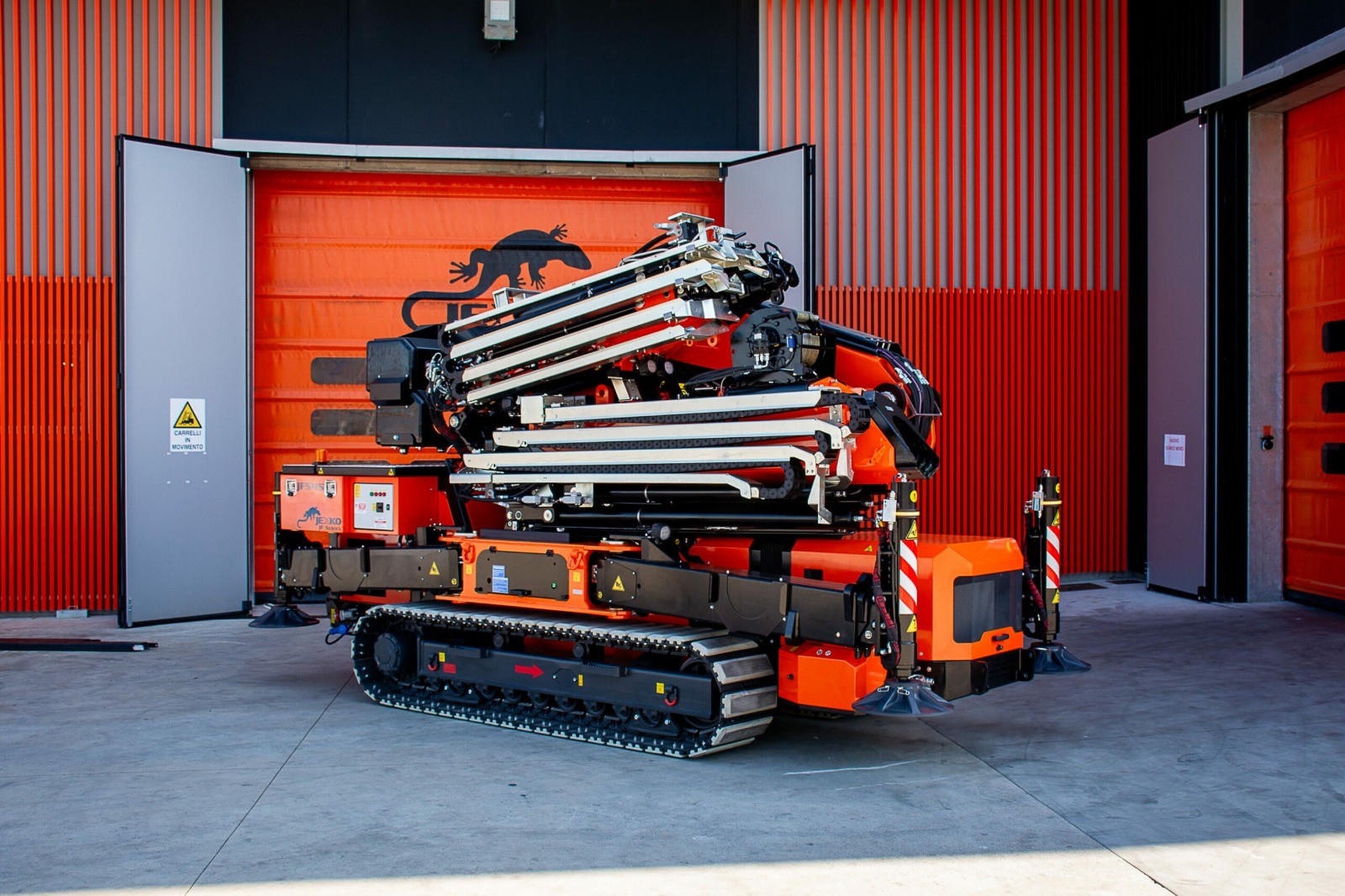

JF Articulated series of self-propelled articulated truck-mounted cranes on crawler vehicles.

These versions are exceptional devices that combine the stability of crawlers with the adaptability of articulated cranes. The JF series is the best option for simplifying any task, navigating difficult terrain or difficult-to-reach areas, and carrying loads that were previously impractical.

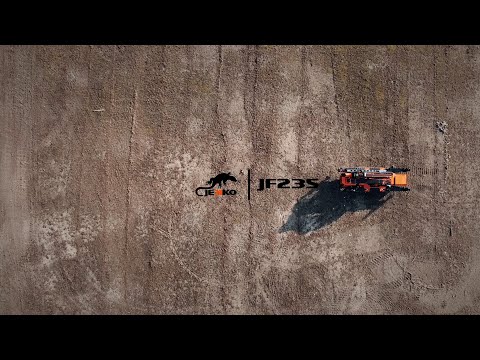

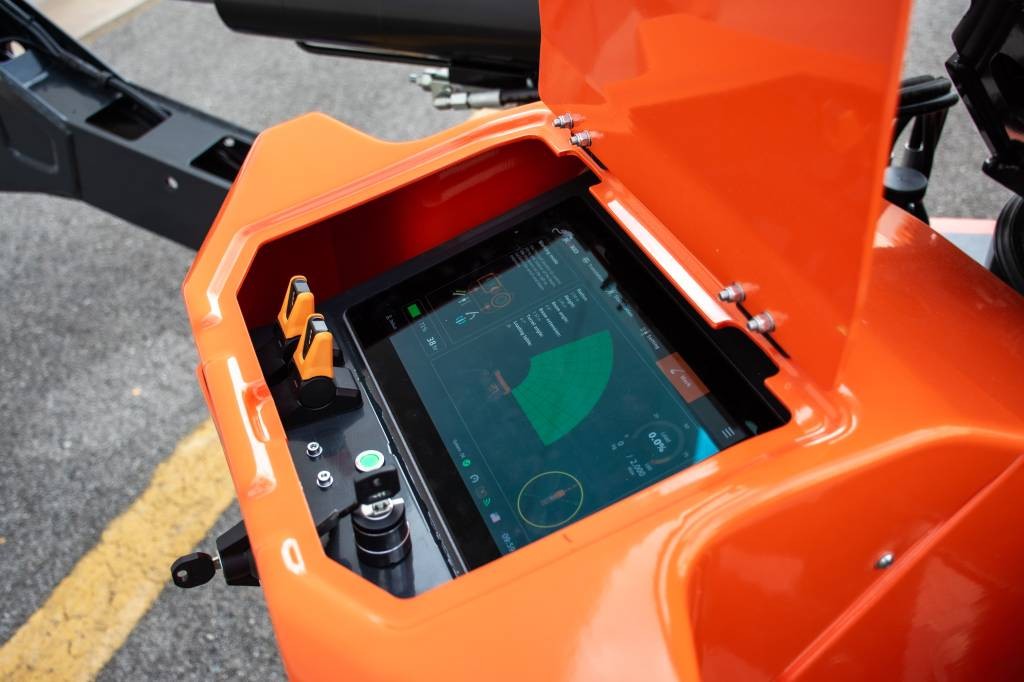

JF235 articulated crawler crane is the smallest model in the lineup with bi-energy propulsion. The new Jekko JF235's interactive touch screen and radio control allow it to be just as maneuverable and useful as the SPX328.

JF365 setup combines a truck-mounted articulated crane with a self-propelled crawler. This model represents the crawler crane of the future. With a maximum height of 29.5 meters and a maximum radius of 26.7 meters, the maximum flow rate is 11500 kg.

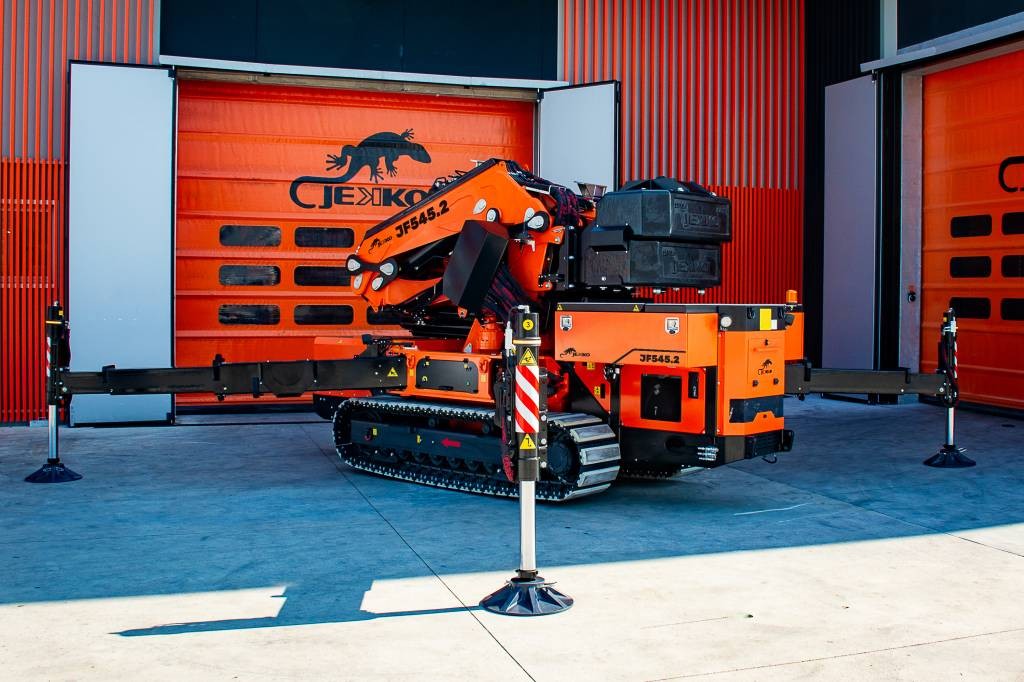

JF545.2 combines a truck-mounted articulated crane with a self-propelled crawler. The future of crawler cranes is contained in this model. The capacity is 15500 kg with maximum height of 32.5 meters and maximum radius of 30 meters.

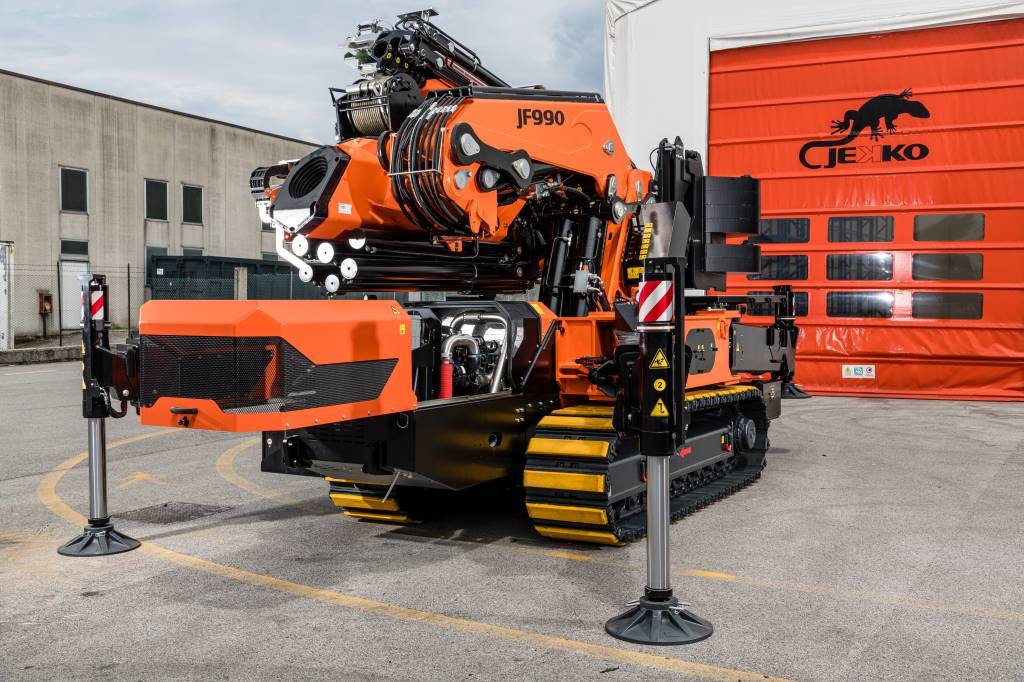

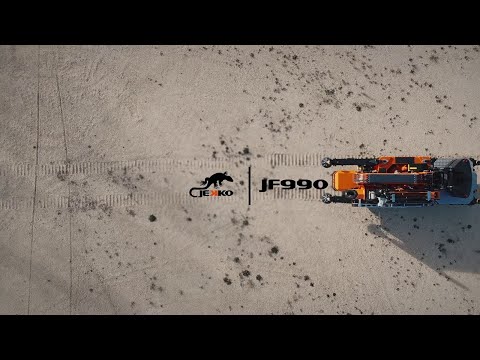

JF990 is the largest transportable crawler crane. The maximum capacity is 21000 kg with maximum height of 34.2 meters and maximum radius of 31.8 meters. Available in both Diesel and electric model

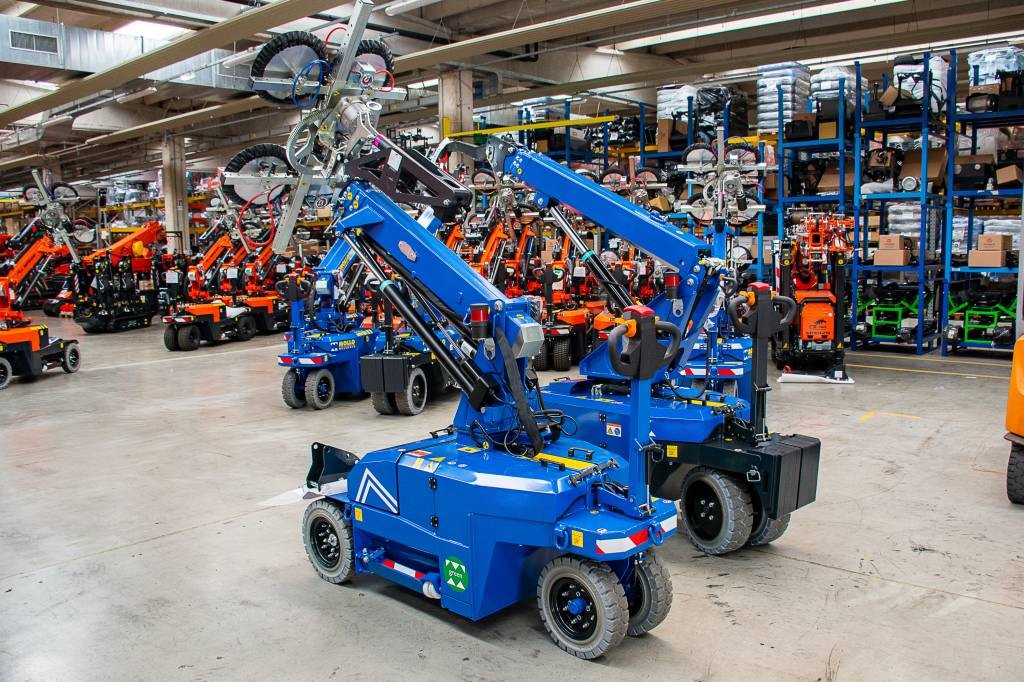

Mini Picker MPK

Electric, self-propelled, pick & carry, battery-powered and radio-controlled cranes. The MPK series kicks in when workspace becomes an issue. These tiny pickers are entirely radio-controlled and run solely on batteries. They are designed to work in places with limited access, like warehouses, where large loads must be carried through doors. They operate in "pick & carry" mode, which allows them to move freely with the load raised in the absence of stabilizers.

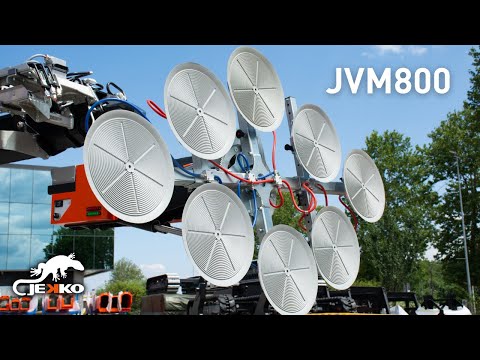

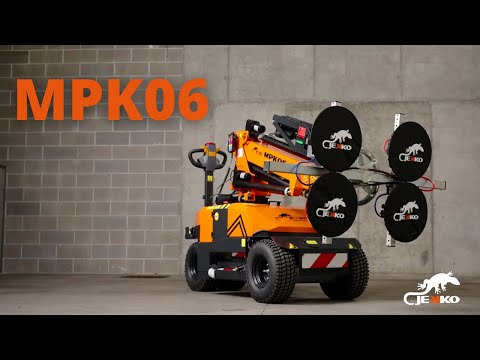

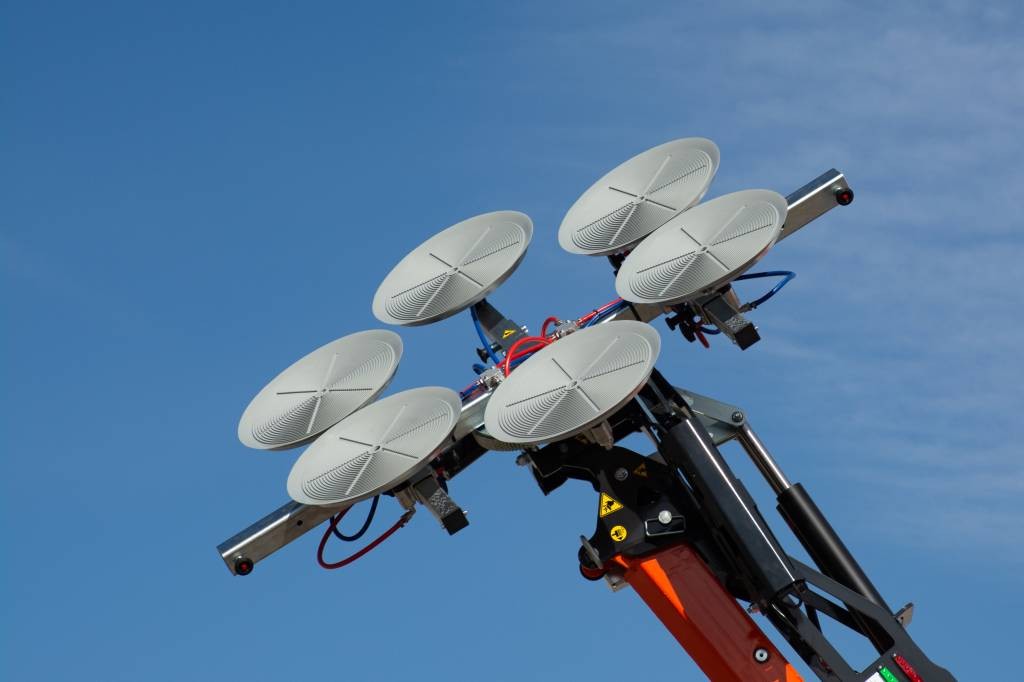

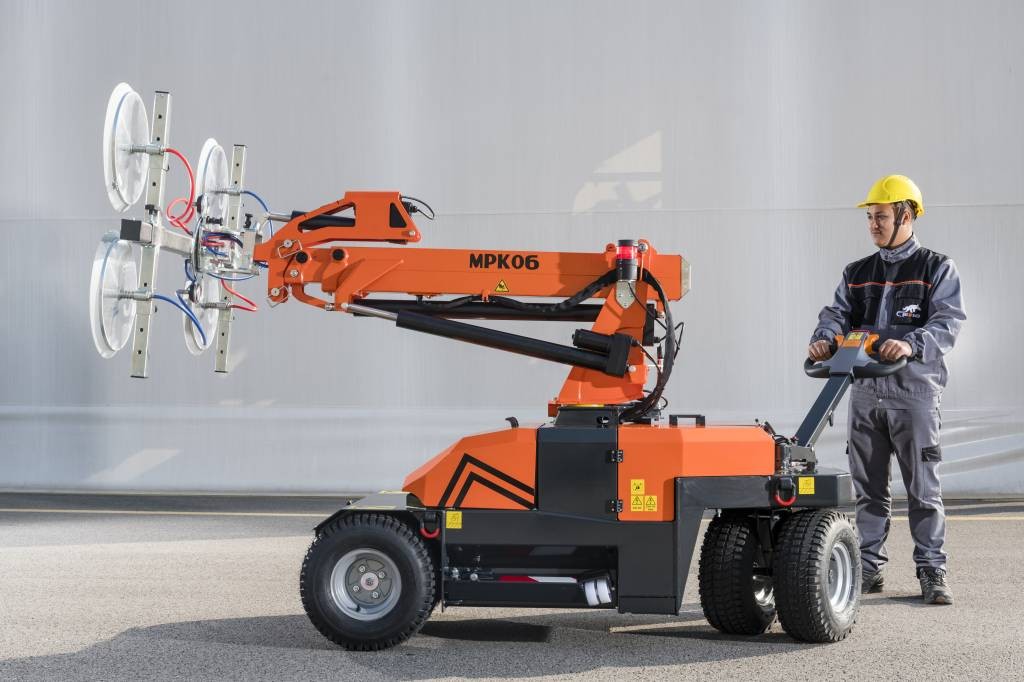

MPK06 Mini picker that can be used with a glass suction cup manipulator or a hook manipulator in compliance with the EN13000 standard. Up to three simultaneous movements without loss of performance. The maximum capacity is 600 kg with maximum height of 4 meters and maximum radius of 2.1 meters.

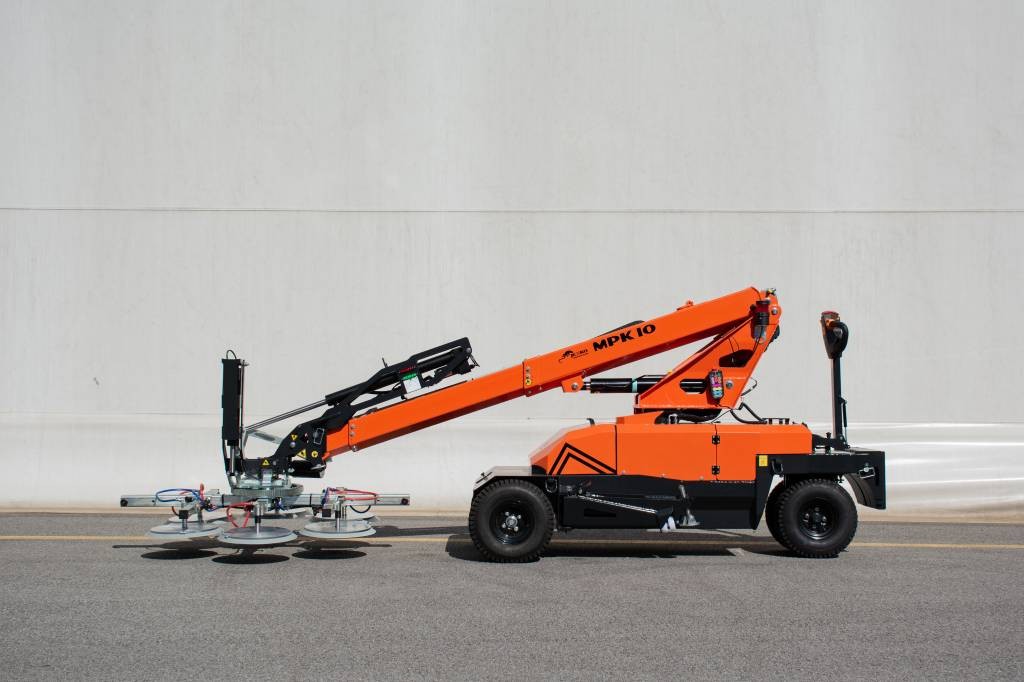

MPK10 is the 1 ton electric minipicker  whose column  can rotate 9° on each side . MPK10 can be used in hook mode or as an accessory with the glass manipulator. The maximum capacity is 990 kg with maximum height of 4.8 meters and maximum radius of 2.3 meters.

MPK20R column can rotate +/- 6° and allows the installation of 6- and 9-ton glass manipulators. This model Unique in the electric minipickers category. The maximum capacity is 2000 kg with maximum height of 7.4 meters and maximum radius of 4.9 meters.

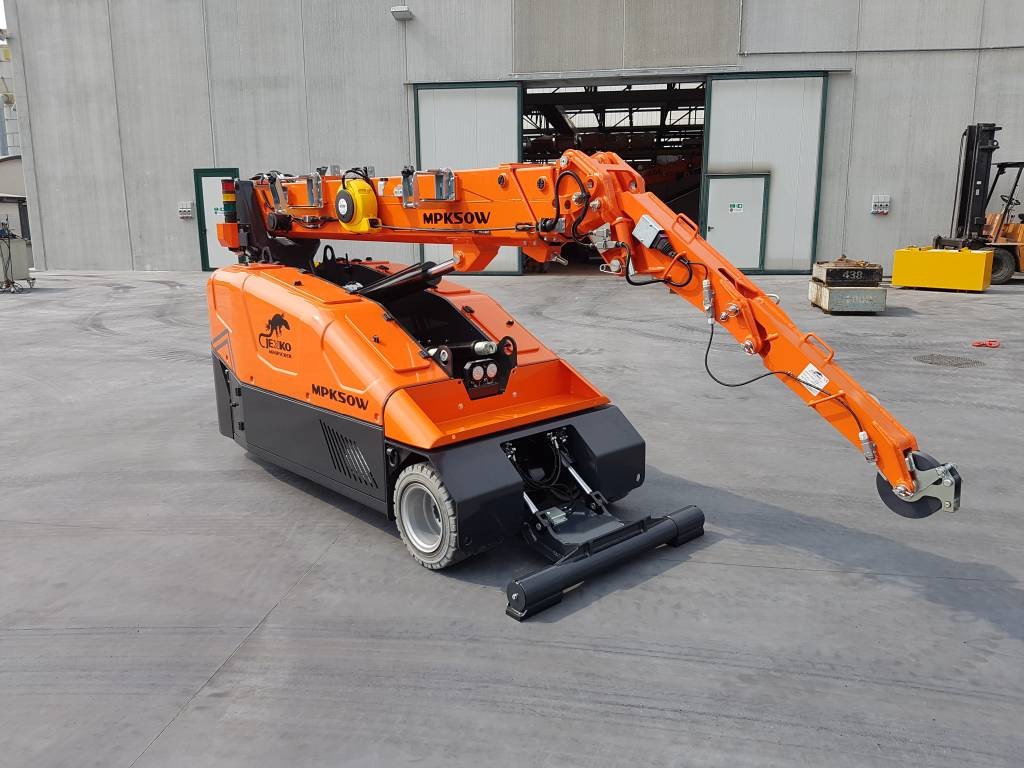

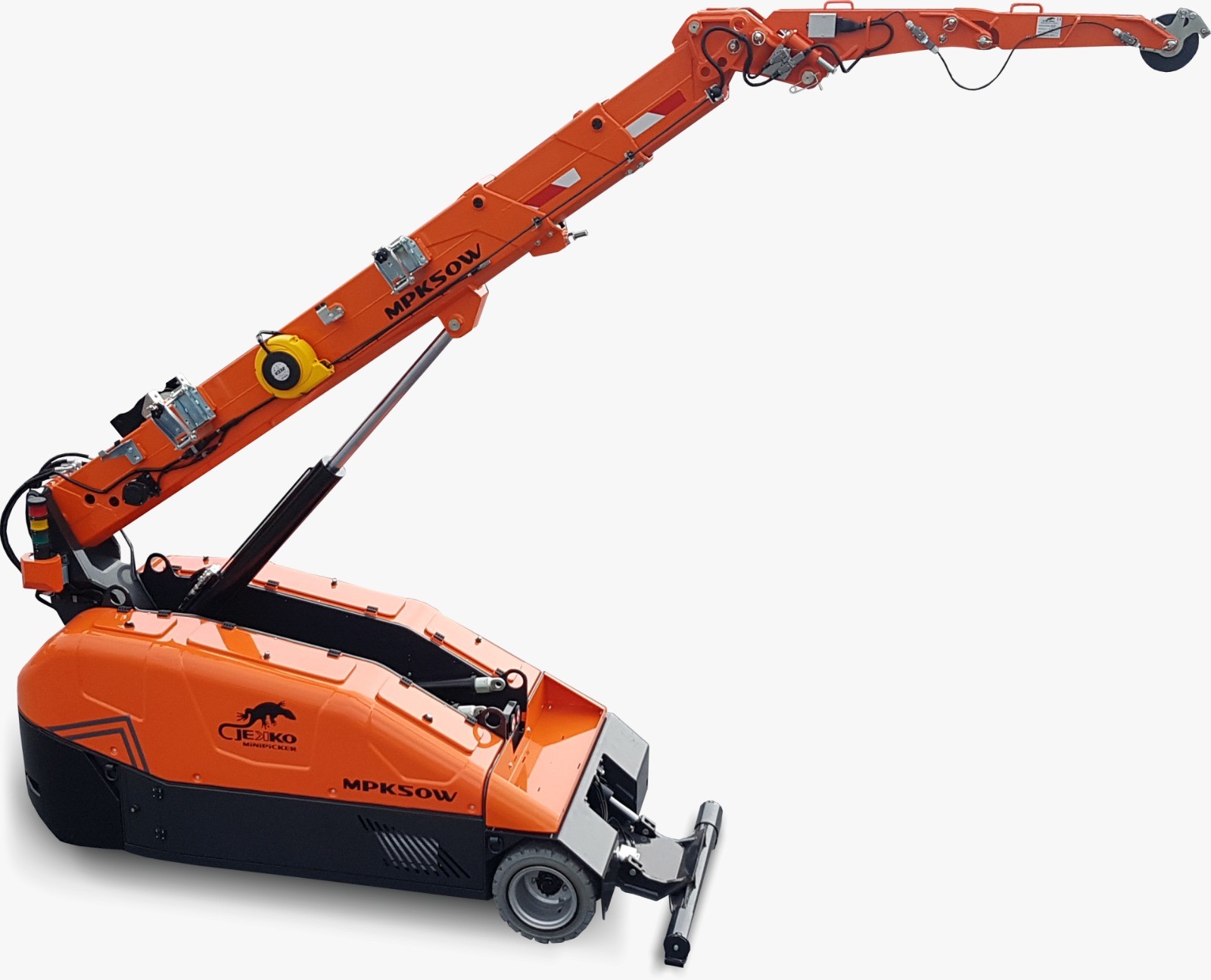

MPK50 is the innovation at its most basic level. This crane is unique in that it is fully radio-controlled, battery-powered, capable of 5 tons of pick and carry, and has a front stabilizer bar and innovative boom rotation system. The maximum capacity is 5000 kg with maximum height of 9.3 meters and maximum radius of 6.1 meters
