Angle Lines Machine

CNC Angle Lines & Angle-Lines Punching Machines in UAE

CNC automation has enhanced the overall productivity in the fabrication sector. At YES Machinery, we provide the CNC bandsawing and drilling lines and CNC angle lines designed for the steel and metal fabrication industry.

The bandsawing and drilling lines effectively fabricates beams and pillars, while the angle lines render the precise punching, drilling, marking and shearing of angle steel profiles.

Features of our CNC Angle Line Punching Machine:

- Heavy duty frame ensuring long-term reliability

-  Automatic angle setting and positioning

-  Features precision servo control system

- Combined marking and shearing system.

Applications of CNC Angle Line Punching Machine

- Structural steel and industrial fabrication

-  Bridge and infrastructure projects

-Oil and gas support structures

-Transmission and telecommunication tower manufacturing.

We are the leading industrial solutions supplier trusted by industries across the UAE. No matter what the fabrication needs, our CNC angle line, along with the bandsawing and drilling lines ensure precise, accurate and reliable solutions, meeting the requirements of the project.

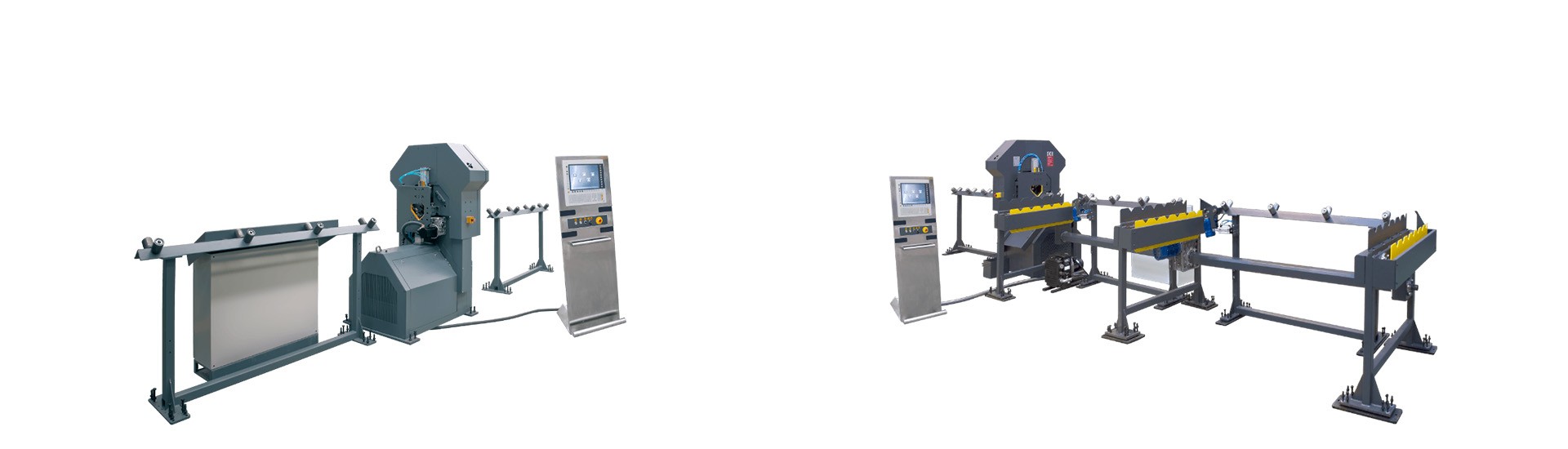

Gamma series Angles Processing CNC Punching Solutions

Gamma series (Roller and traction) is a CNC Line for Punching, Marking and Shearing Angles. This angle processing CNC punching solutions include one individual machine (Gamma Traction) and another series that consists of three CNC punching machines (Gamma Roller).

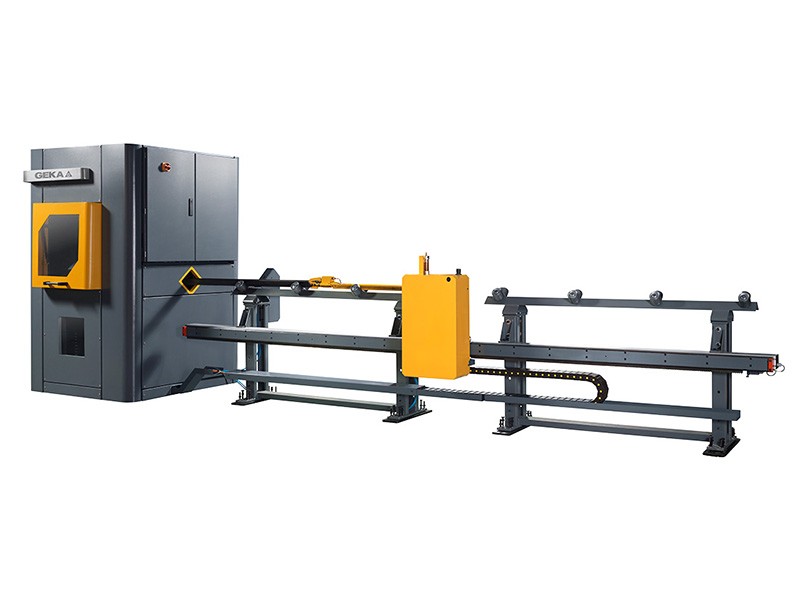

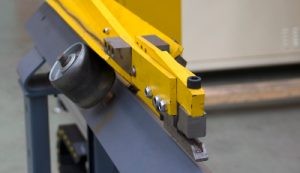

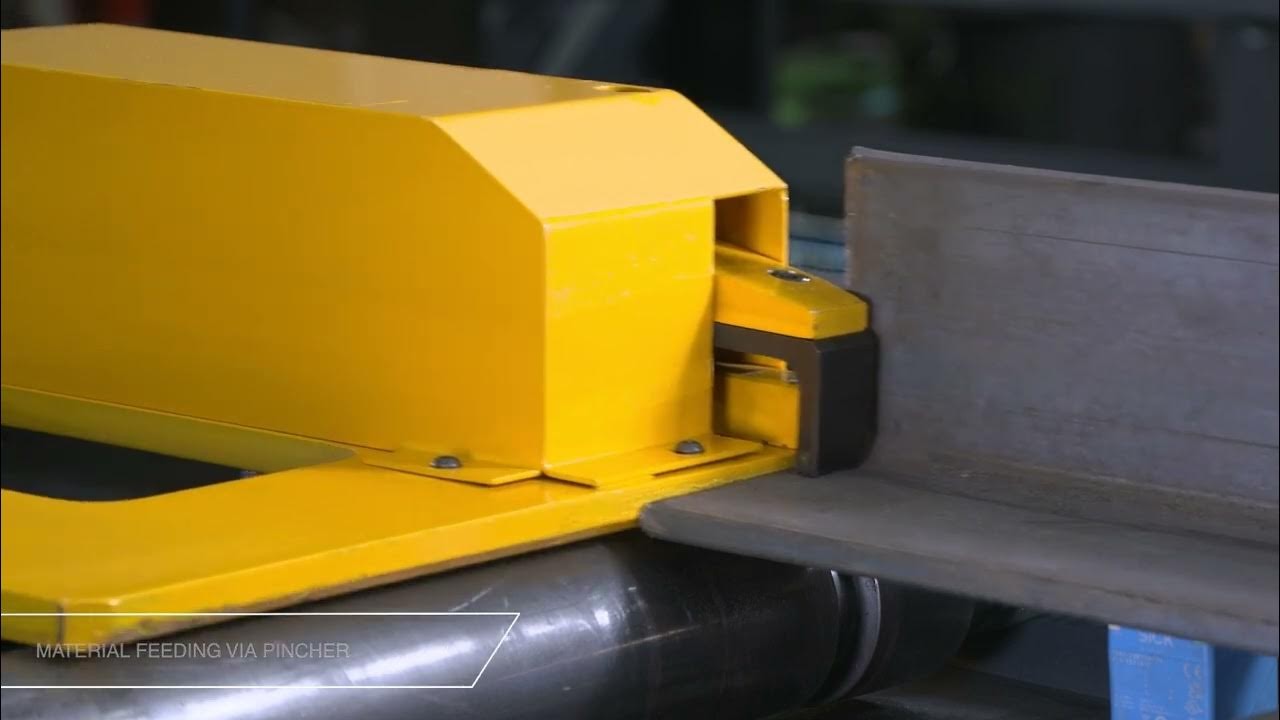

Gamma traction is a CNC solution for punching, shearing and drilling angles with a traction system and a feeder trolley. Gamma roller is a CNC punching solution for the processing of large quantities of angles. The main features and differences between the three punching machines are:

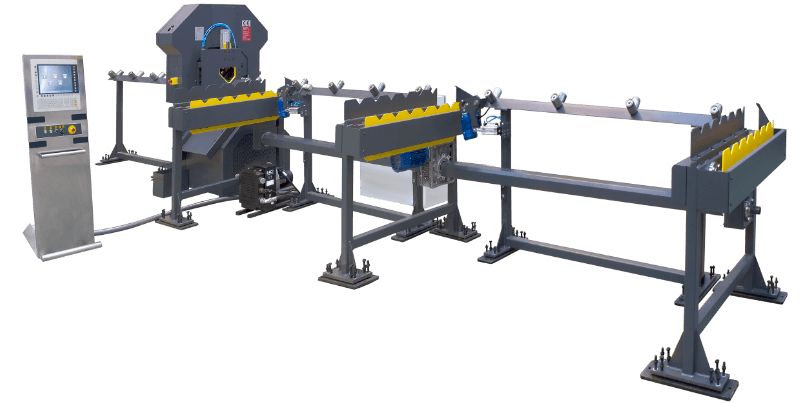

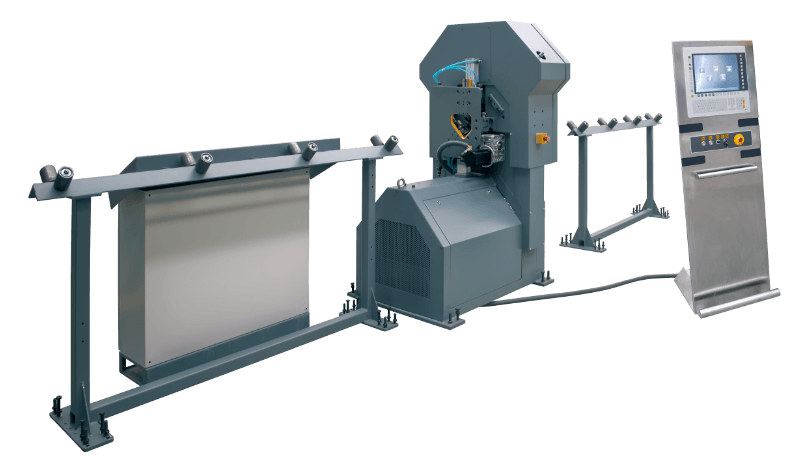

- Gamma Roller 80 / C2PL: CNC solution for angle punching and shearing.
- Maximum L: 80x80x8 mm
- Maximum diameter: 25 mm
- Punching force: 340 kN
- Shearing station power: 650 kN

Gamma Roller 150 2P / DPS: CNC solution for punching, marking, and shearing large
- Volumes of Angles and Flat Bars
- Maximum L: 150x150x15 mm
- Maximum diameter: 31 mm
- Punching force: 600 kN
- Shearing station power: 1900 kN

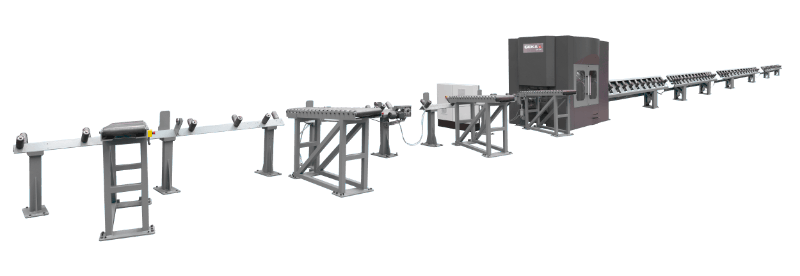

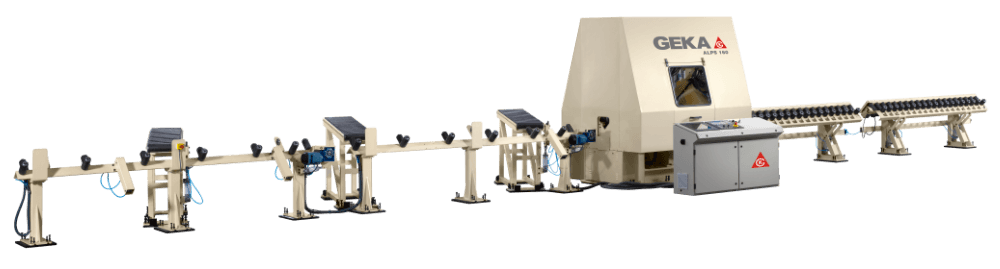

Gamma Roller 160–3P / ALPS: CNC Solution for punching, marking and cutting angles, flat
bars and U profiles.
- Maximum L: 160x160x16 mm
- Maximum diameter: 31 mm
- Punching force: 800 kN
- Shearing station power: 2550 kN

At YES Machinery, we supply top-quality CNC Angle Lines Punching Machines from Geka ideal for the steel and metal fabrication industry.  Visit our showroom for a live demo or contact sales@yesmachinery.ae / ‪+971 6 5264382‬ to learn more from our experts.
