3 AXIS Positioner & Head And Tailstock Positioner

Weld Automation

By: Sideros

ItalyItaly

Express Interest

Product Highlights

3 - axis welding and handling positioner ROTOLIFT is a hydraulic welding and handling positioner specifically designed to facilitate welding and assembling operations. THE ROTOLIFT’S MAIN FEATURES ARE: Reduction of welments handling time. Minor use of traditional lifting equipment. Safer and more ergonomic working enviroment. Lifting, tilting and rotation of a weldment on a single machine. Improvement of welding quality. Fast return on investme...

3 - axis welding and handling positioner

ROTOLIFT is a hydraulic welding and handling positioner specifically designed to facilitate welding and assembling operations.

THE ROTOLIFT’S MAIN FEATURES ARE:

Reduction of welments handling time.

Minor use of traditional lifting equipment.

Safer and more ergonomic working enviroment.

Lifting, tilting and rotation of a weldment on a single machine.

Improvement of welding quality.

Fast return on investment (ROI).

Simplified welding procedure specifications (WPS).

3 axis: elevation, rotation, tilting.

HEAD AND TAILSTOCK POSITIONER - THREE AXIS WELDING POSITIONER - ROTOLIFT RL 13000

ALL ELECTRIC WELDING POSITIONERS HEAD AND TAILSTOCK

Head and Tailstock positioners are used to weld and assembly long and large weldments in many different application fields. Besides the benefits of ergonomics and safety during welding and assembly applications, the revolutionary feature of Syncrolift is the compactness and the portability of both columns, thanks to their dedicated hydraulic jacks. The result is an extreme flexibility in the factory. Syncrolift features two main axis: Electrical elevation/descent, and Electrical 360° left/right rotation. A typical configuration is composed of a motorized headstock positioner with an idler tailstock.

ROTOLIFT is a hydraulic welding and handling positioner specifically designed to facilitate welding and assembling operations.

Improved Safety

Proper Ergonomics

Improved weld quality

Cost savings and profit increase

Welding/Assembly procedures repeatability

HEAD AND TAILSTOCK POSITIONER - SYNCROLIFT SLC 150

Sideros Head and Tailstock Positioners Italy

Syncolift from Sideros Italy | Head and Tailstock Positioners

Sideros Engineering Head & Tailstock Positioners are ergonomics and safe for welding and assembly lines especially for long and large weldments in many different applications, the revolutionary feature of Syncrolift with dedicated hydraulic jacks which is very compact and portability of columns. The result is an extreme flexibility in the factory for long parts welding and assembly.

Syncrolift features two main Electrical axis: elevation/descent, and 360° left/right rotation.

Syncrolift is configured with a fixed to the ground motorized headstock and an idler tailstock to adjust the workpiece length.

Advantages:

Improved Safety

Proper Ergonomics

Improved weld quality as the welder can position at any level and rotate the job.

Welding and Assembly procedures repeatability

No need of maintenance even with continuous use.

Cost reduction and profit improvement for the jobs

Features of Head and Tailstock Positioners

Advanced anti-collision safety system

Automatic column height alignment

Suitable for welding and assembly operations

Reduce operating time by 60% resulting in increased productivity

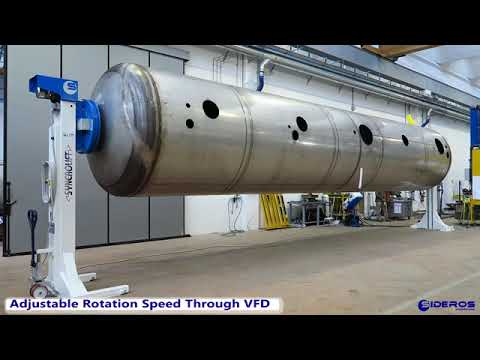

Lifting, tilting and rotation electrically driven with speed control by inverter

Compact and engaging design

Transpallet Slave column movable with hydraulic jack

Touch screen HMI user friendly to ease management and operation of the machine

slc400 Customized column height up to 4 meters

Presence of creeping ground for welding integrated in the machine

Reinforced connection cable between columns

Columns designed according to strict criteria of structural safety

Motorized master column and mobile slave column

Motorized master and slave column configuration to achieve higher torque and better workpiece rigidity

Available Voltage: 400V - 50/60Hz CE; 480V - 60Hz UL complied; 600V - 60Hz CSA complied

Different types of Welding Positioners

3 Axis Welding Positioners

Head and Tailstock Positioners

Cradle Positioners

Skyhook Positioners

Single Column Positioners

Welding Universal Balance Positioners

Scissor Lifting Tables

3 Axis Welding Positioners

ROTOLIFT is a 3 axis welding positioner and manipulator, specifically designed to improve safety and ergonomics, considerably reduces the handling of workpieces without changing the angle of lifting.

ROTOLIFT is an ergonomic machine featuring great flexibility with very innovative feature like tilt, rotate, lift and lower the workpiece.

Positioners with Special loading capacity up to 100 Ton is also available.

Cradle Positioners

The Cradle Type SYNCROLIFT Positioner with 2 fixed columns and a turning cradle is equipped with a main cradle and a motorized rotary plate on which job can be loaded on the top. Positioner is capable to perform 4 main movements: upward, downward, turning over and rotation by 360° movements

Skyhook Positioners

This positioners performs an optimum ergonomics for welding and assembly processes, with a  possibility of turning the working piece by 180°. The positioner is with a fixed column and a rotating arm, performing 3 main movements, such as upward, downward movements, turning over and rotation by 360°. This L-Type positioner can also be easily customized in height, length of the arm and in load capacity up to 10.000 kg

Single Column Positioners, Welding Universal Balance Positioners, Scissor Lifting Tables are other types
