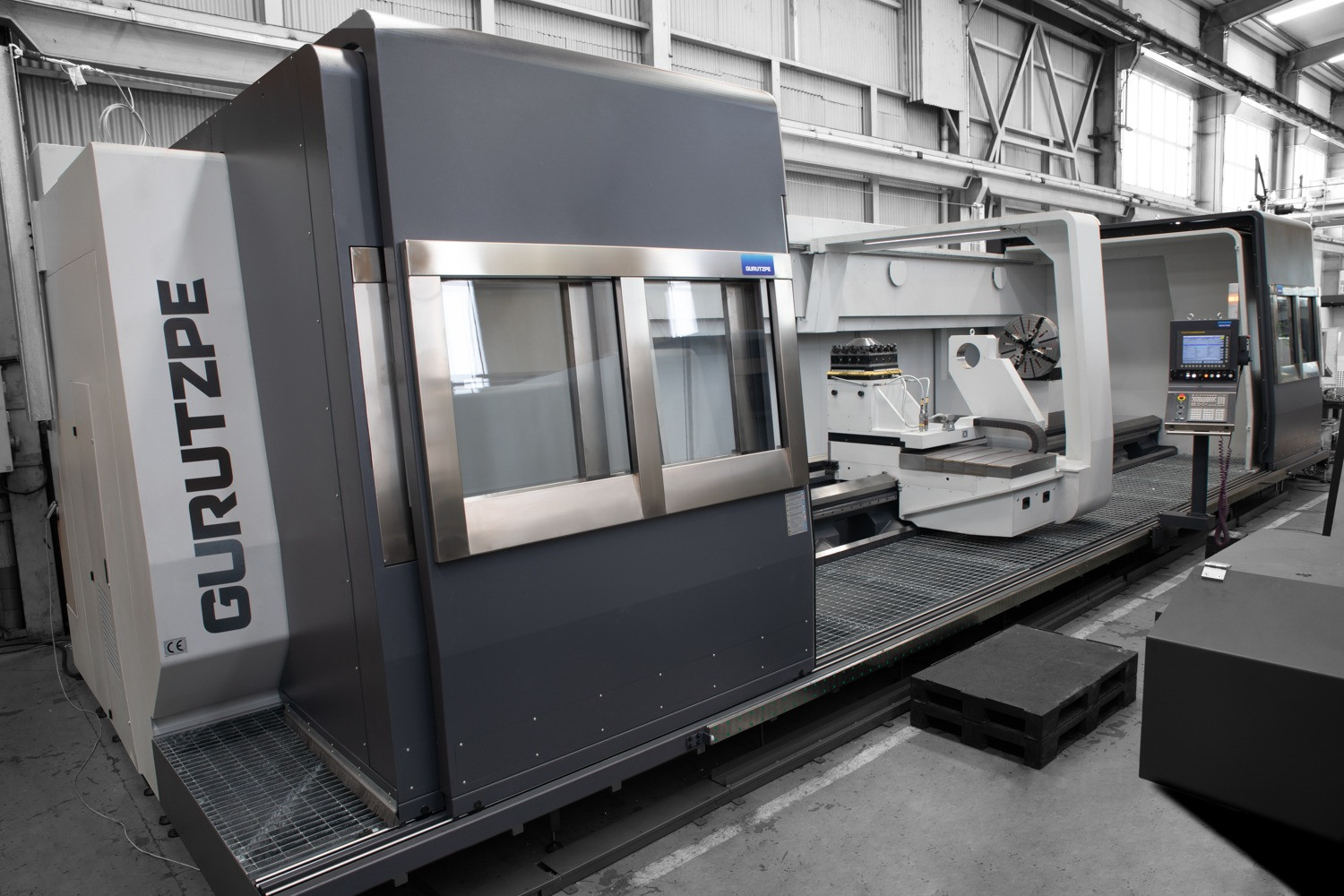

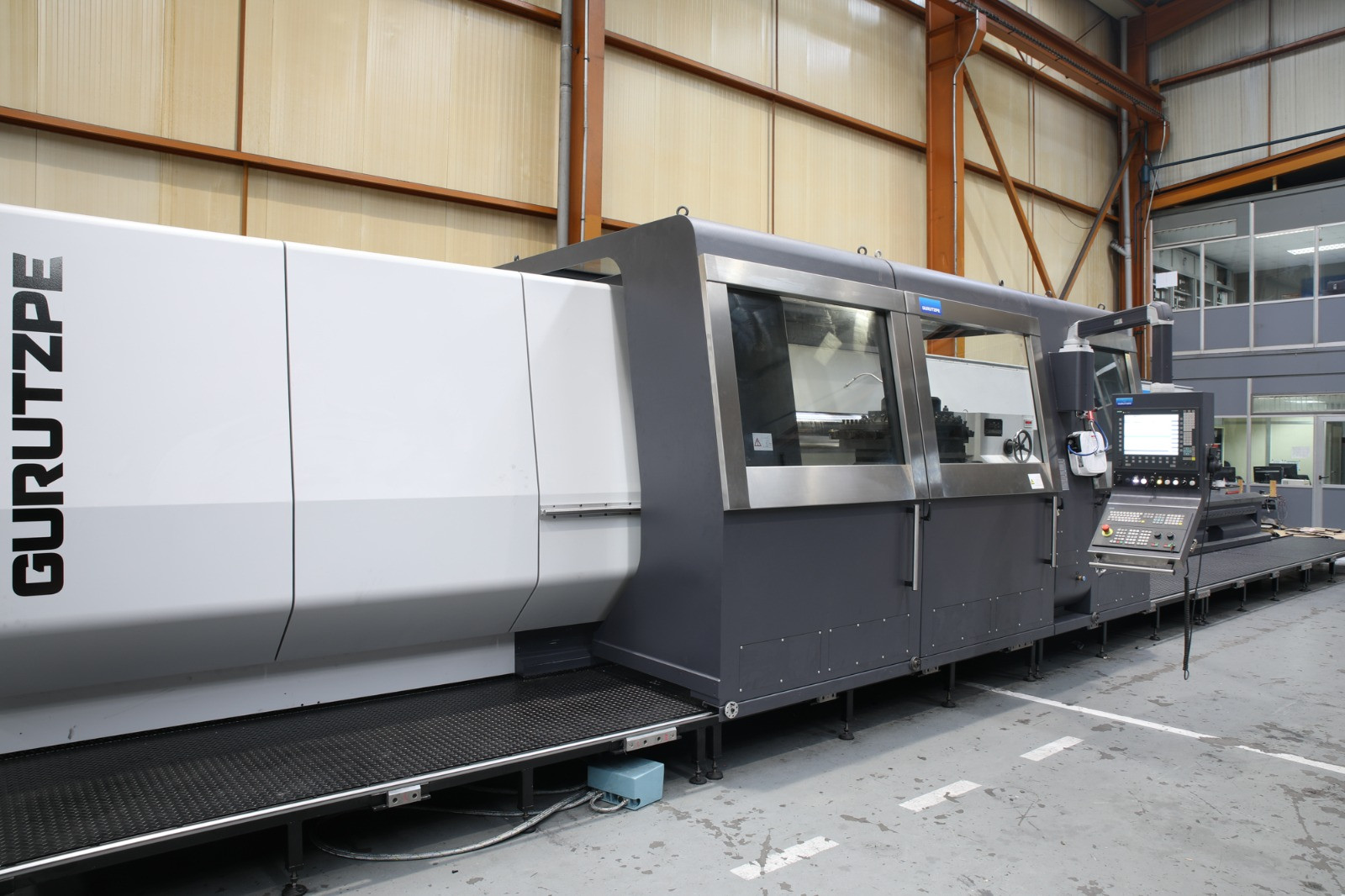

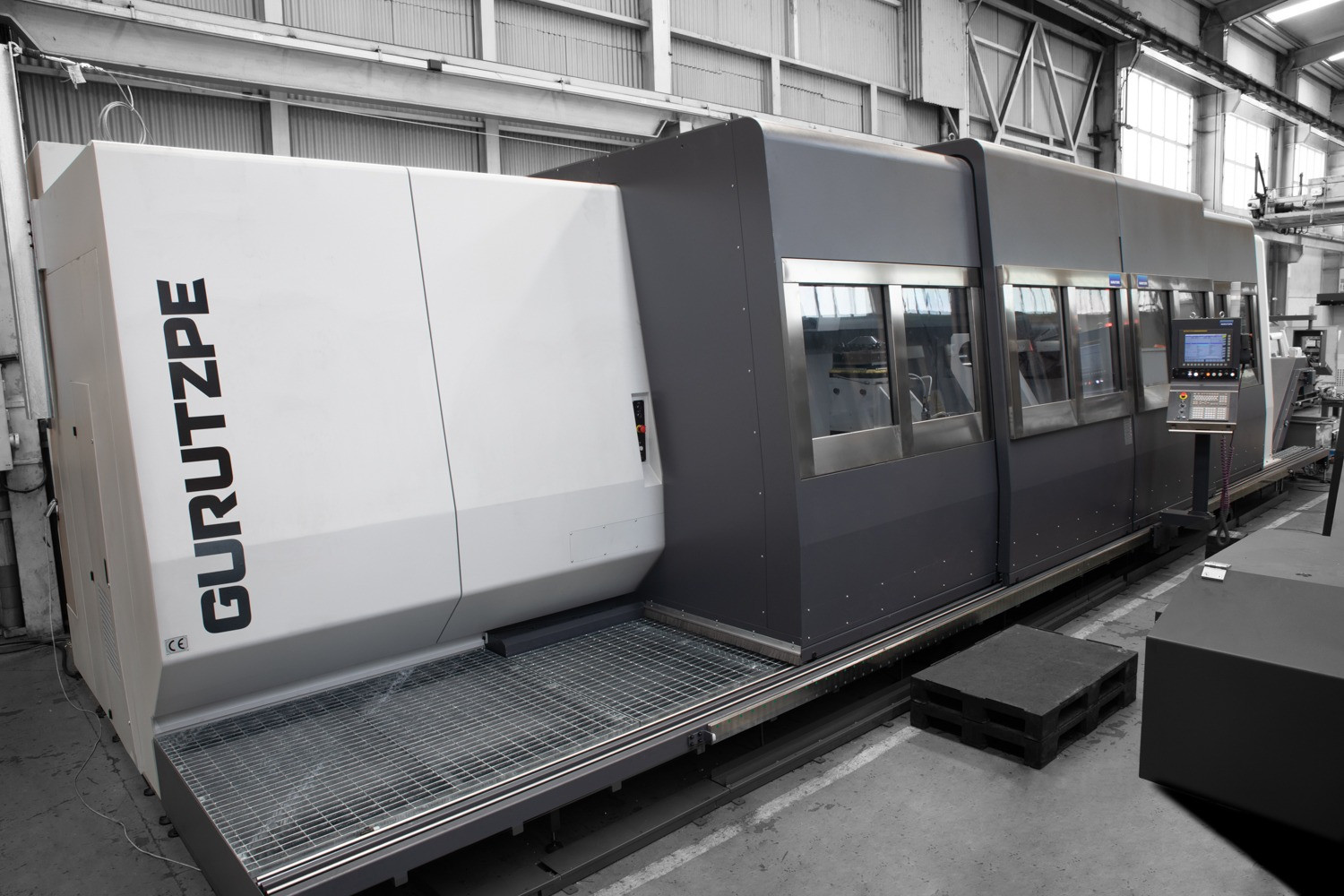

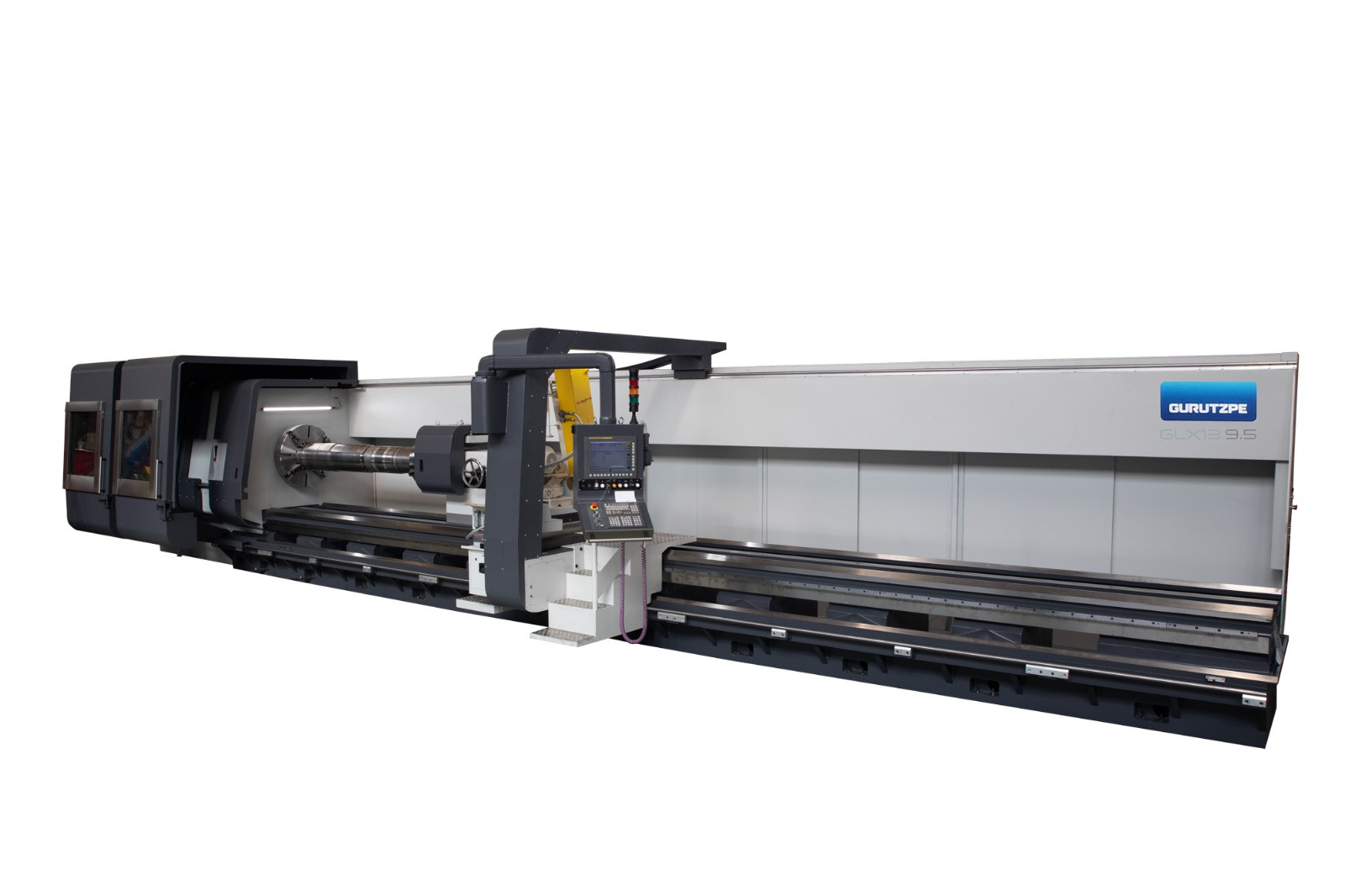

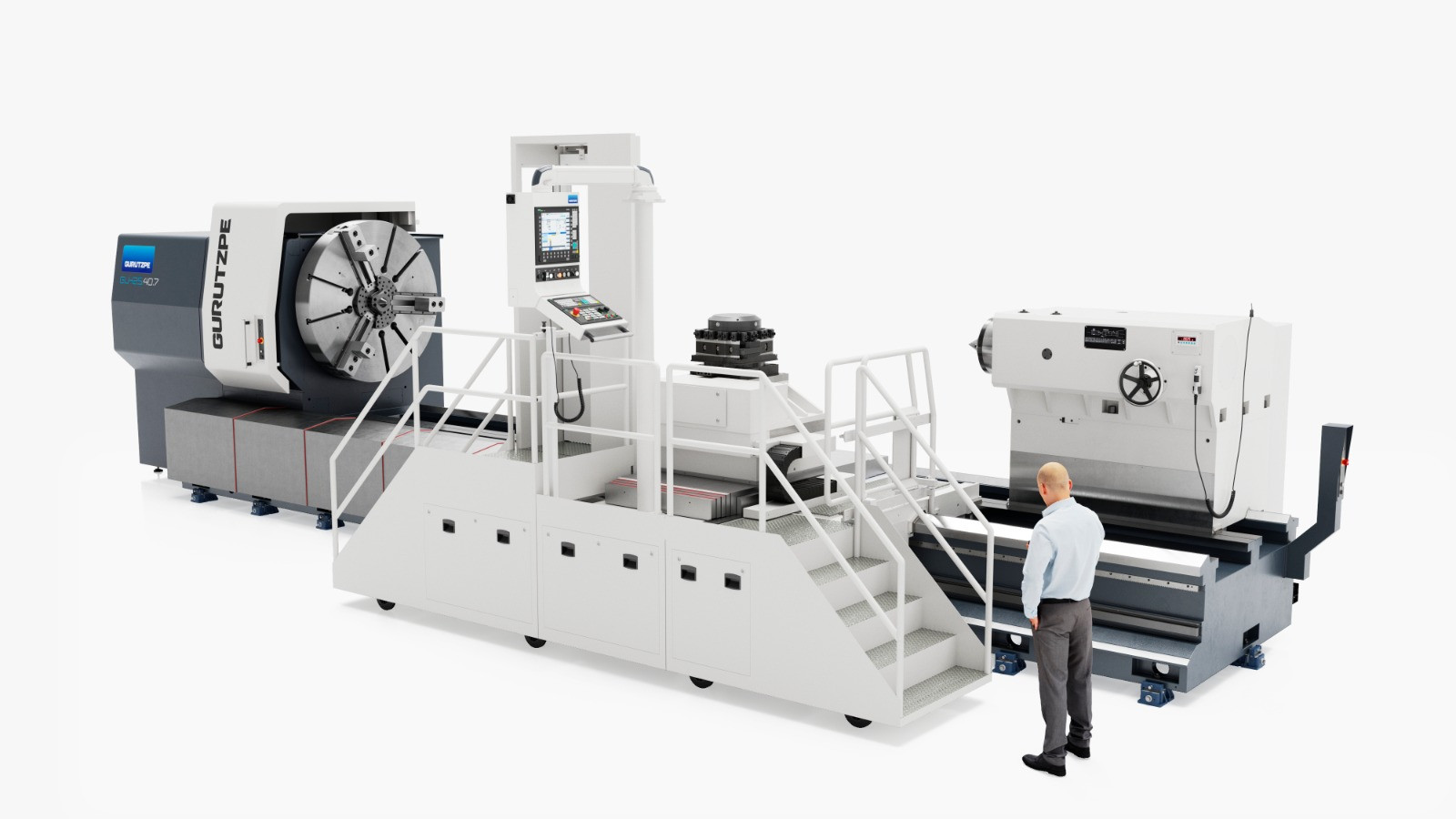

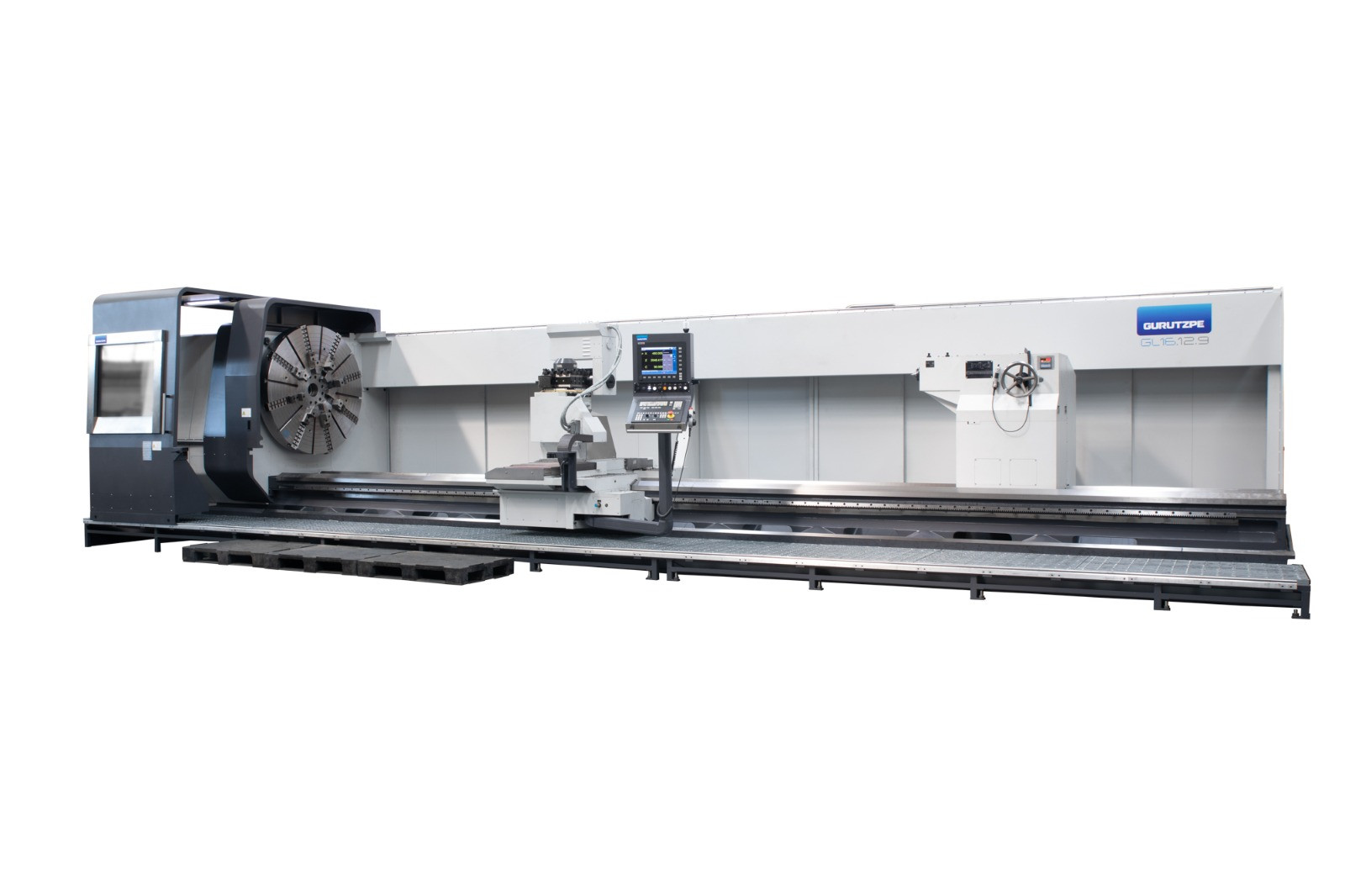

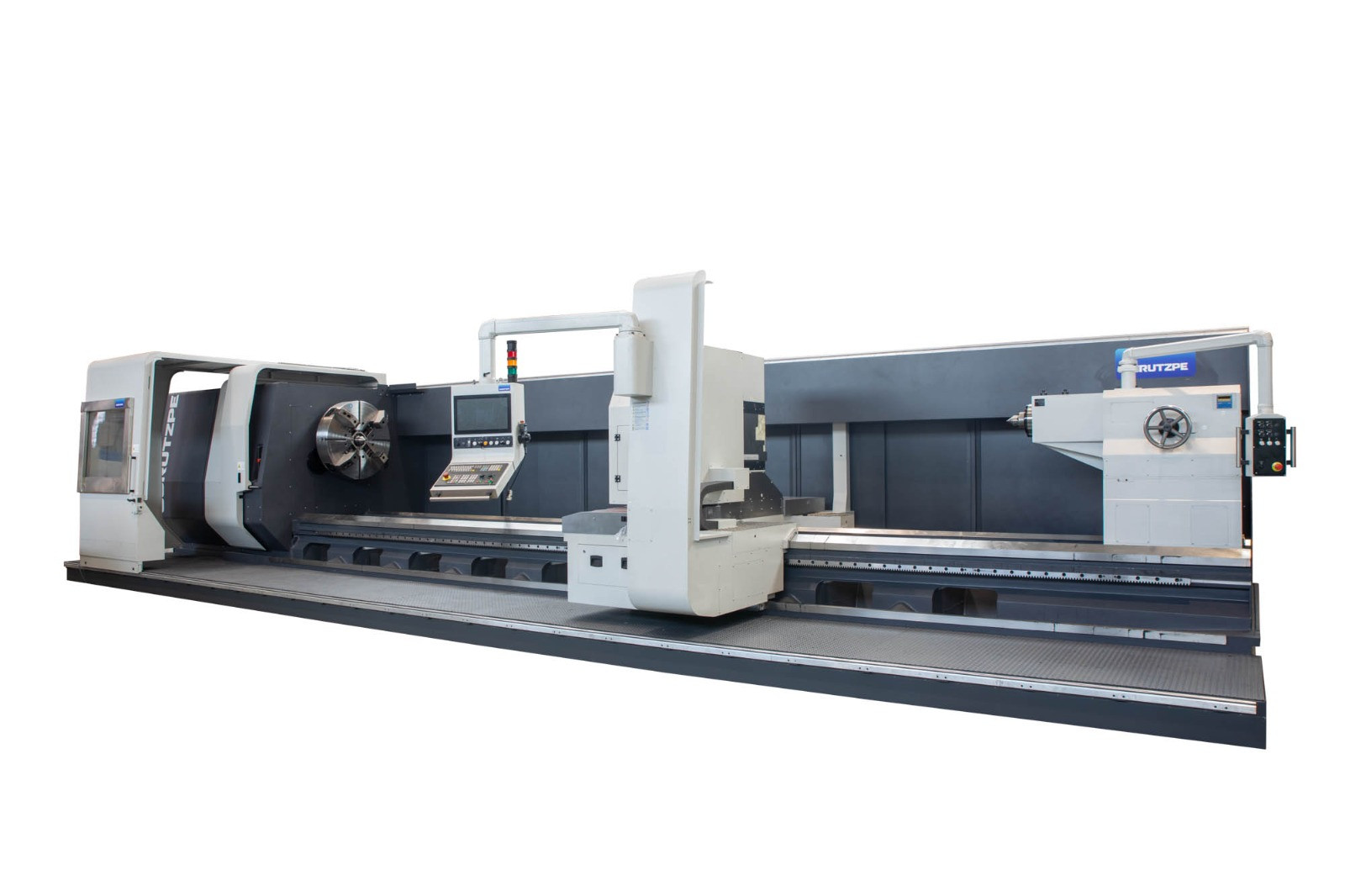

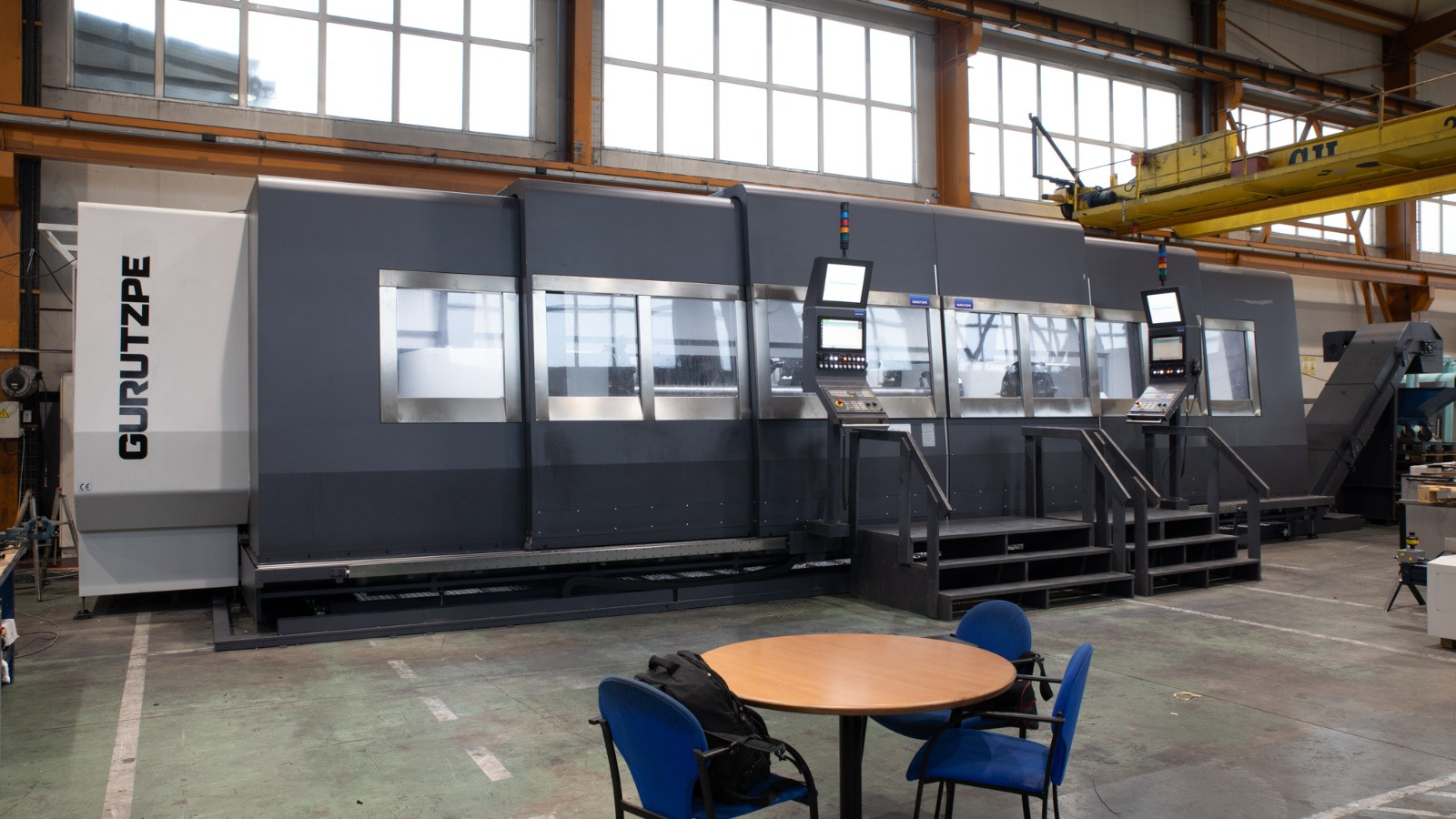

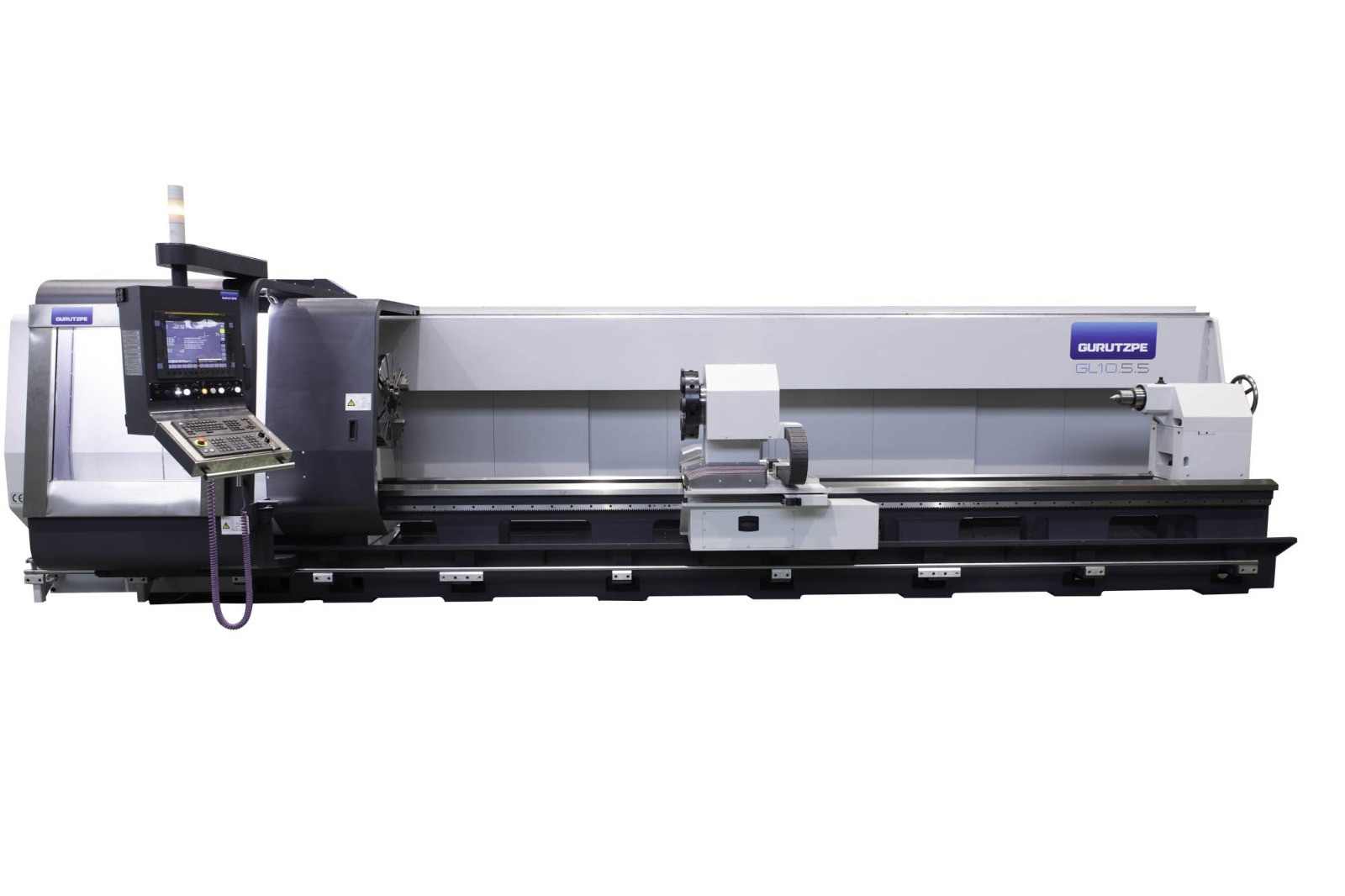

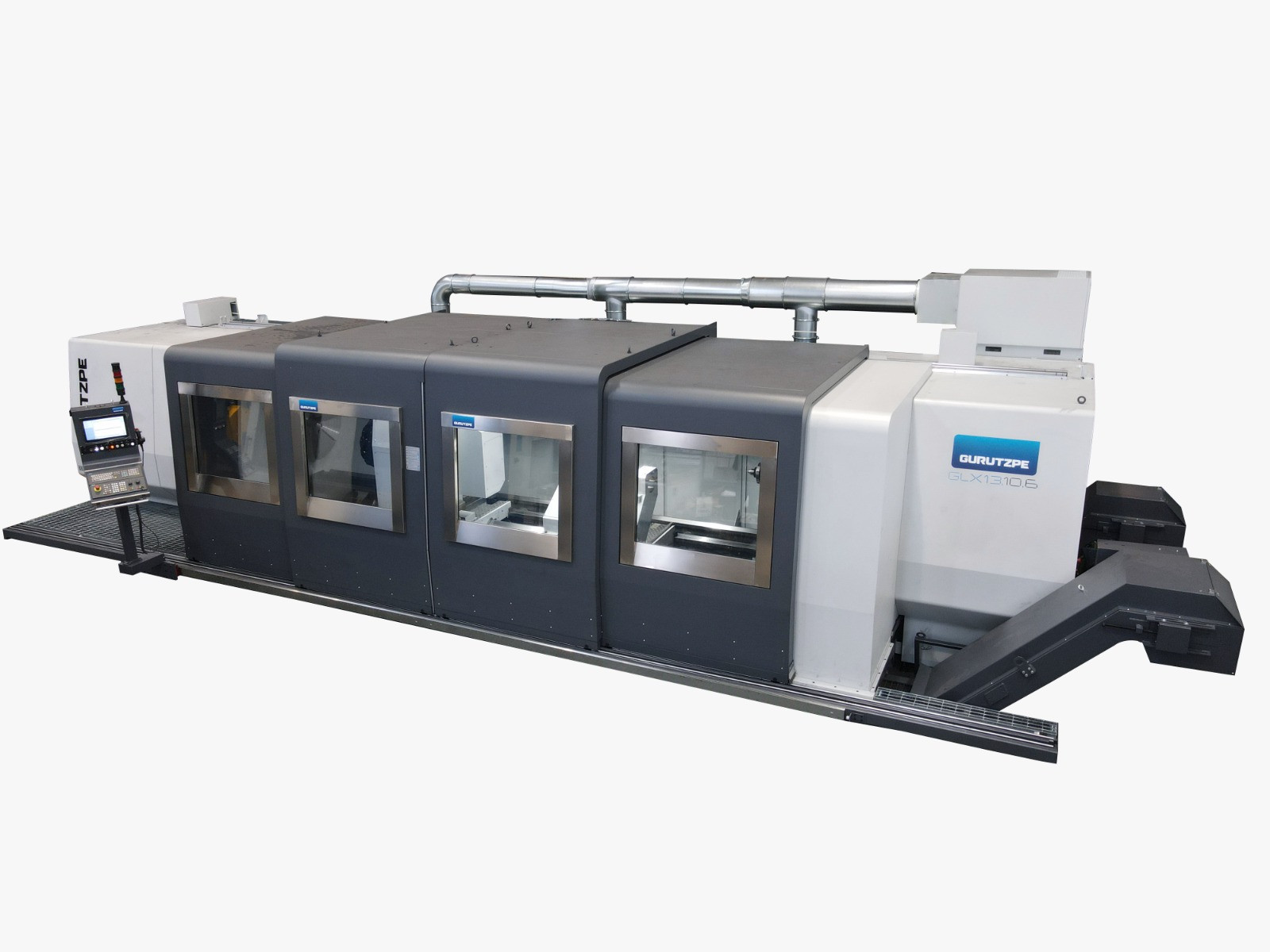

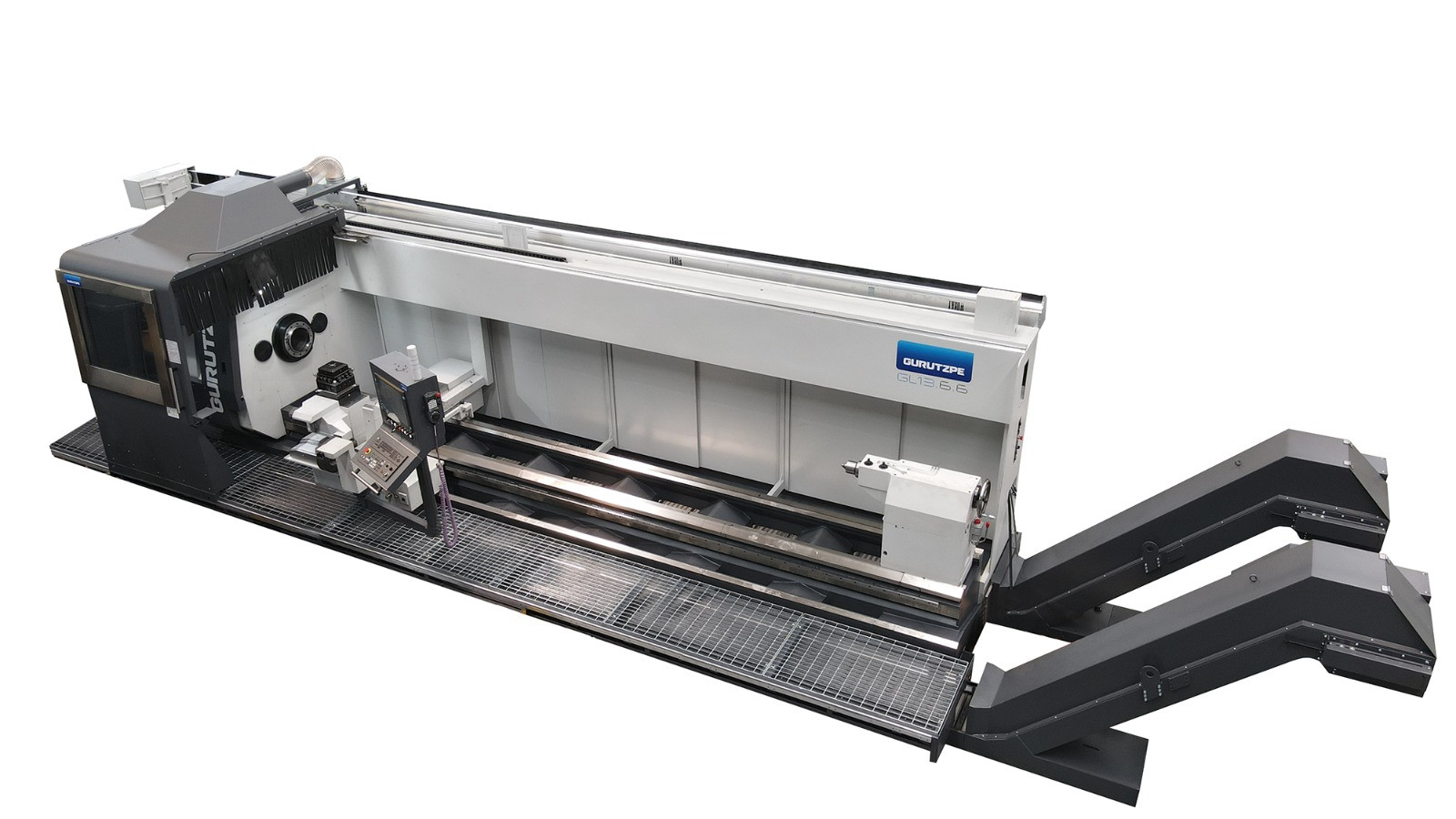

Heavy Duty CNC Lathe Machine

Known for producing high end lathes, GURUTZPE is an industry leader with more than 60 years of experience with various players in the industry. We deliver top of the line lathes that are highly customizable to the client's needs. We are aimed at creating the highest standard in European horizontal turning technology, by offering the best turnkey solution available in the market, We support our clients in every step of the process with ambitions to lead the engineering as well as production of rotating parts. We are immensely dedicated in creating quality employment opportunities as well as growth throughout by crafting a rewqrding and collaborative environment.

PRODUCT RANGES
Horizontal flat-bed lathes
Horizontal hydrostatic lathes
Slant-bed turn mill

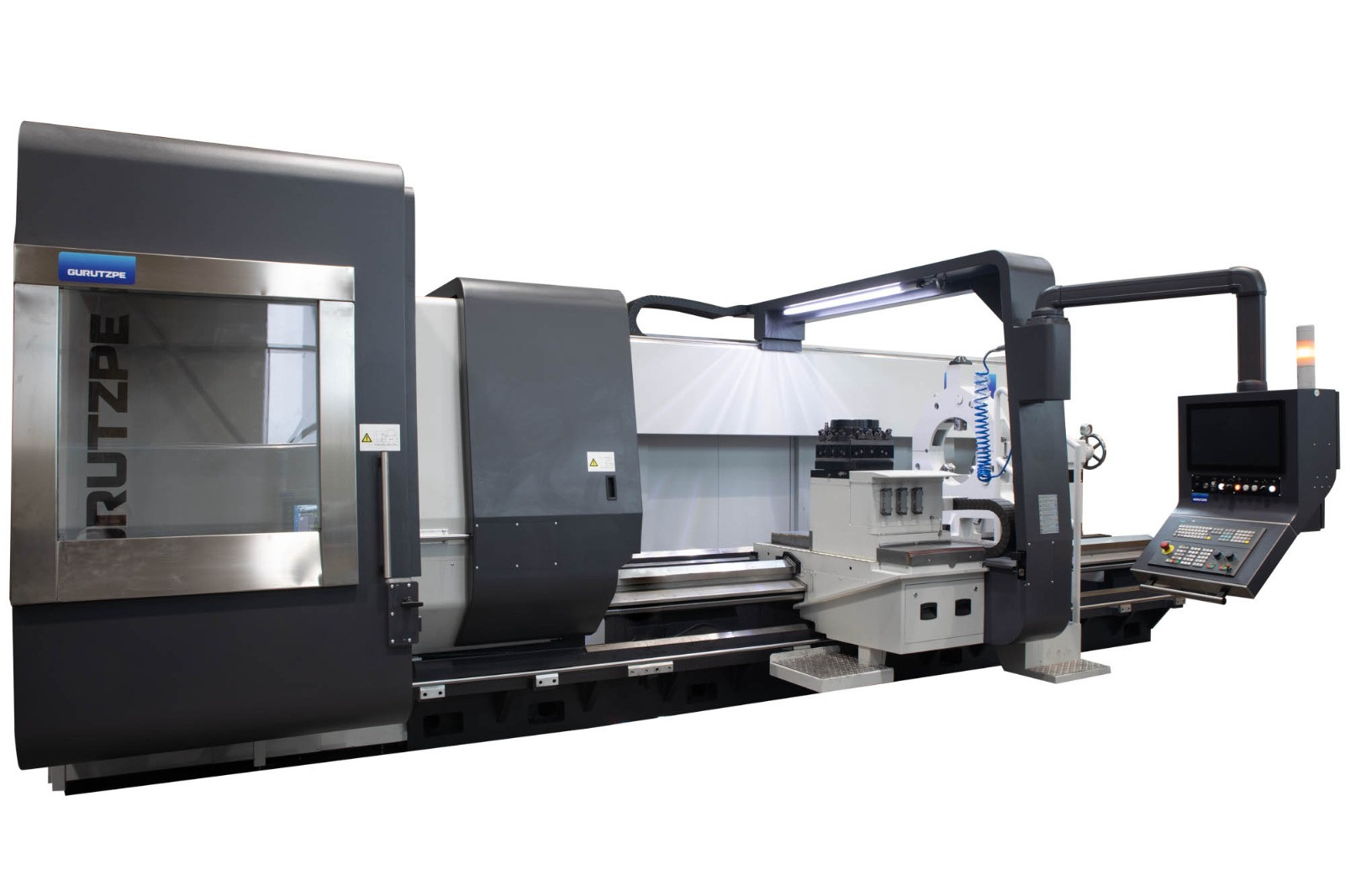

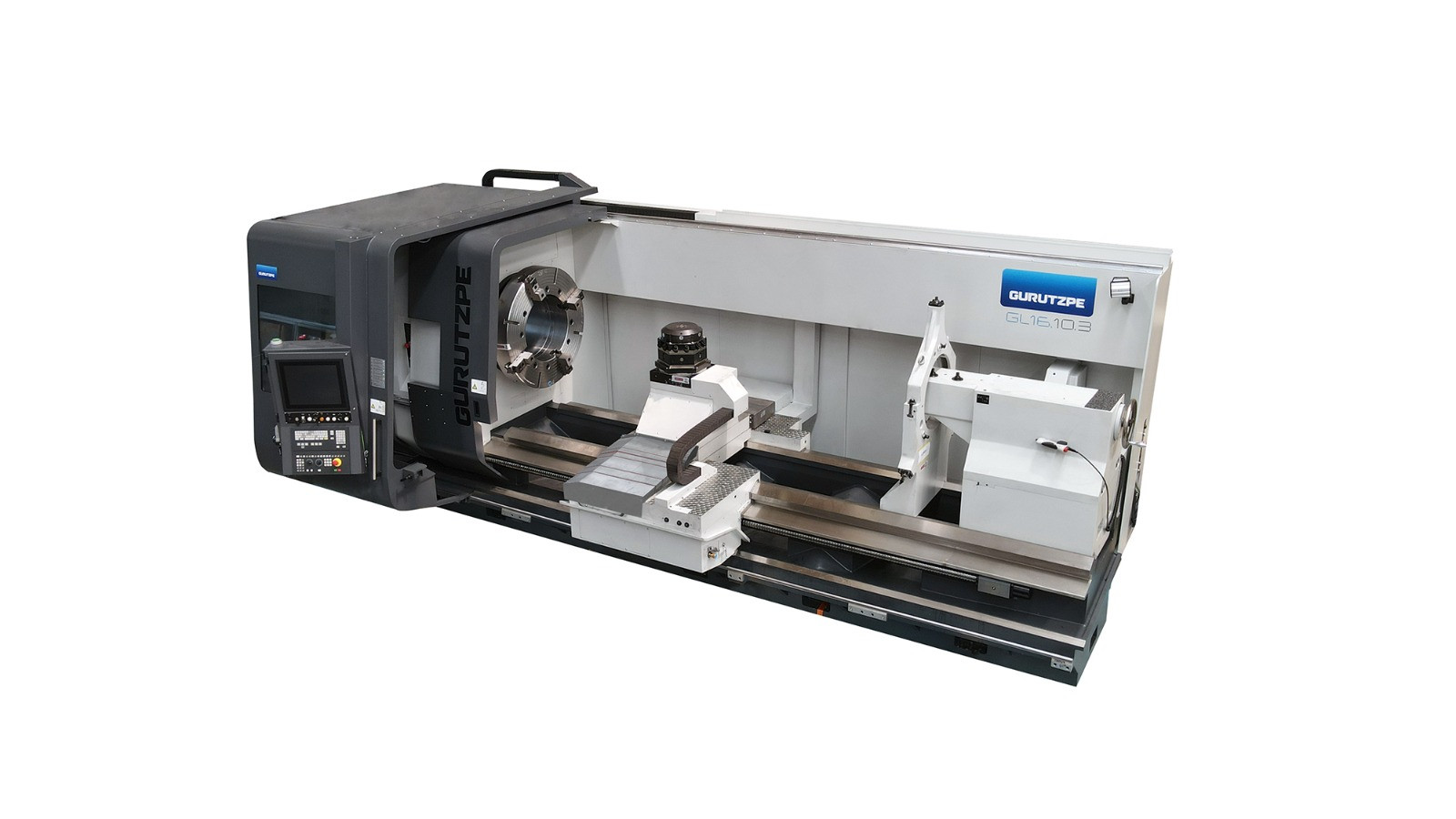

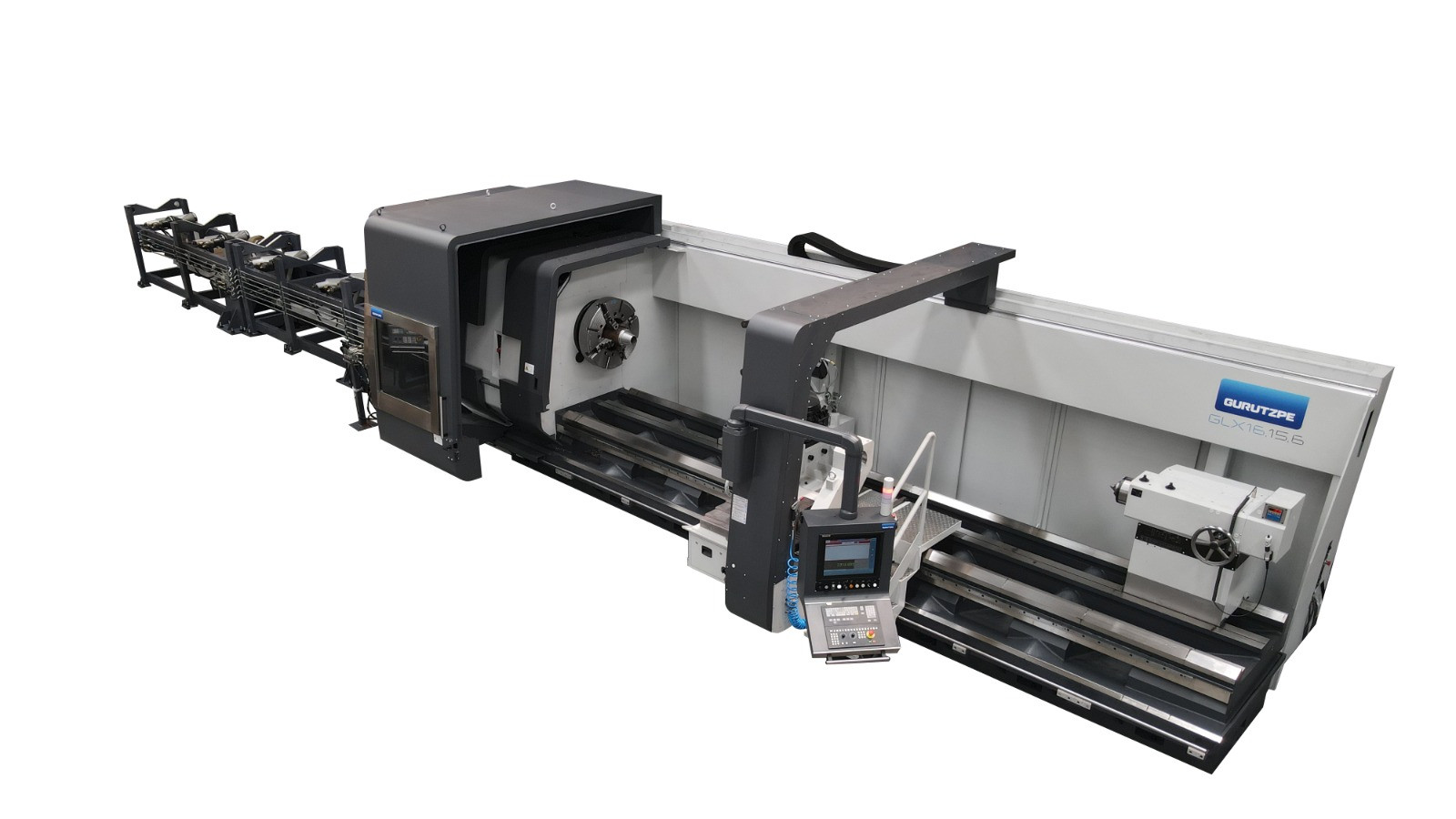

GURUTZPE Horizontal Flat-Bed Lathes – Series GL, GLX, and GLH

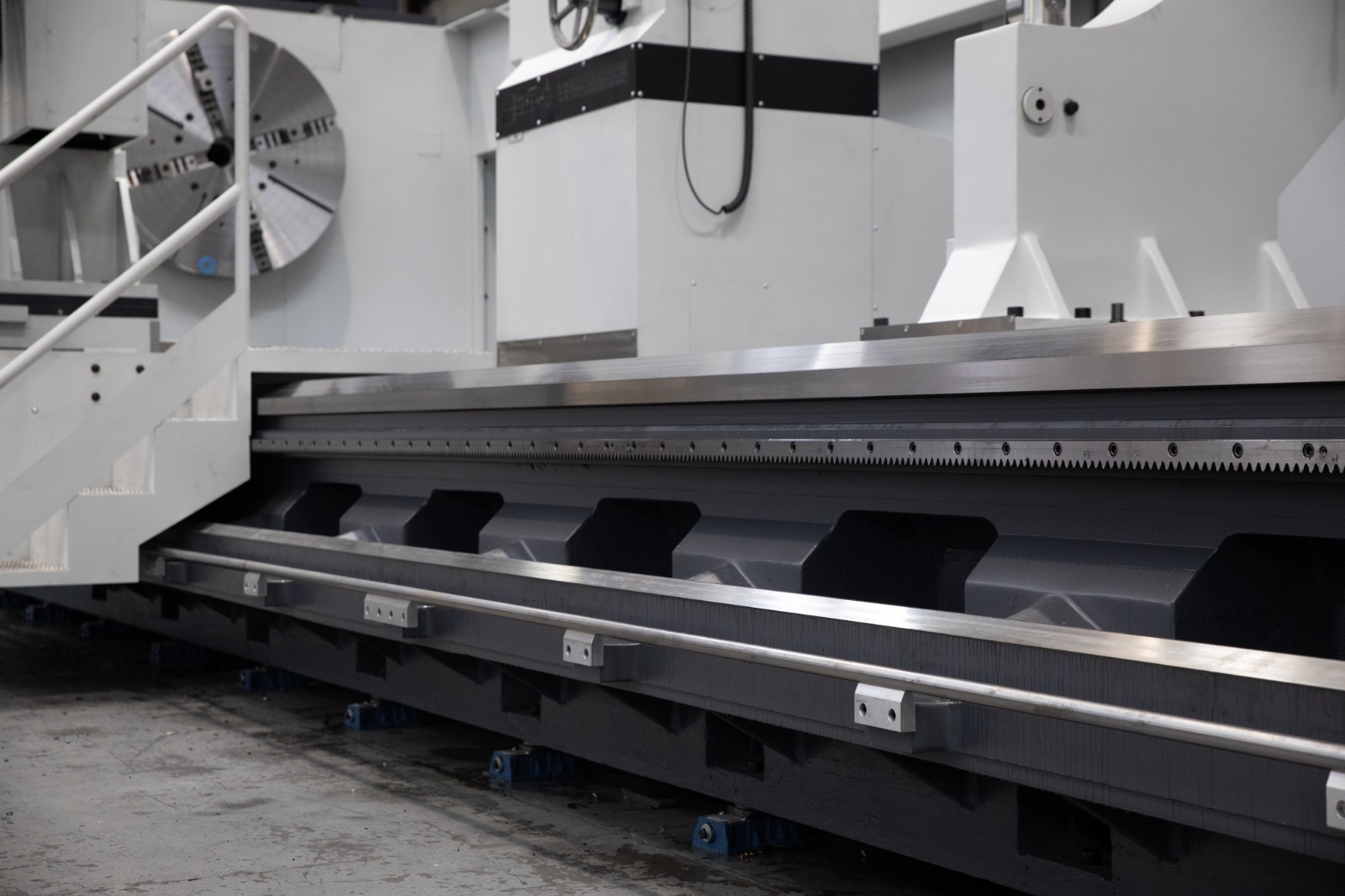

The GURUTZPE Horizontal Flat-Bed Lathes are designed to be incredibly reliable and precise in their machining. These lathes, which have a monoblock cast iron bed and are improved by a hydrodynamic guiding system, provide the stability and structural integrity required for excellent performance.

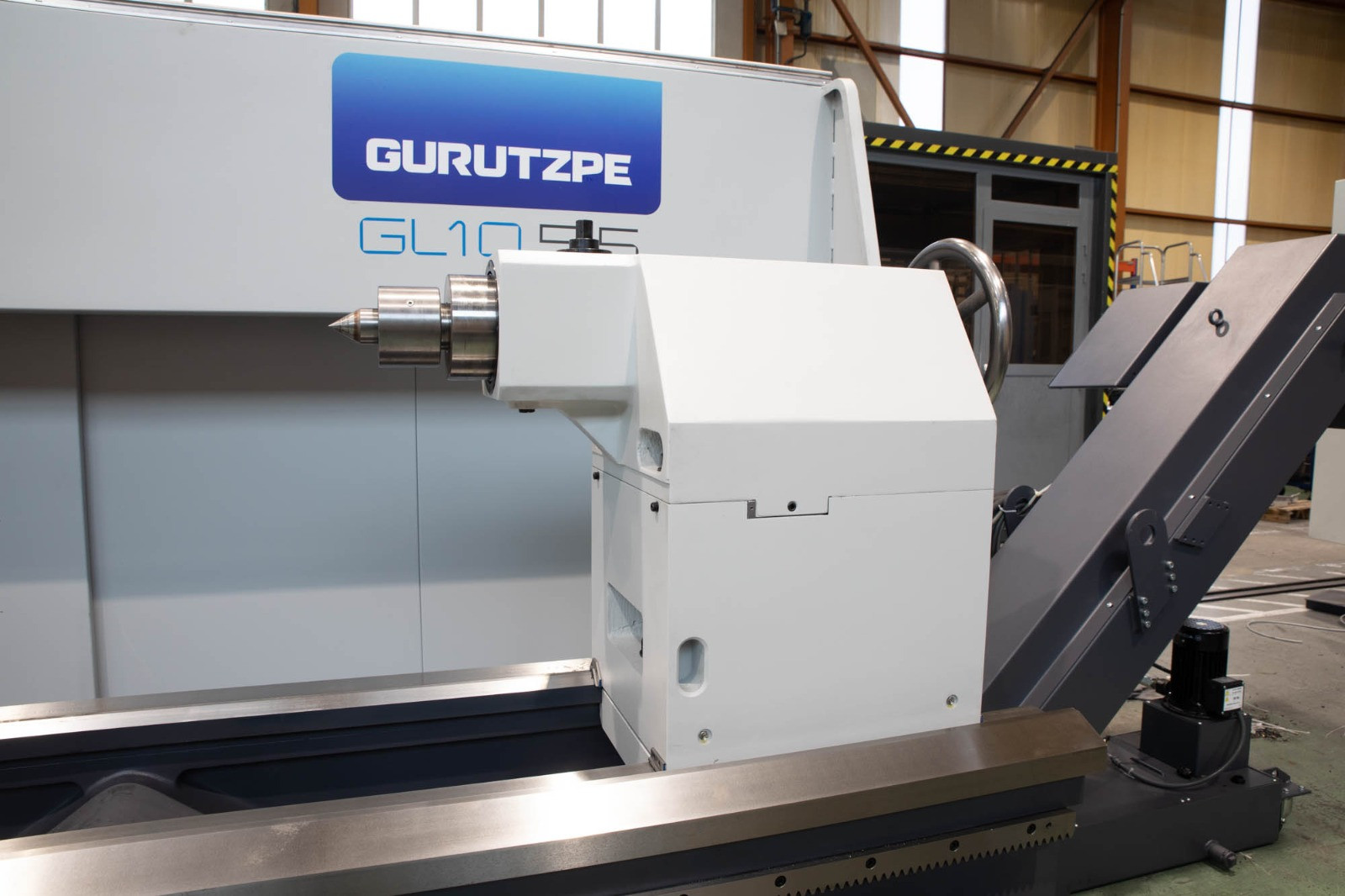

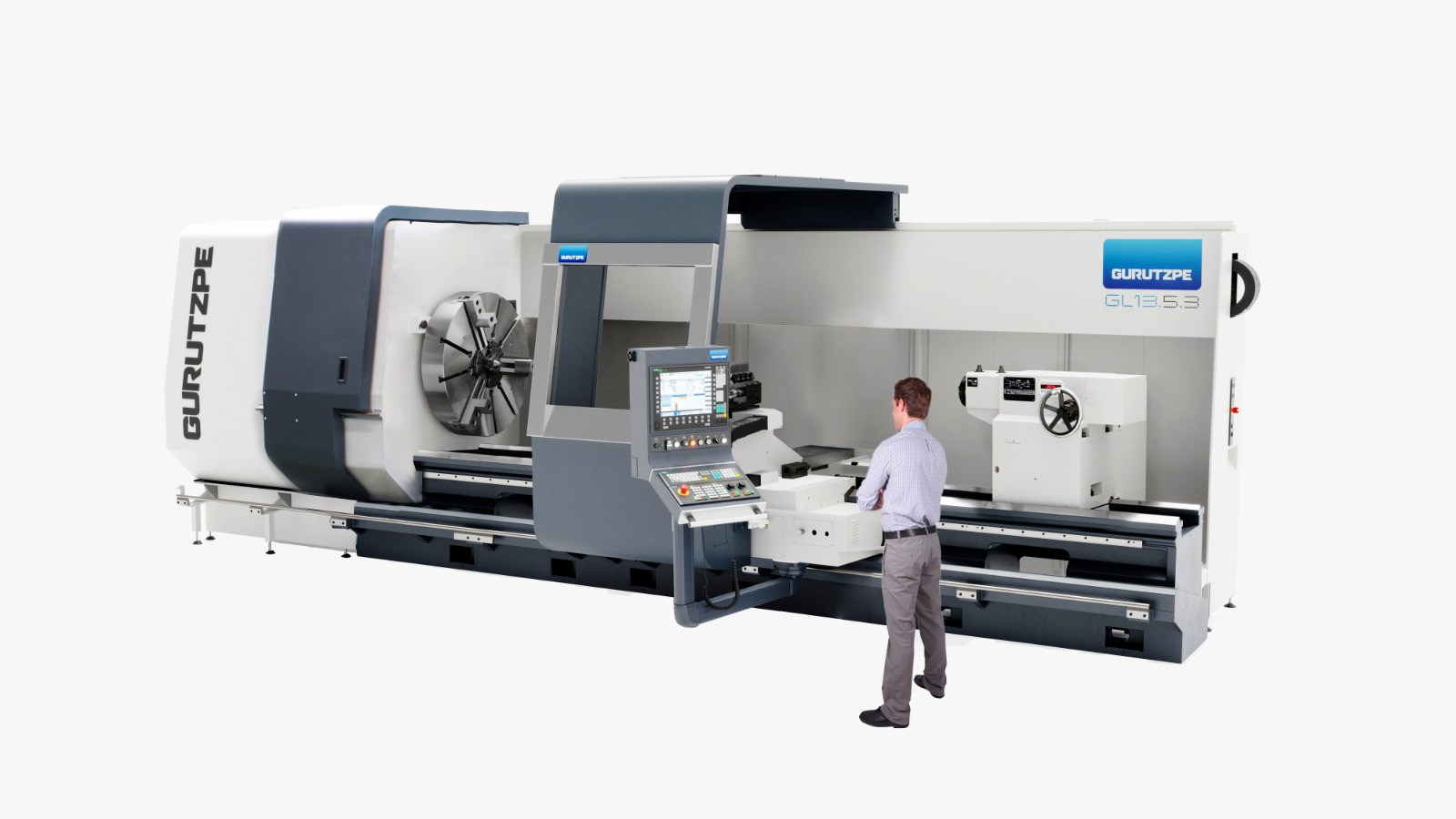

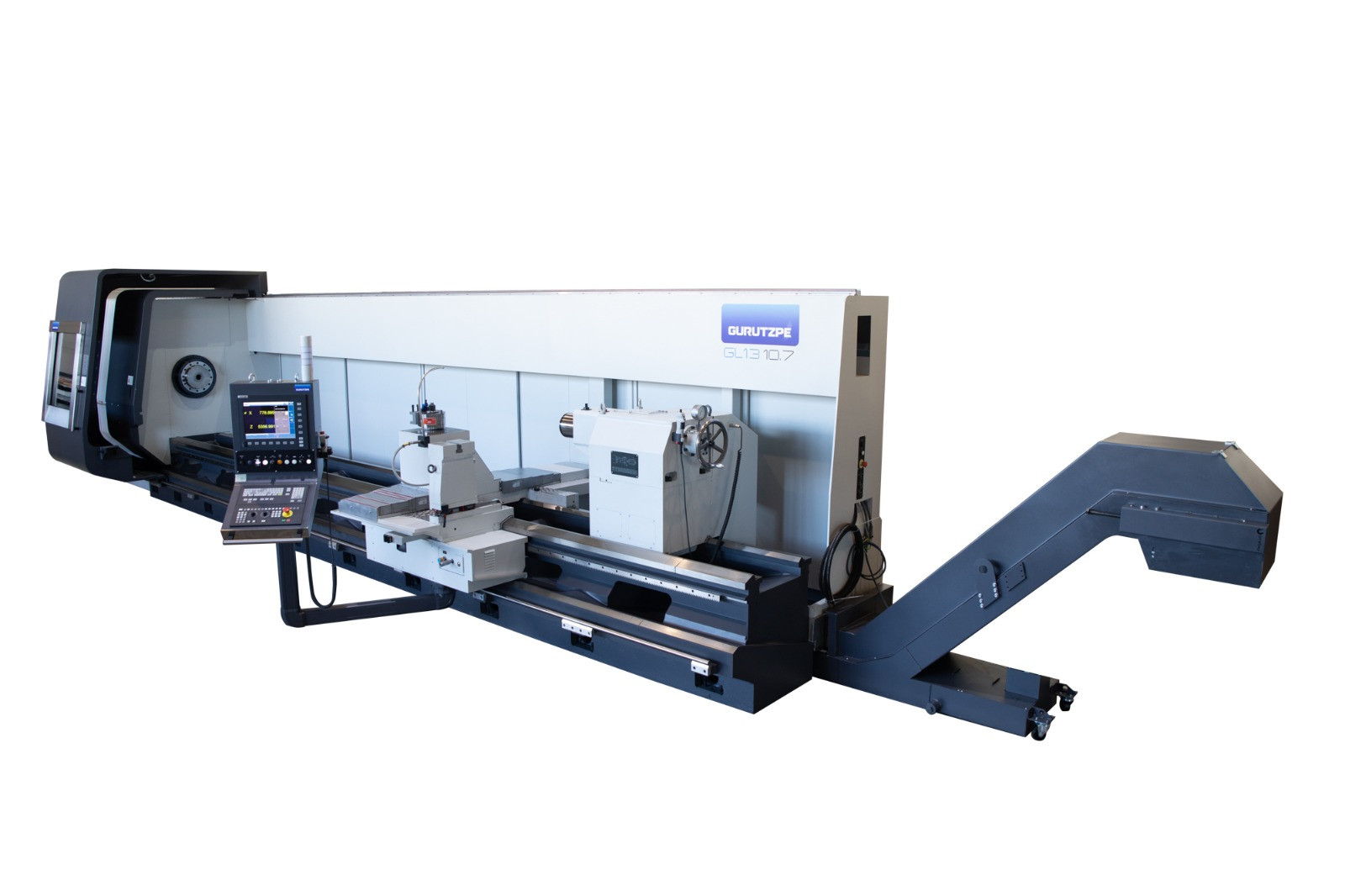

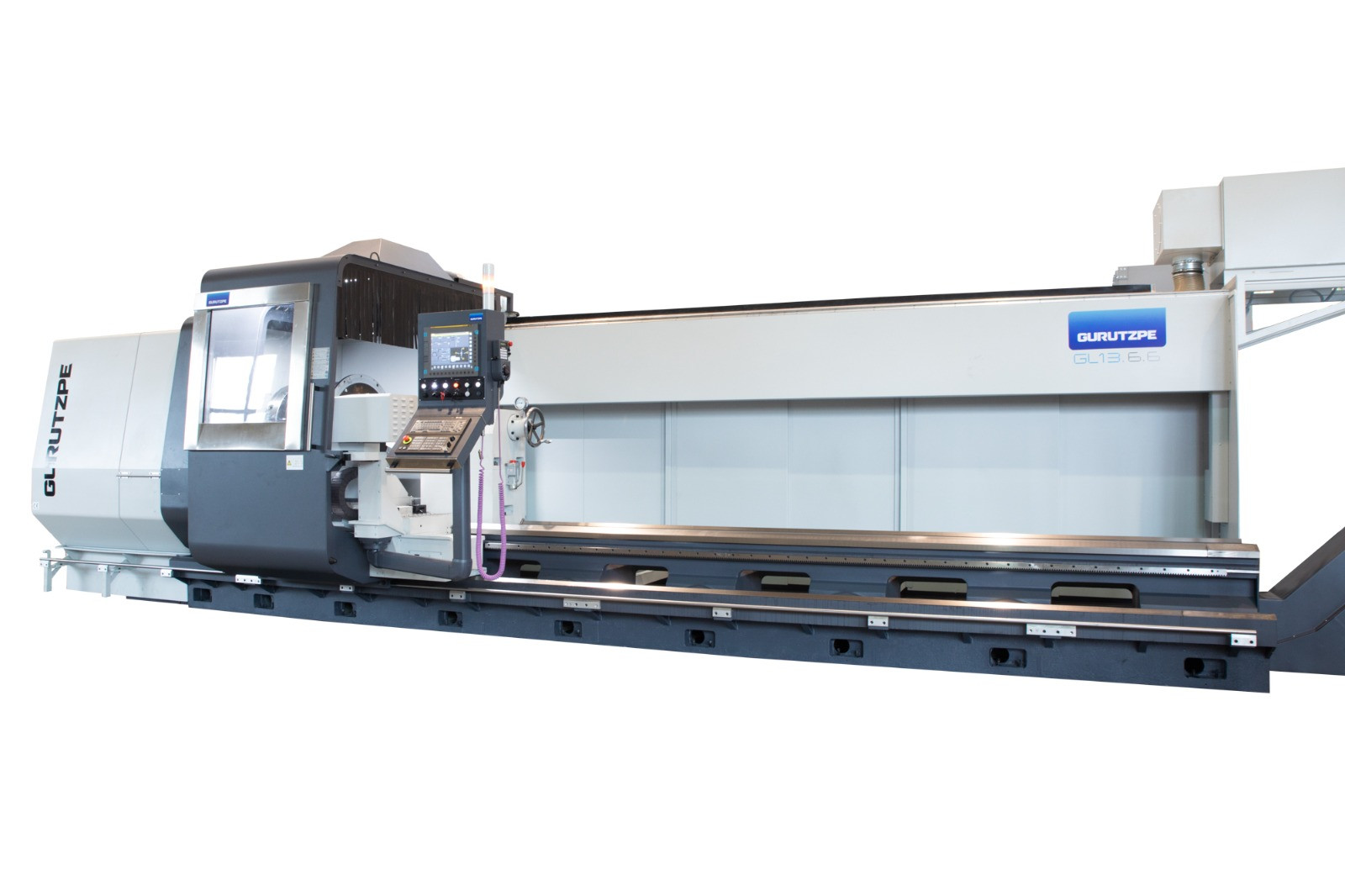

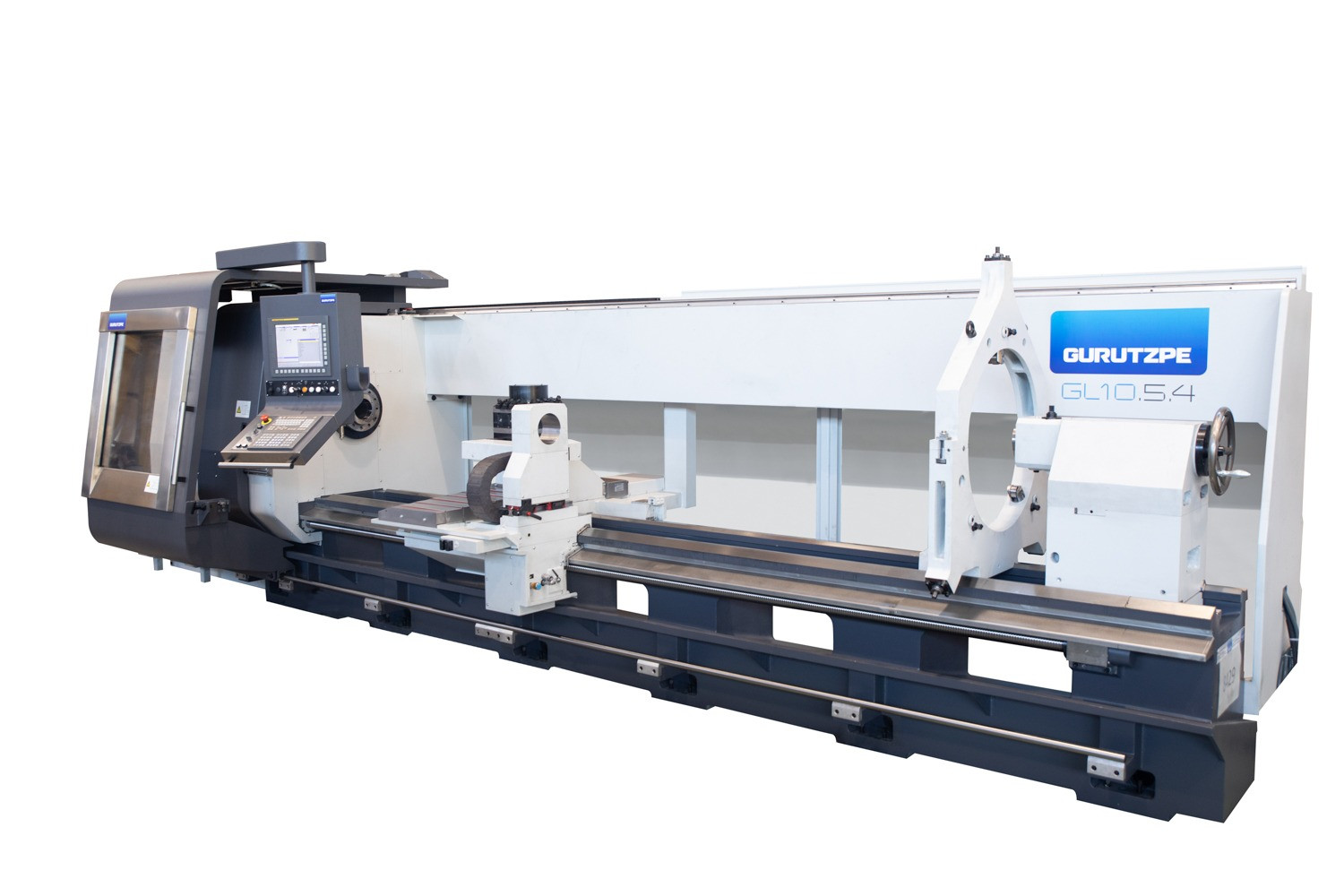

GL SERIES: This machine's cutting-edge characteristics provide remarkable durability, accuracy, and rigidity.

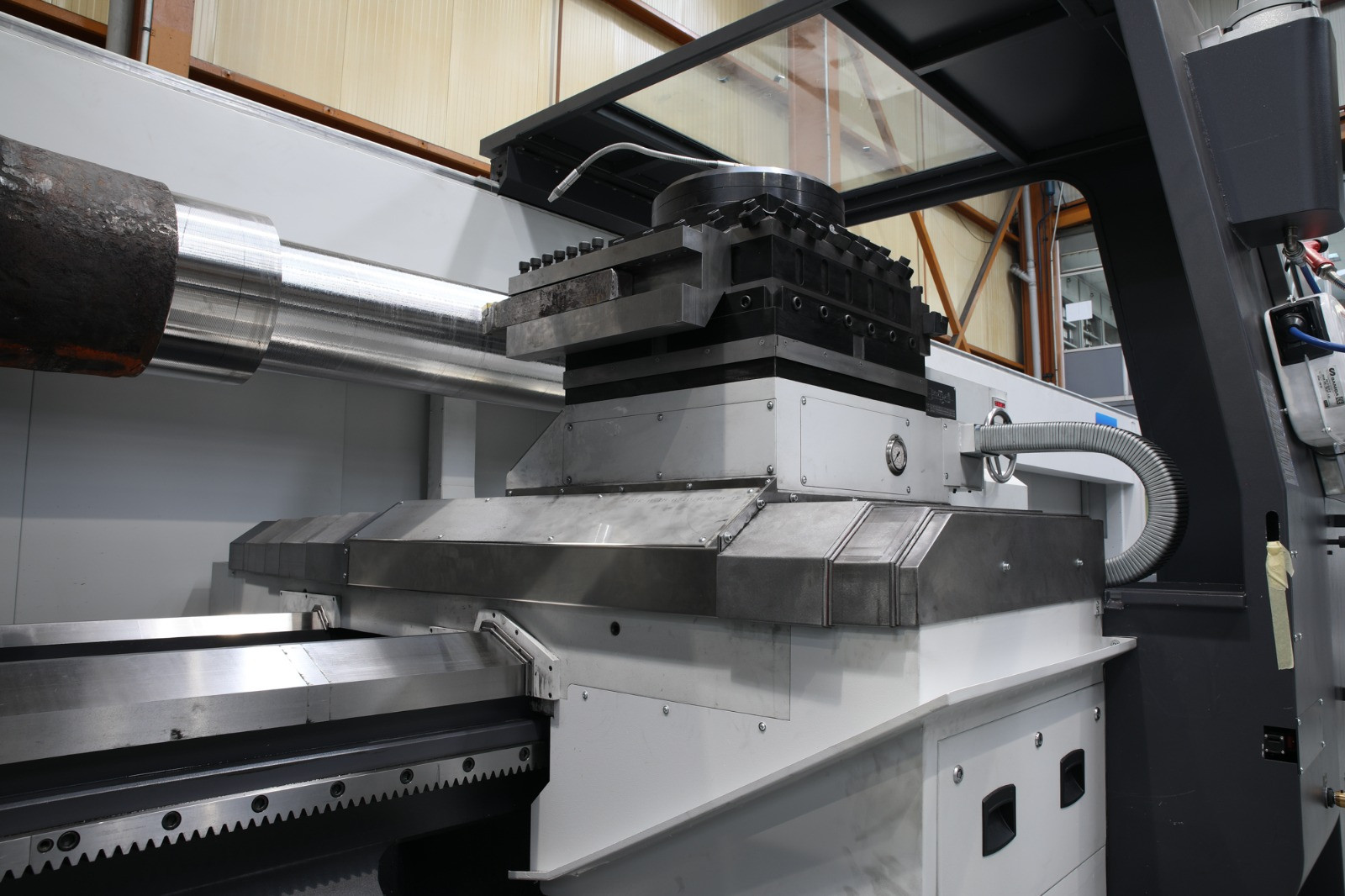

Stabilized GG30 cast iron is used to construct the whole structure, providing strong support for high-performance machining. The carriages use a thin oil sheet with centralized lubrication to glide smoothly on a unique anti-vibration Biplast material. The machine is optimized for both high-precision and heavy-duty applications thanks to this combination.

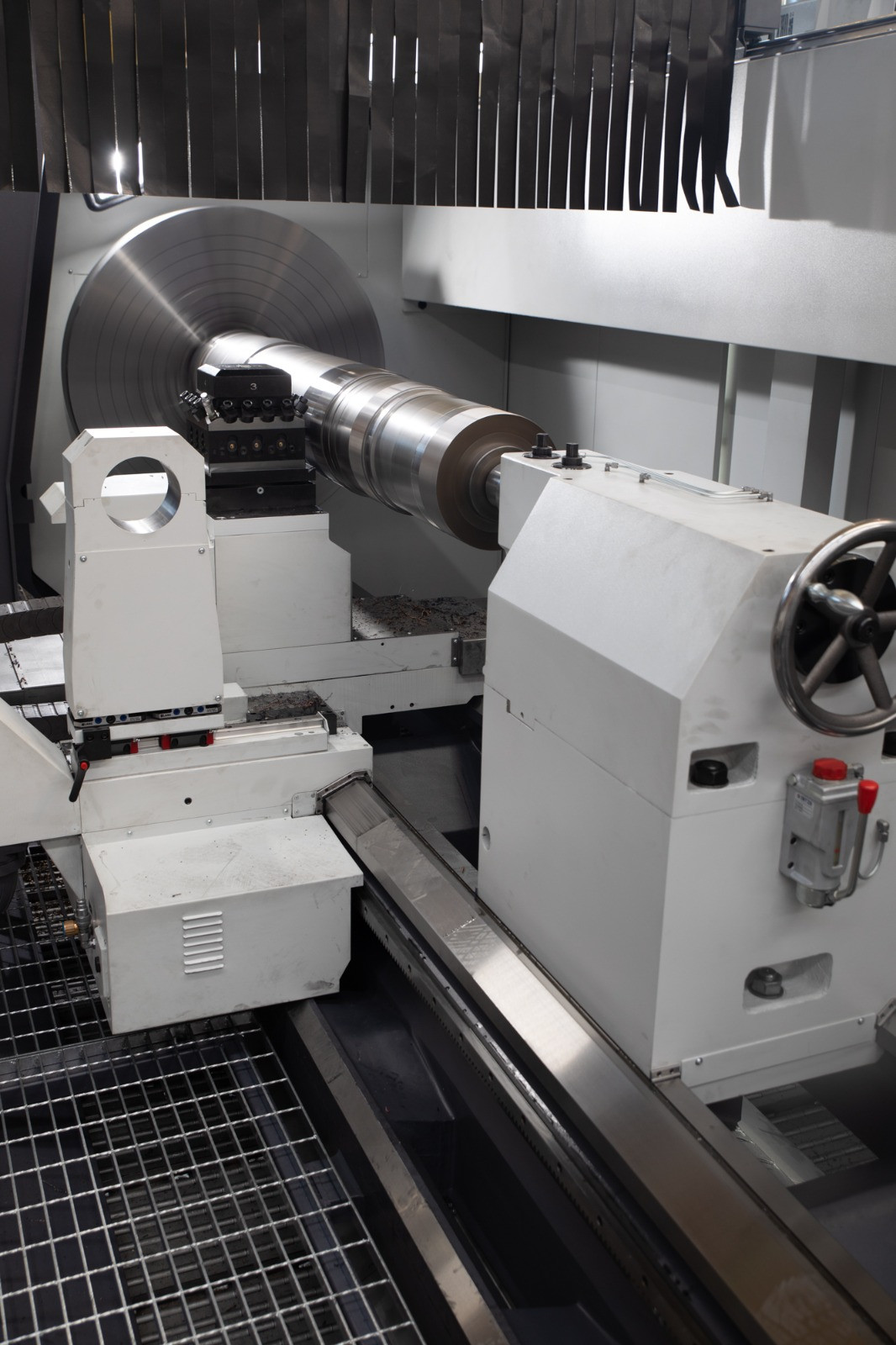

This model is an incredibly versatile creation that can be efficient at machining a whole range of parts, from forming rollers and power generation shafts to threads pipes for oil and gas industries.

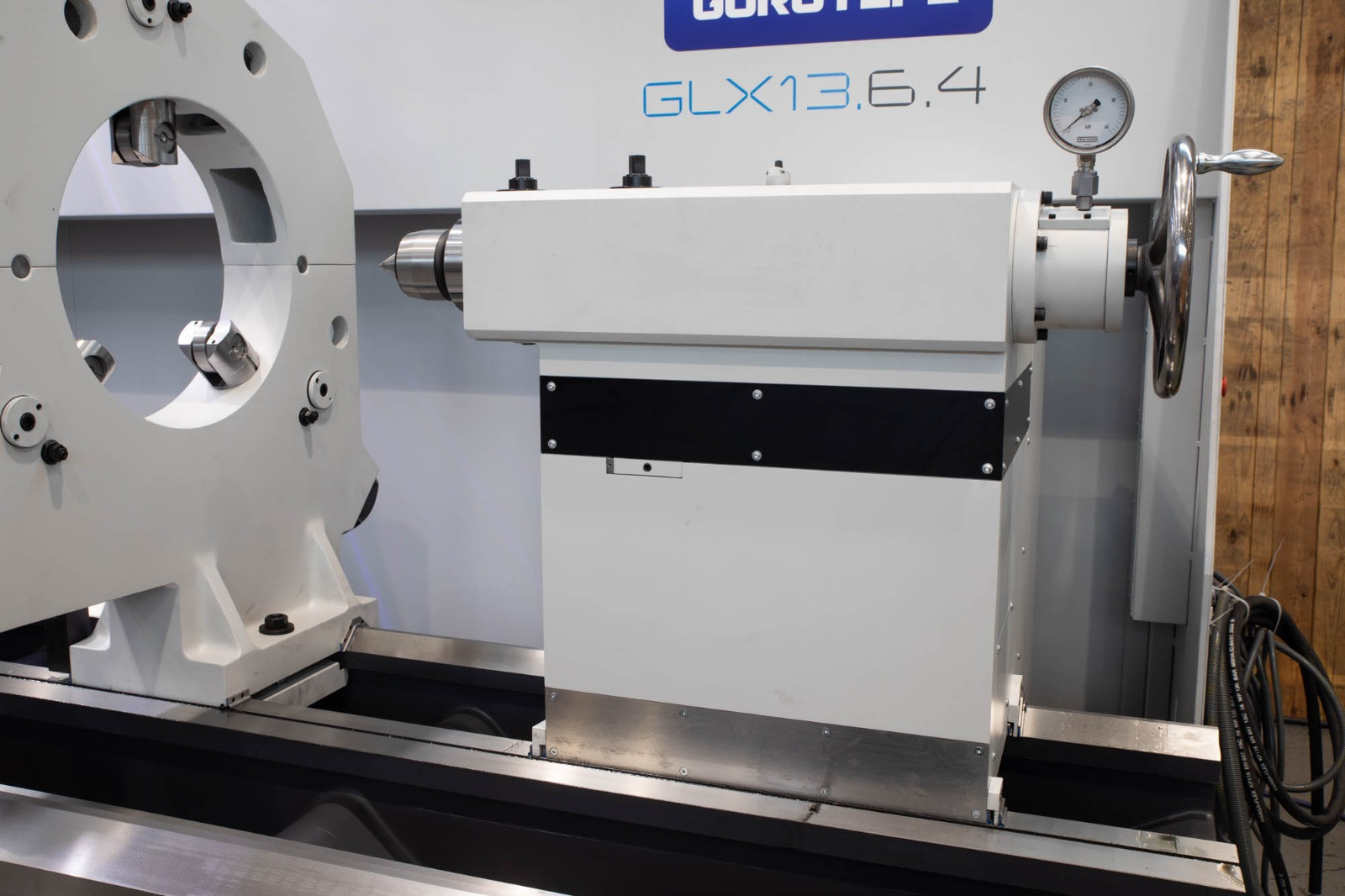

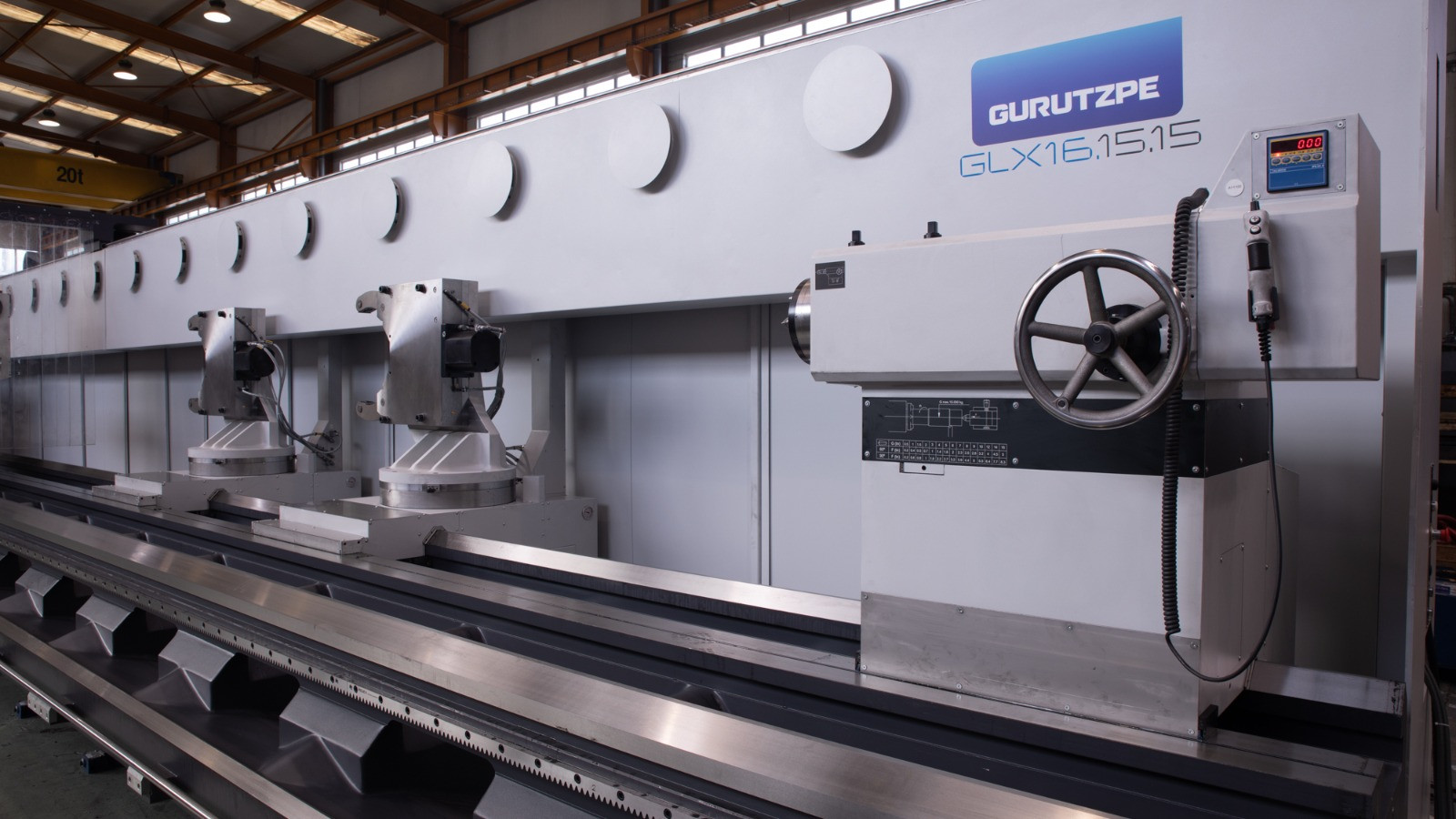

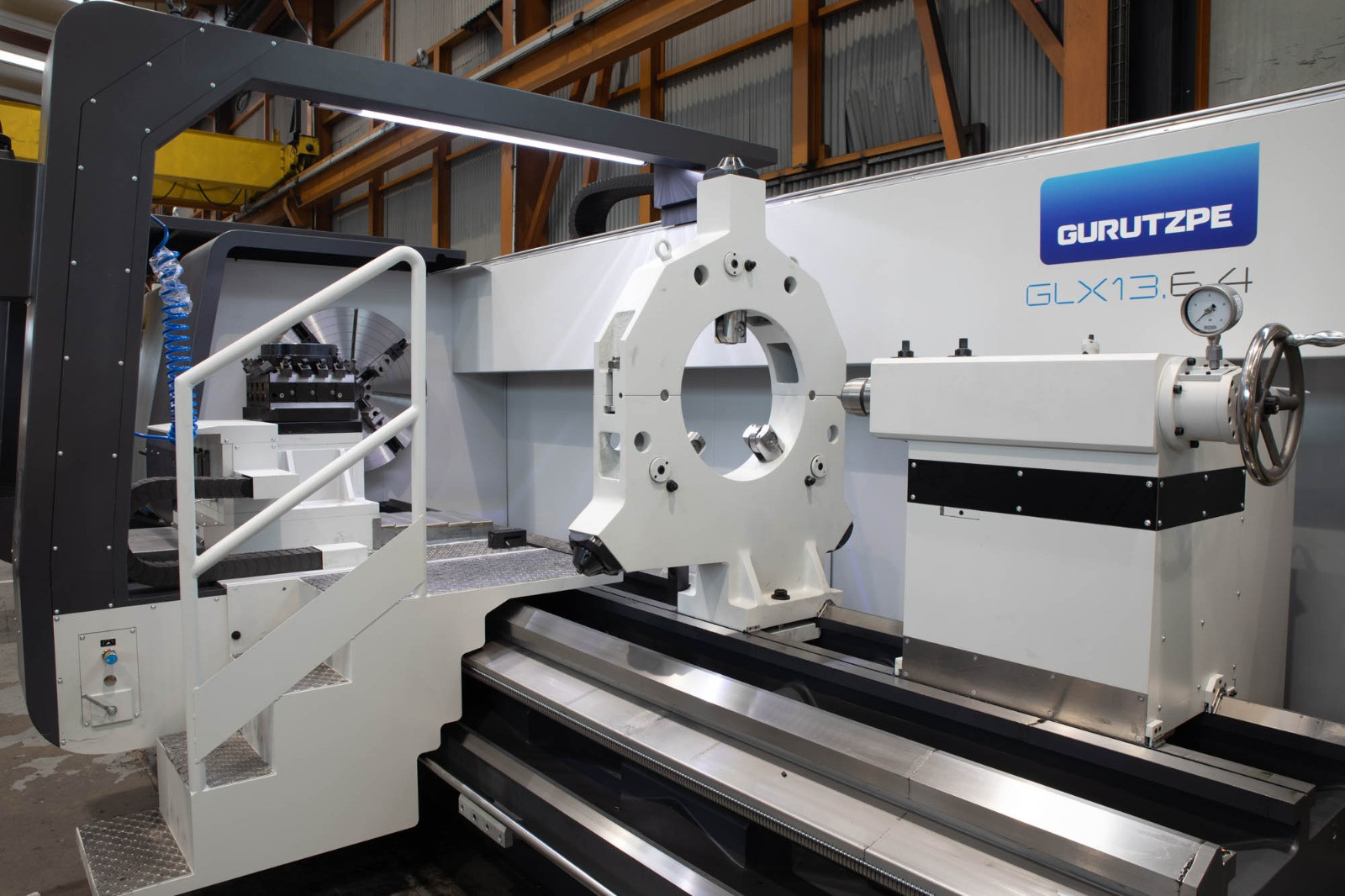

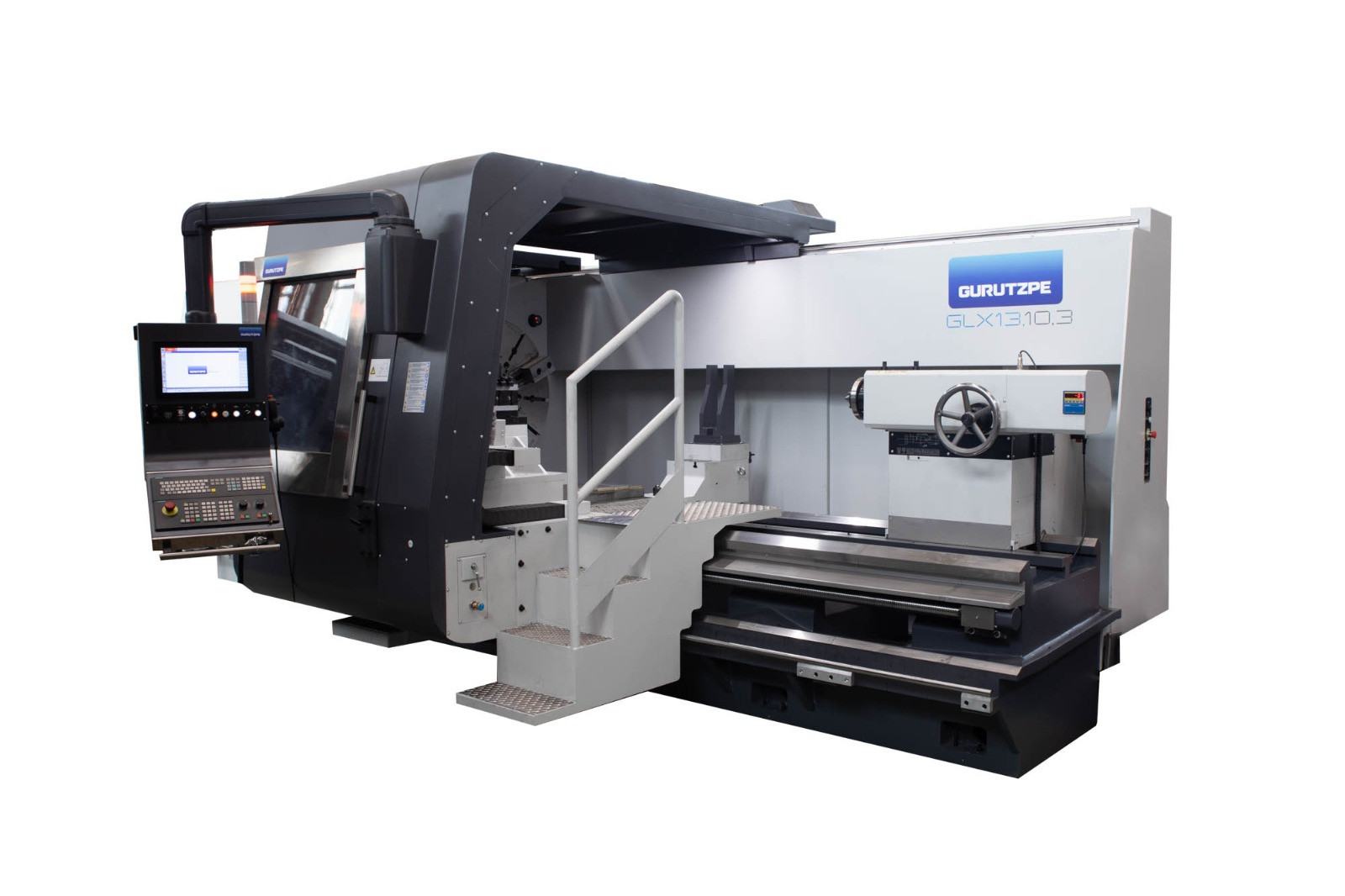

GLX SERIES

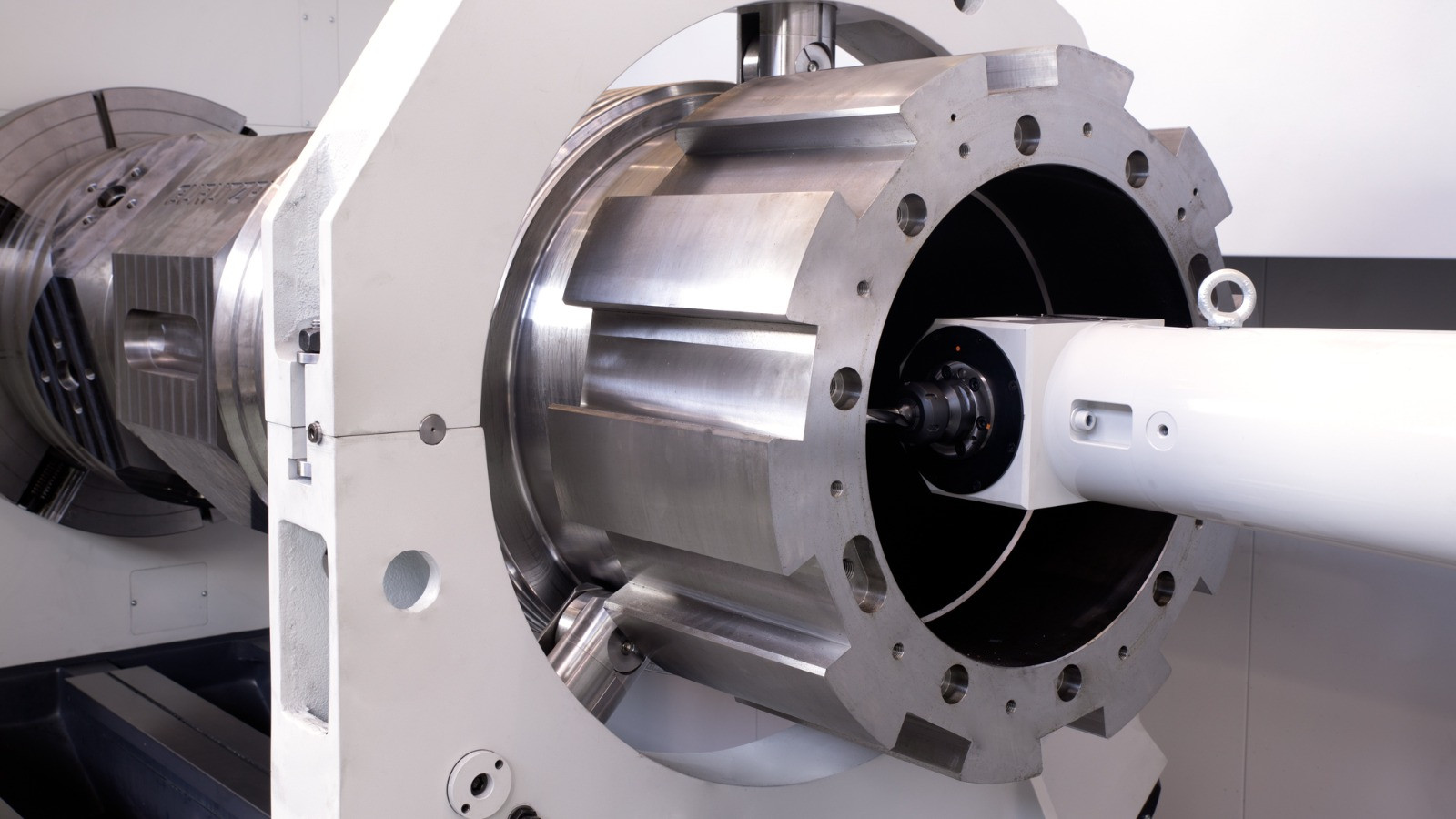

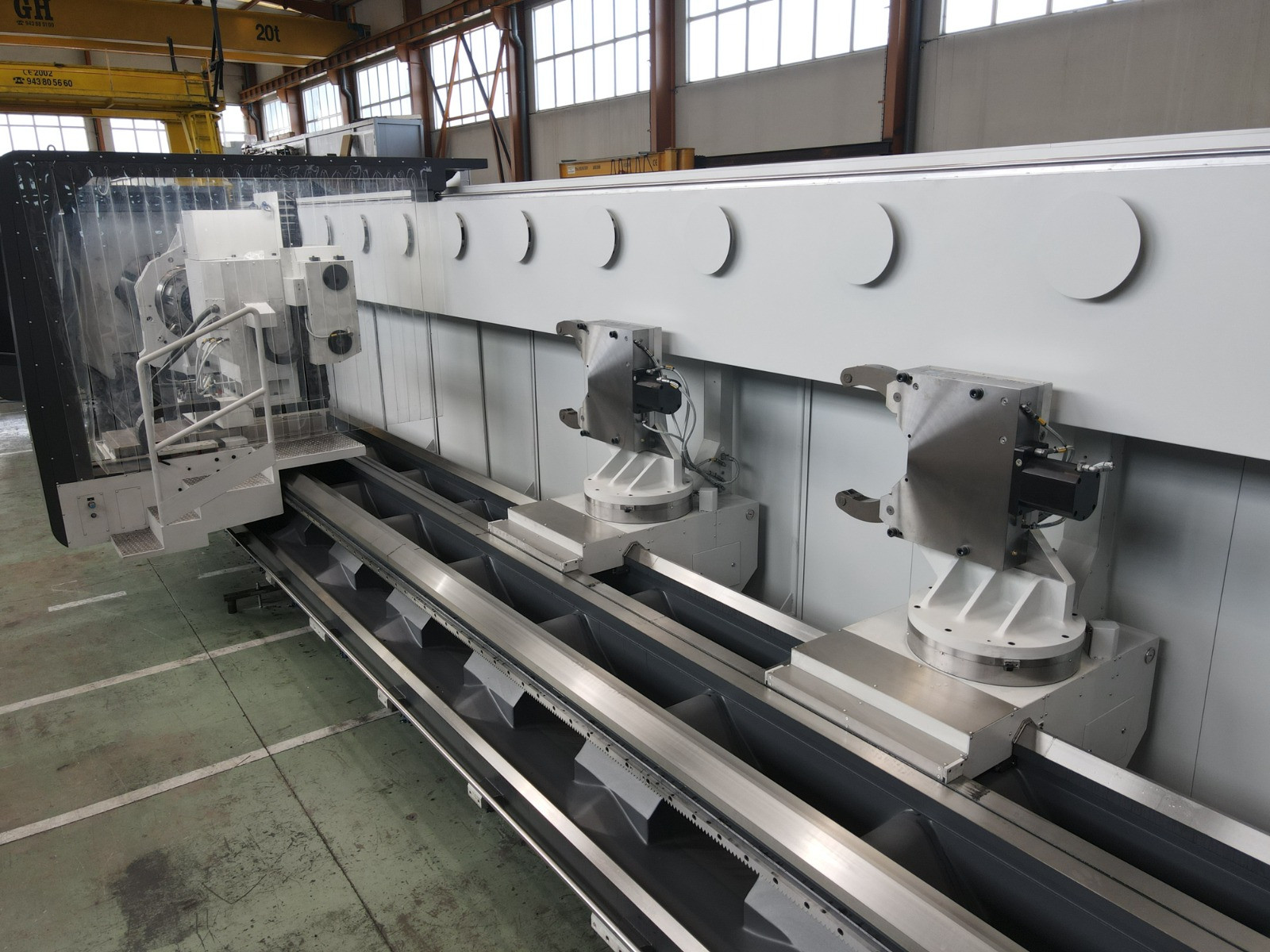

This machine comes with four gilding rails divided into two dedicated sections- one for the tool carriage and another for the tailstock and steady rests. Complete machining can be done in a single setup using this configuration, allowing the tool to travel smoothly and uninterruptedly across the steady rest.
Cycle times and process steps are greatly shortened by this design, which saves a large amount of money.
GLH SERIES :
Flexibility coupled with carriage capabilities, that is what the GLH lathe is known for, alongside with maximum rigidity, precision, durability, as well as ergonomics. This intricacy helps operators to easily monitor the machining process comfortability and safety of the work environment. These characteristics have made the GLH lathe an excellent option for a variety for machining tasks, giving way for an easy and efficient machoning of large parts.

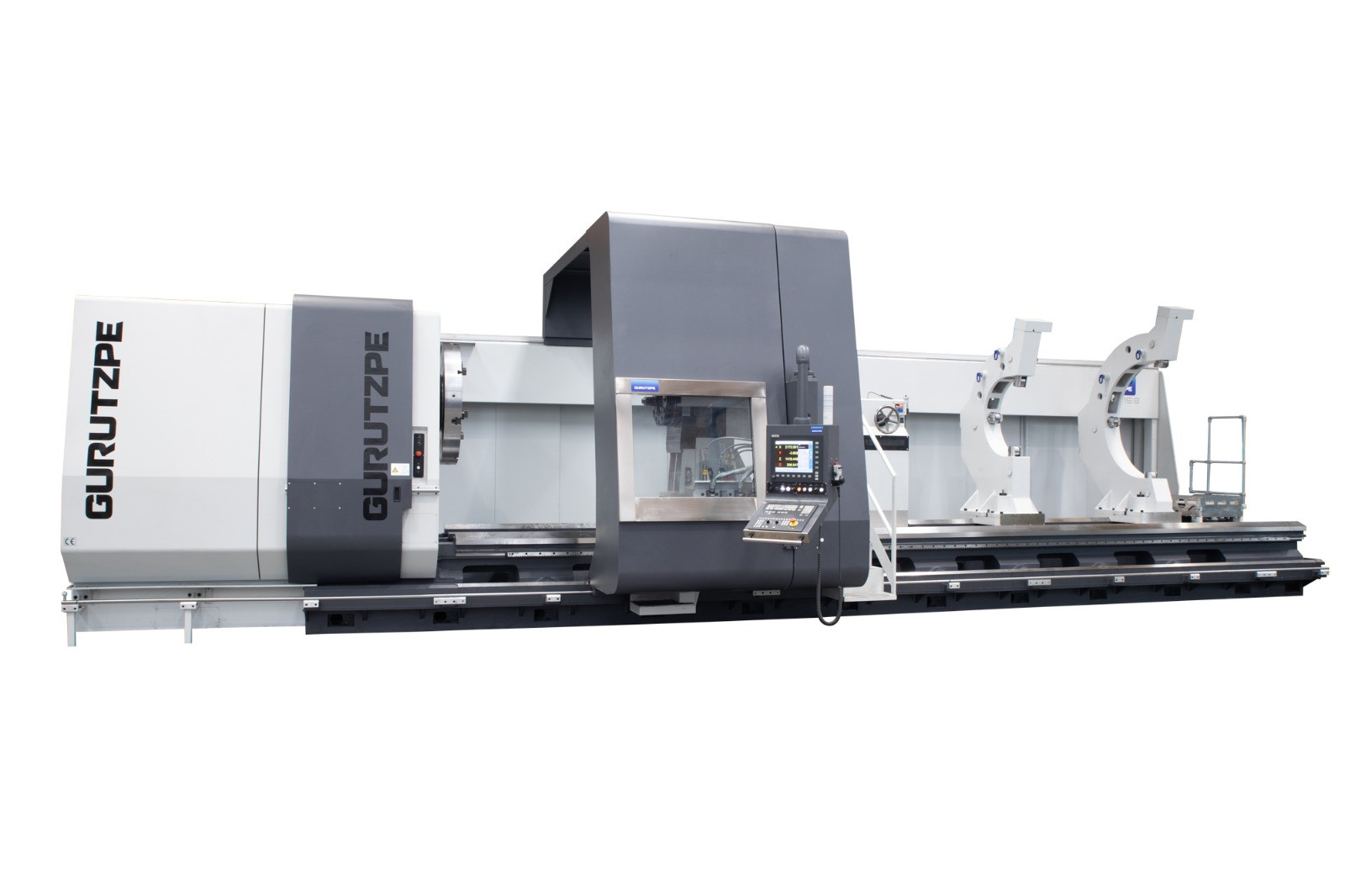

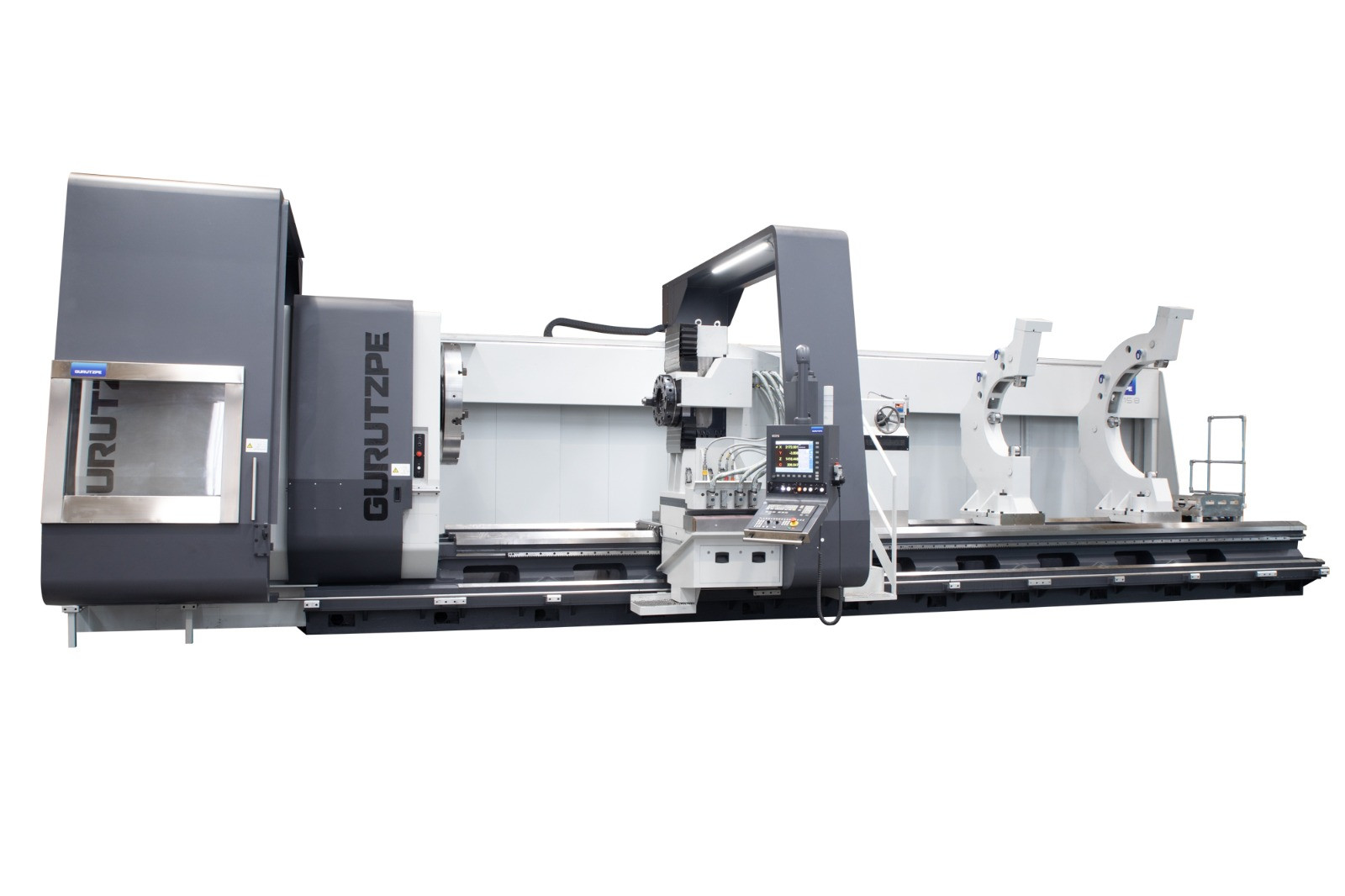

Horizontal Hydrostatic Lathes - GH series

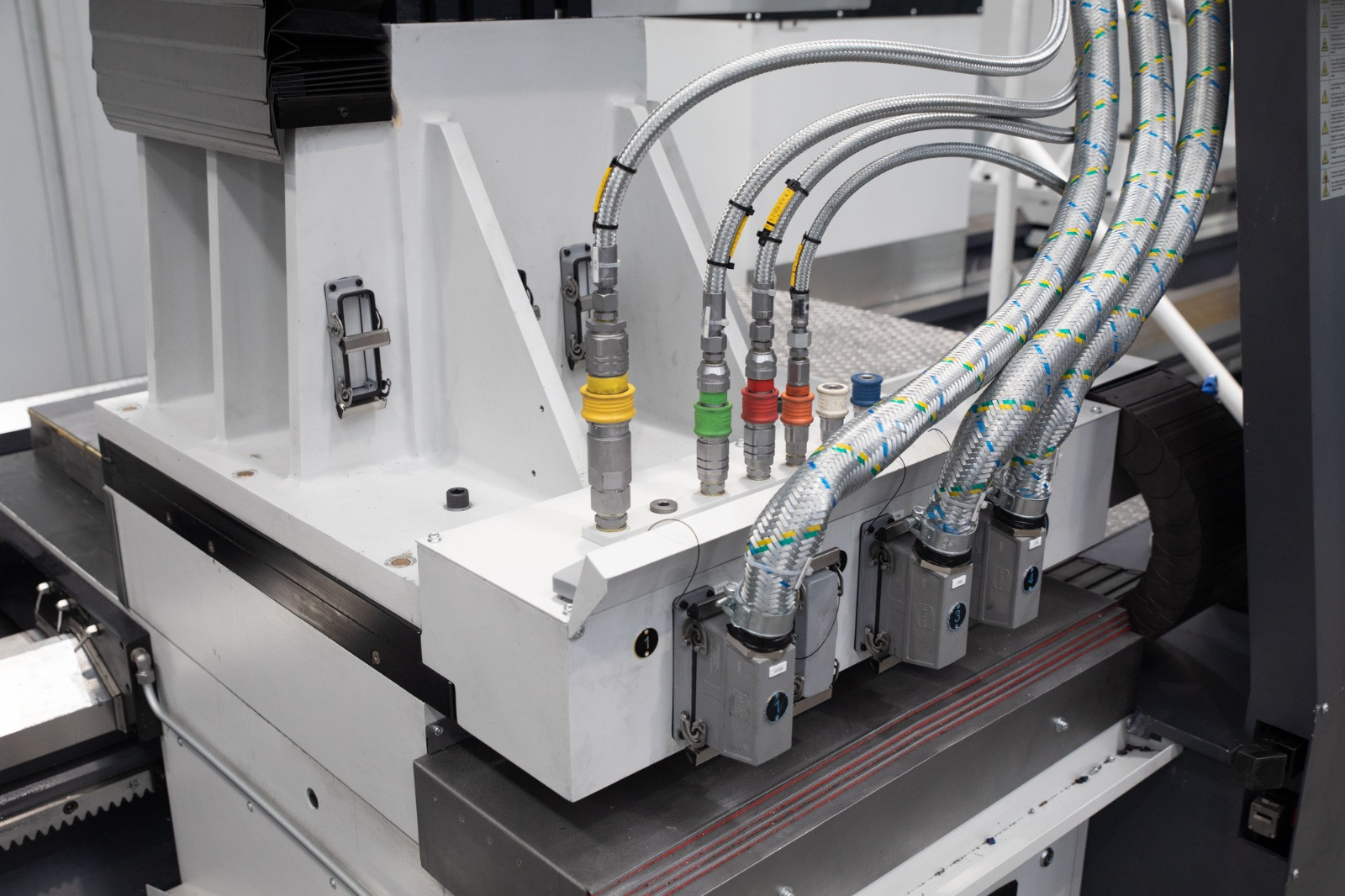

The hydrostatic guiding system uses pump-per-pocket hydrostatic technology and functions both longitudinally and transversely. It is the best guidance system for large precision machinery because of its sophisticated design, which guarantees unparalleled performance in terms of rigidity, damping, positioning accuracy, and longevity.
GHH SERIES

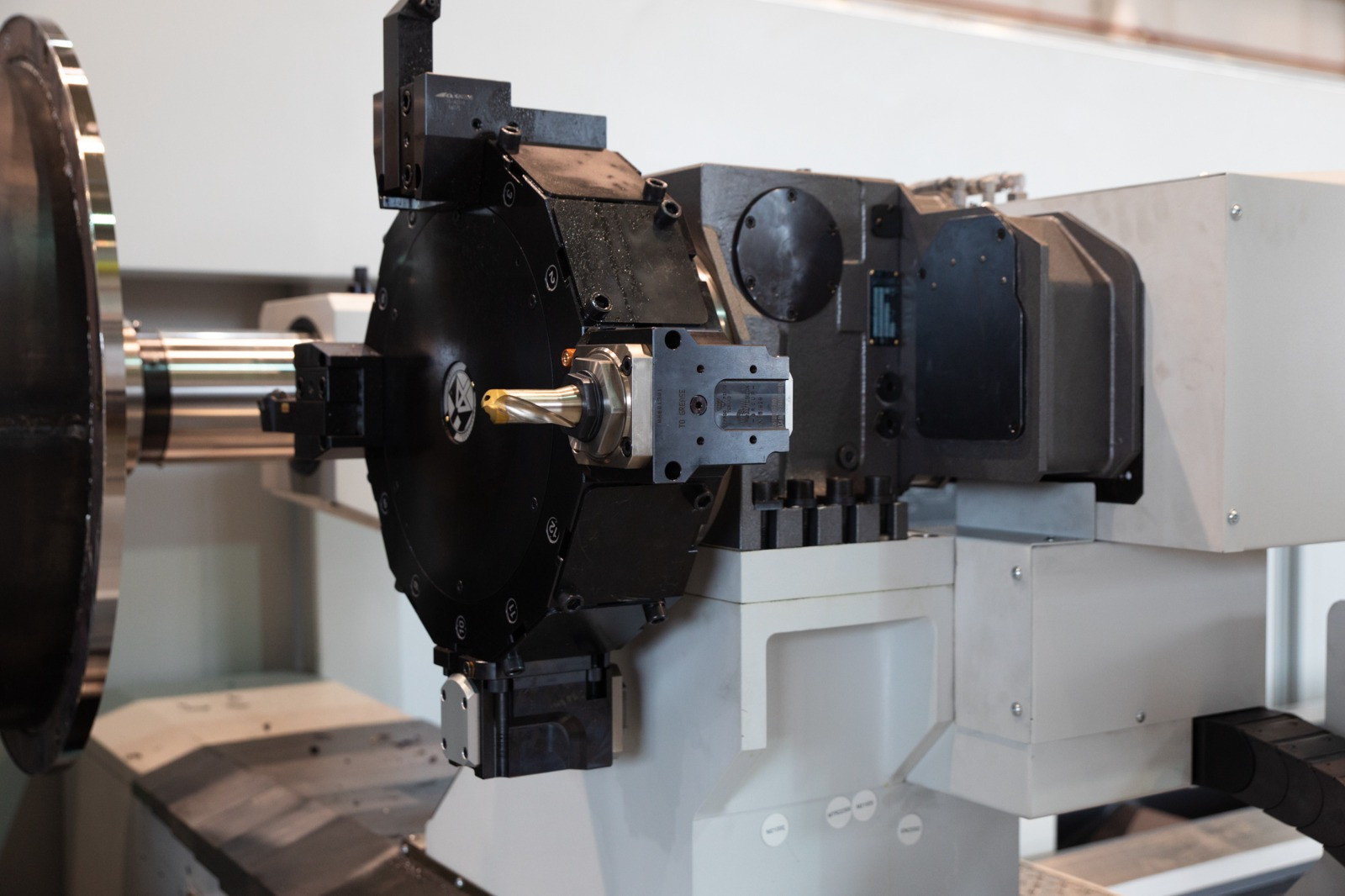

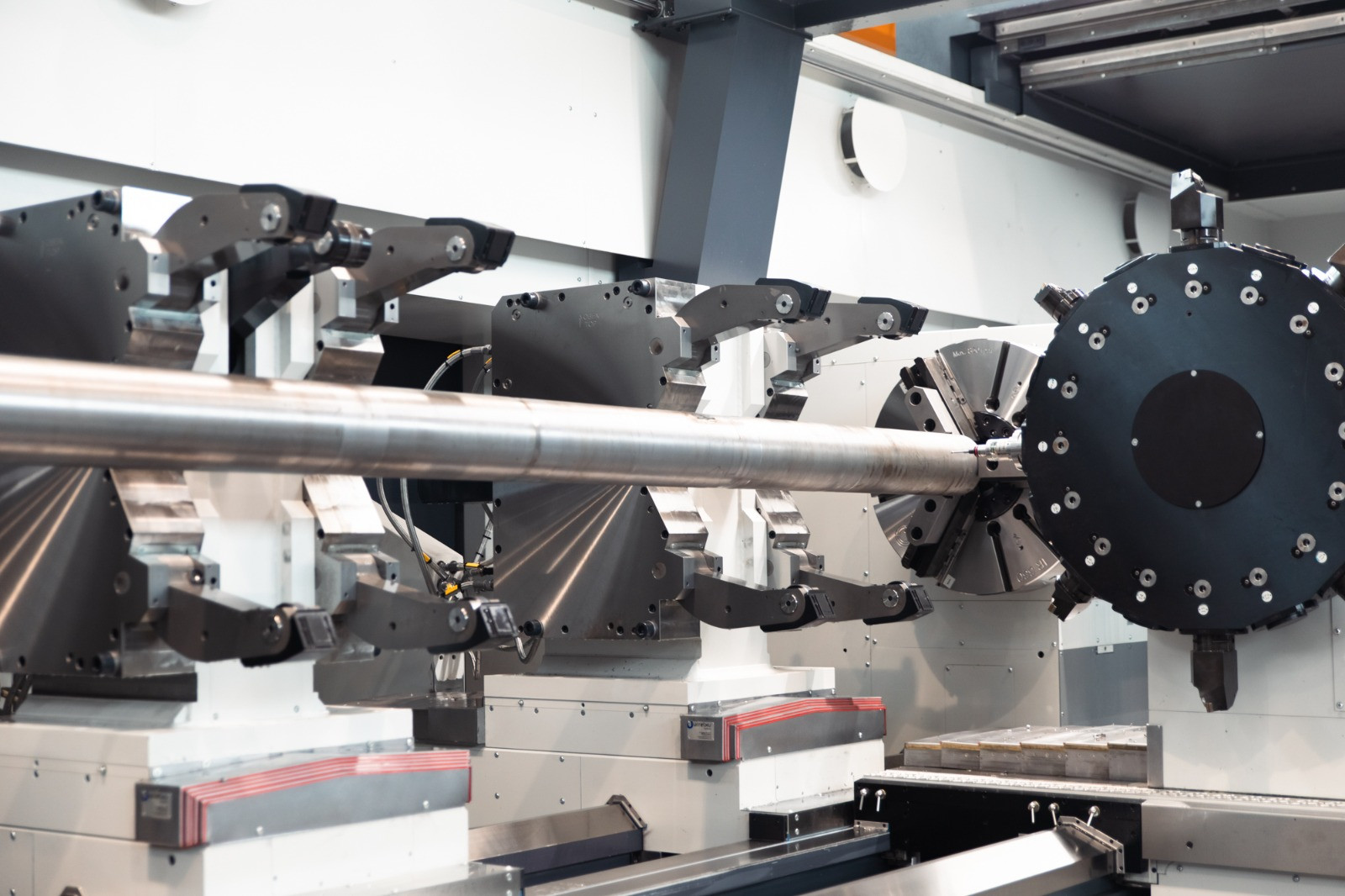

This machine comes with a hydrostatic guiding system for longitudinal and transverse capabilities by using the pump - per - pocket hydrostatic technology to make sure of exceptional damping as well as accuracy for almost all heavy duty applications. This machine is built to handle huge, intricate parts, with a maximum diameter of 3,000 mm and a weight capability of up to 90 tons between centers. In order to increase adaptability and efficiency for a variety of machining demands, it also provides a range of attachments, such as automatic head and tool changers, specialized heads (such as internal, angular, and grinding), a two-blade column with central milling, and numerous steady rests.

GHD SERIES
Its an ideal machine for large toonage and has a maximum diameter of 4,000 mm and weight capacity of up to 200 tons between centers. Thanks to its exceptional rigidity, the hagh damping absorbs the fluctuations in loads to enhance accuracy. With a maximum diameter of 3,000 mm and a weight capacity of up to 90 tons between centers, this machine is designed to handle large, complex pieces. It also offers a range of attachments, including automatic head and tool changers, specialist heads (such as internal, angular, and grinding), a two-blade column with central milling, and several steady rests to enhance flexibility and efficiency for a range of machining applications.

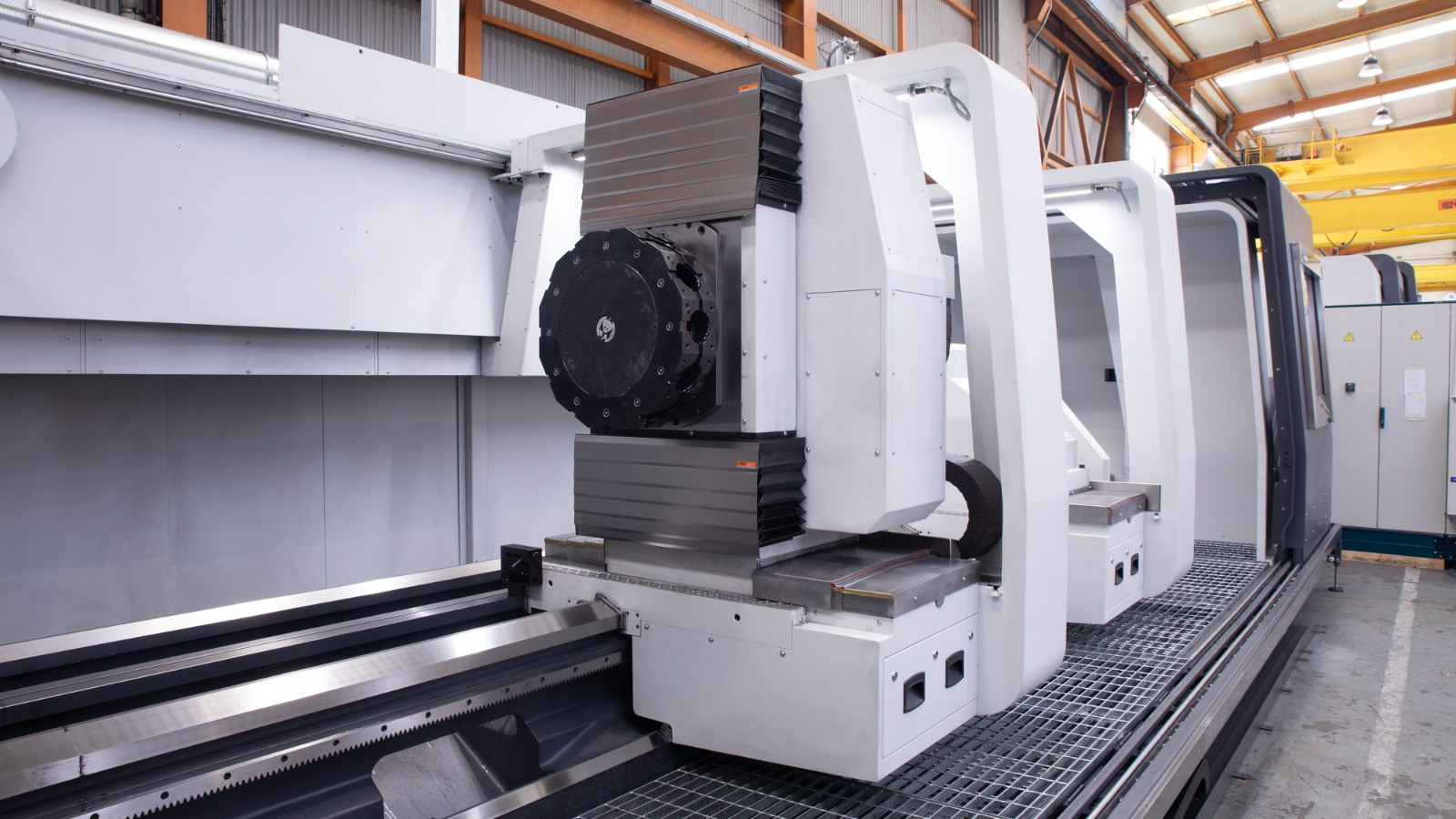

Slant - bed turn mill
GS SERIES
GURUTZPE expands its line of integrated machining solutions for rotating parts with the introduction of the GSM Series. To satisfy the highest market needs, this series makes use of cutting-edge technologies. The multipurpose GSM10, GSM13, and GSM16 TurnMills have complete 5-axis turning, milling, and boring capabilities, enabling the best possible machining of items up to 20 tons in weight, 10 meters in length, and 1.6 meters in diameter. These highly automated machines allow for the whole machining of workpieces in a single setup. Reliable performance is ensured throughout the machining process since the swing over the bed and carriage is notably constant with that over the bed, both of which are constrained by the back wall.
Applications
Aerospace
Oil & gas
Paper and pulp
Railway
Industrial machinery
Steelwork
Energy
Naval
