Bed Milling Machines

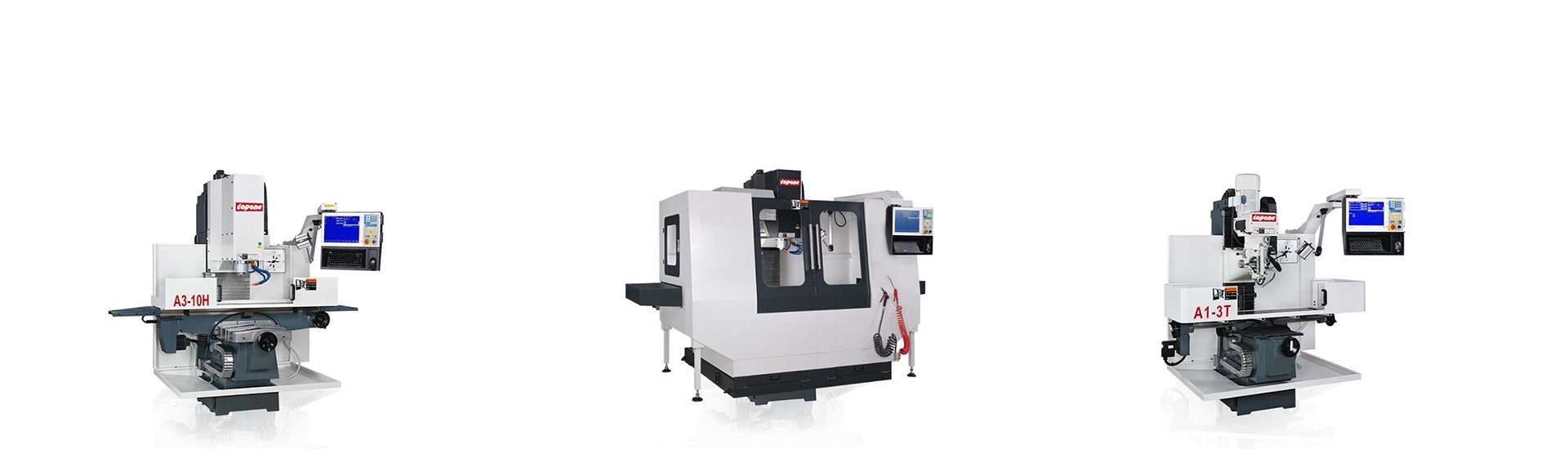

CNC bed mill that can handle anything, whether it’s light finishing or heavy cutting We offer a range of bed mills, from the compact A1-3T to the heavy-hitting A3-10H.

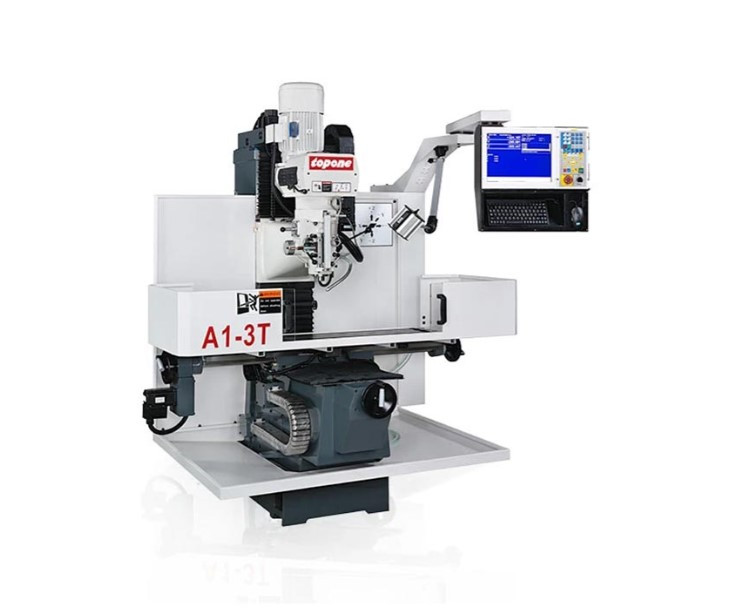

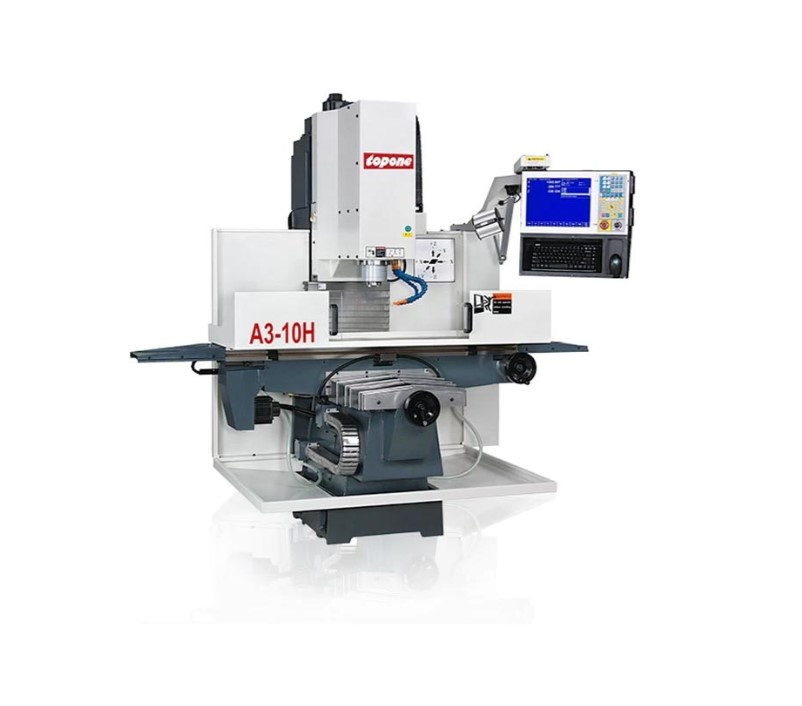

Each machine is designed to give you the best results with power and precision. The  A1-3T comes with a travel size of 28.74” (X), 15.74” (Y), and 19.68” (Z)great for detailed work where control matters. If you’re working with bigger components, the A3-10H steps it up with a roomier 39.9” (X), 19.9” (Y), and 19.6” (Z) travel range, giving you plenty of space to move.

Power-wise, these machines are having heavy performance. The A1-3T runs on a sturdy 3HP motor (2.2 kW), while the A3-10H packs a 10HP punch, more than capable of tackling serious material removal. And with spindle speeds ranging from 4,200 rpm on the A1-3T (R8/NT30 taper) to 8,000 rpm on the A3-10H (CAT40/BT40 taper), you’ve got flexibility to match your material and your methods.

What Makes These Bed Mills Stand Out?

• Precision That Lasts: The guideways are not just hardened, they’re also coated with Turcite-B, which reduces friction and keeps movement smooth over time. That means better accuracy, longer life, and less wear and tear.
• Tough from the Core: Each machine is built around an FC30 Meehanite cast frame strong, stable, and designed to handle high workloads without flex or vibration.
• Rock-Steady Movement: Thanks to dovetail ways on all three axes (X, Y, Z), you get consistent, stable motion even during aggressive cuts.
• Low Maintenance, High Output: An automatic lubrication system keeps everything running smoothly without constant attention, and a built-in coolant tank helps maintain optimal cutting temperatures while reducing thermal distortion.

These machines are made to keep up with your pace, whether you're doing delicate part shaping or tearing through tough materials. They’re accurate when you need finesse, and powerful when it’s time to push hard. Plus, they’re built to last and easy to maintain.

 So whether you're running a high-volume production line or a custom workshop, these CNC bed mills will keep your work moving forward with less hassle and more results.
