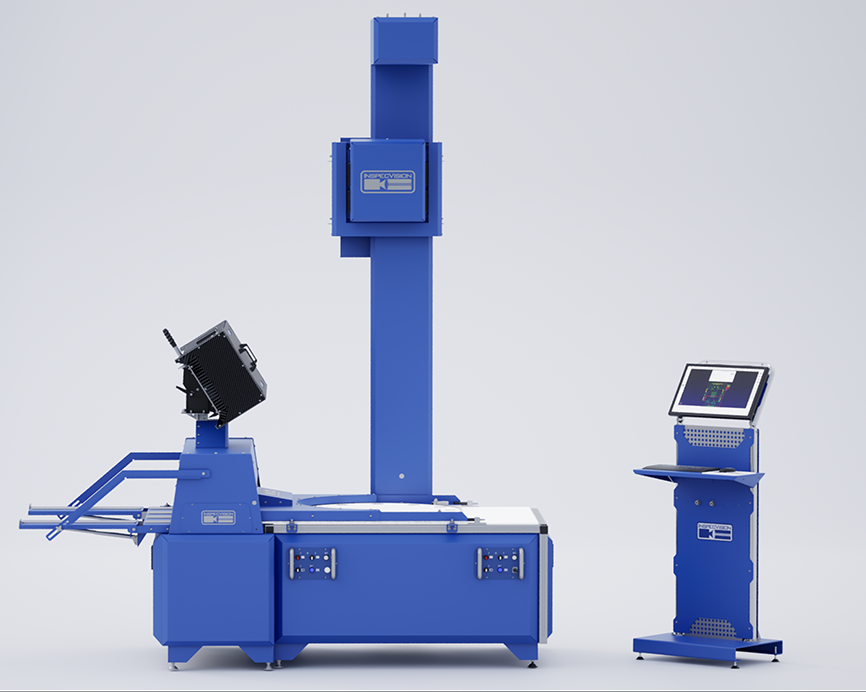

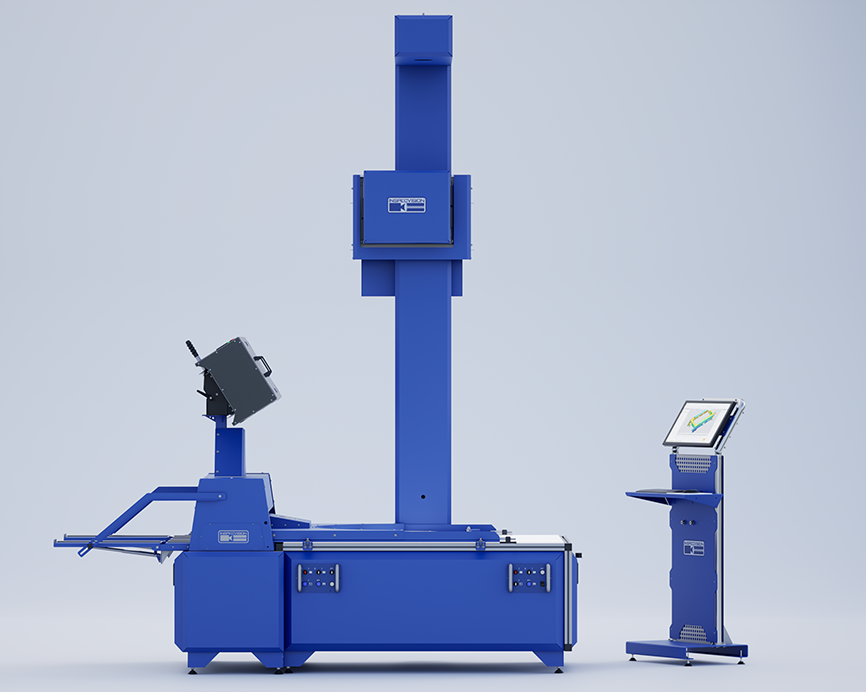

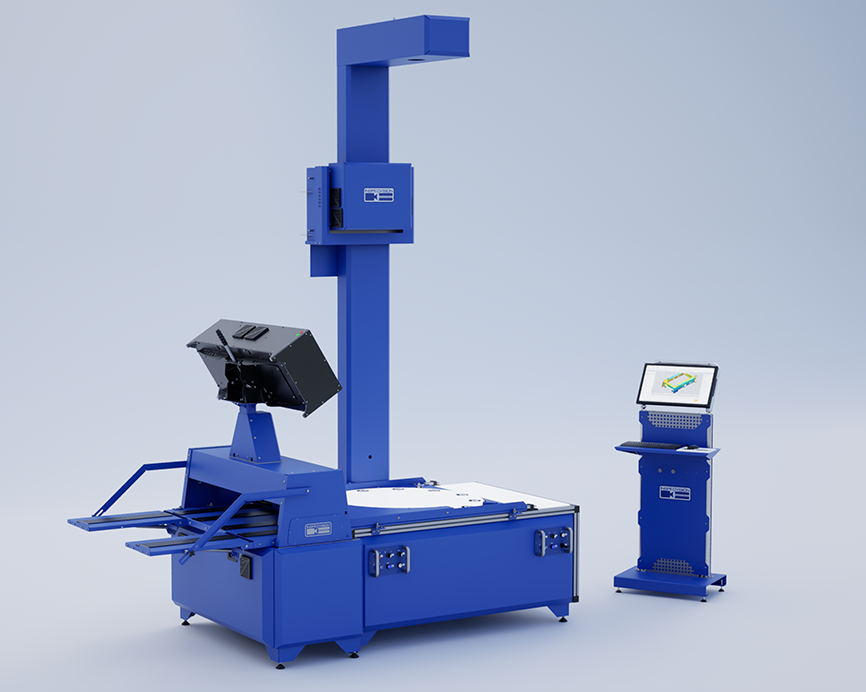

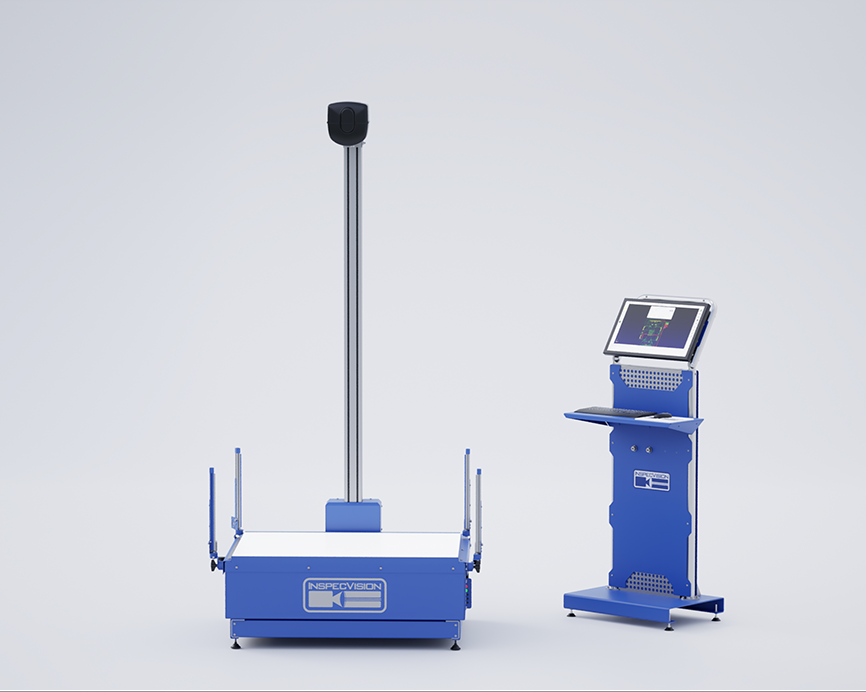

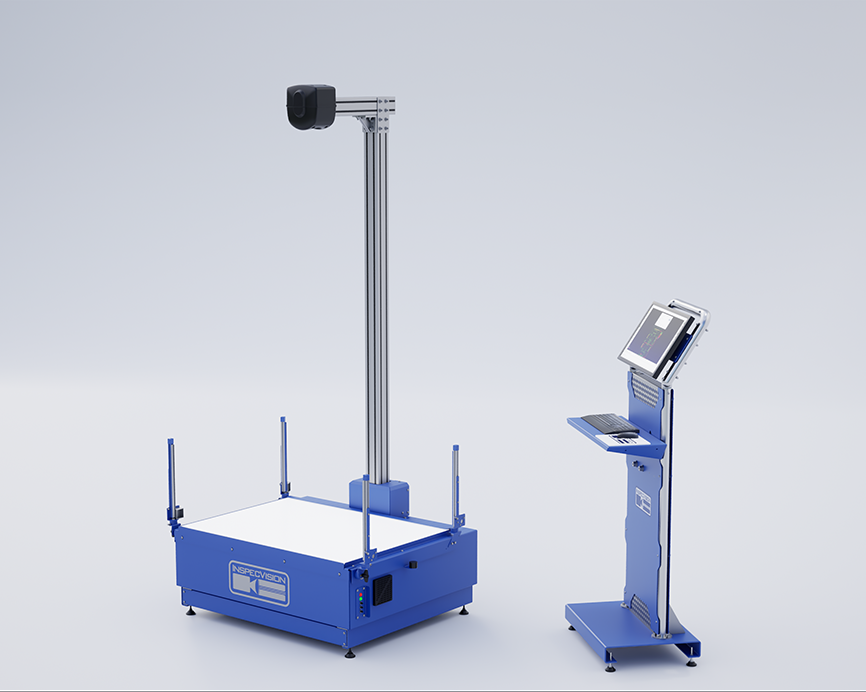

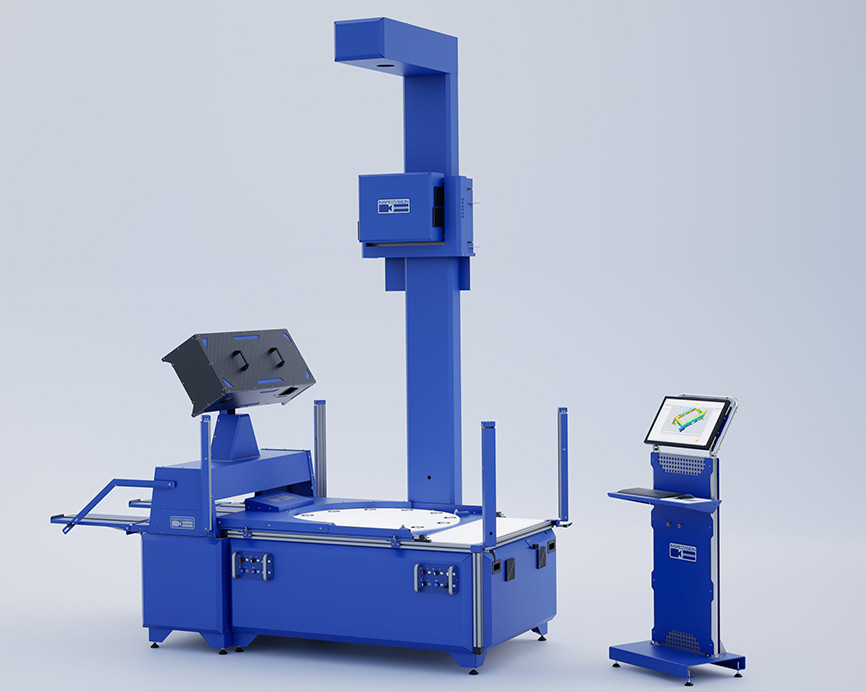

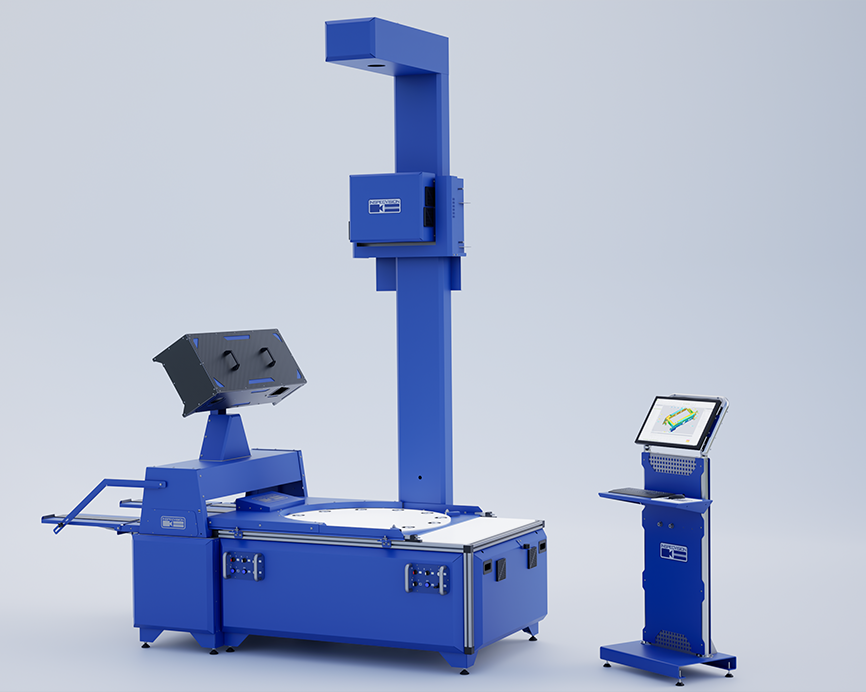

P70_AIO_.0000 P70_AIO_.0005 P70_AIO_.0008 P110_FullSans_AIO_.0008 P150_VAR_C.0000 P150_VAR_C.0005 P150_VAR_C.0014 P150Final_Review.0000 P150Final_Review.0005

Precision Inspection Machines For Industrial Applications

Programmable / CNC Machines

By: INSPEC VISION

IrelandIreland

Express Interest
Product Highlights

2D & 3D Industrial Scanning MachinesEstablished in Northern Ireland in 2003, InspecVision develop, manufacture and sell a range of 2D and 3D measurement systems for industrial applications.INSPECVISION provides a high-speed, automated solution for measuring and identifying the deviations in the product dimensions, eliminating the need for traditional methods of inspection such as callipers.INSPECVISION’s product range includes the Planar 2D, Opti-Scan 3D and the Accuity. Each product i...

2D & 3D Industrial Scanning Machines

Established in Northern Ireland in 2003, InspecVision develop, manufacture and sell a range of 2D and 3D measurement systems for industrial applications.

INSPECVISION provides a high-speed, automated solution for measuring and identifying the deviations in the product dimensions, eliminating the need for traditional methods of inspection such as callipers.

INSPECVISION’s product range includes the Planar 2D, Opti-Scan 3D and the Accuity. Each product is available in various sizes and specifications.

The company was founded by Dr. Jan Antonis following his PhD in computer vision systems at Queens University Belfast. There was a gap in the market for a device which could improve production efficiency and quality control.  The Planar 2D was developed and InspecVision 2D & 3D inspection systems are now sold in over 30 countries worldwide.

INSPECVISION was honoured with prestigious Queen’s Award for Enterprise in INTERNATIONAL TRADE in April 2021 for its excellent performance & won a Chartered Institute of Marketing (CIM) Ireland award in 2018.

InspecVision Inspection Machines Model Range:

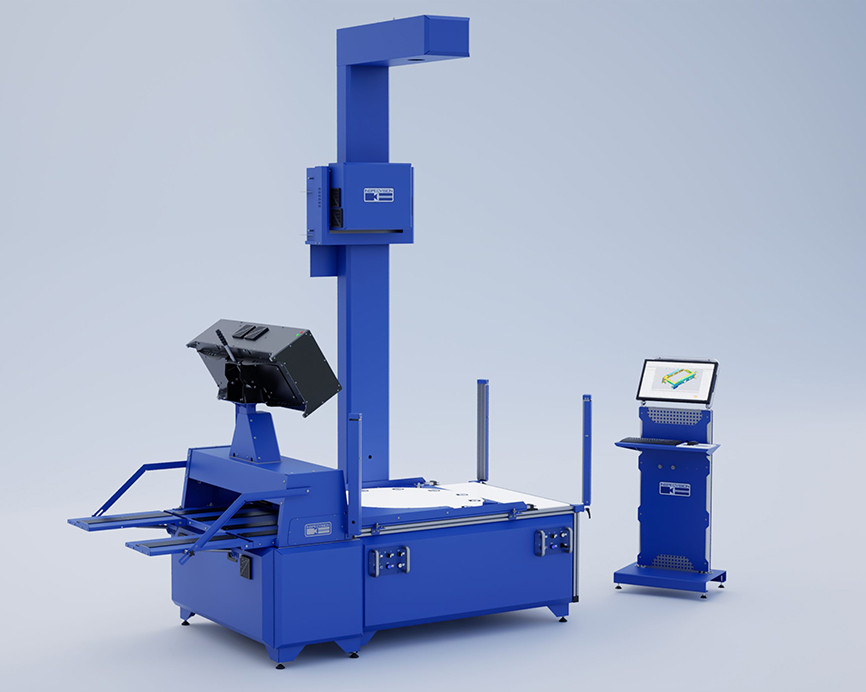

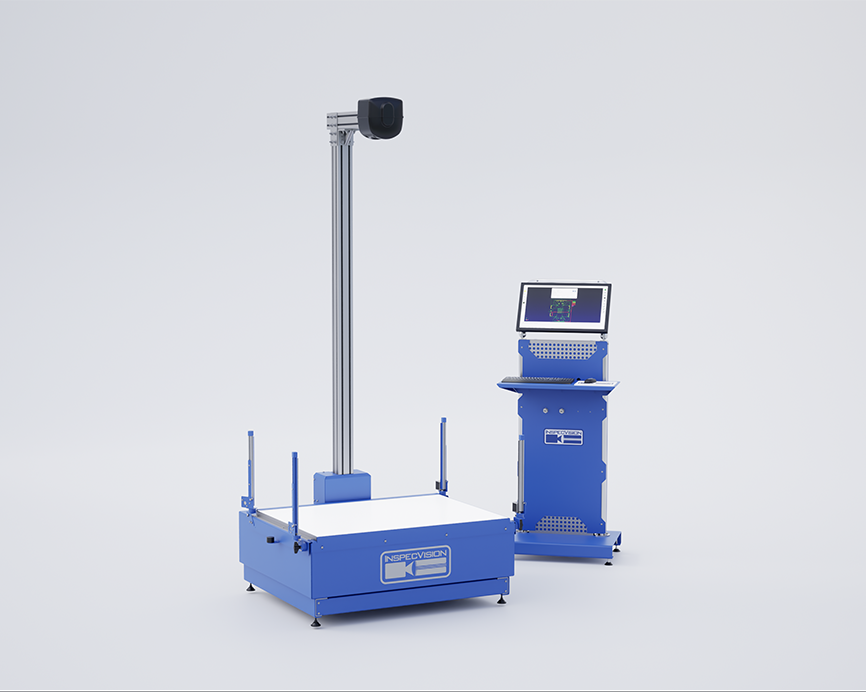

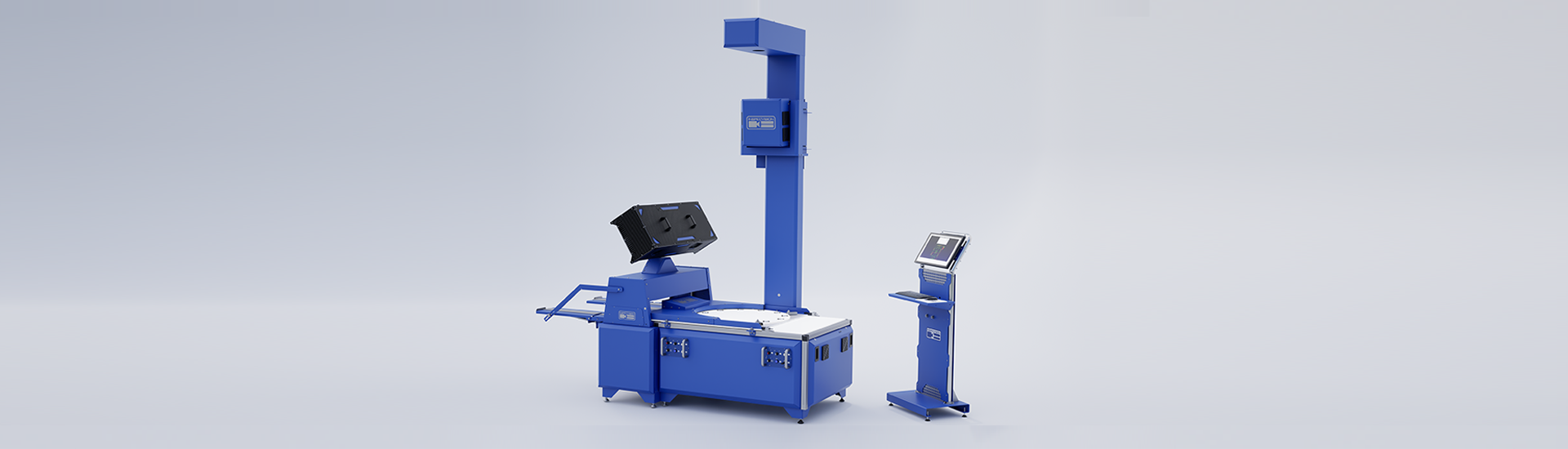

Planar 2D: Planar is an automated system for inspection and reverse engineering and is the world’s fastest 2D measurement machine.

Typcial customers include sheet metal fabricators using X,Y, CNC, Laser, Plasma and water jet cutting who supply to industries such as Automotive, Aerospace, Electronics & Communications. Planar can be upgraded with a range of accessories and options including the SurfScan 2.5D & Opti-Scan 3D.

The range varies in size from 500mm to 3000mm with accuracies of 12 -100 microns. Machines are low in maintenance and require and minimal operator training.

Highlights: High Speed Integrated 2D & 3D measurement systems for inspection & reverse engineering.

OPTI-SCAN3D: The world’s only 3D Inspection system which can measure surfaces and edges in 3D.

OPTI-SCAN 3D can be used as a stand-alone system, or it can be added to existing Planar systems transforming it to a complete 2D & 3D measurement system.

OPTI SCAN 3D is specialist in edge measurement. Large objects can be scanned by attaching repositioning markers to the part or to an area.

Highlights: 3D White light scanning system,3D Inspection & Reverse Engineering.

Main Features:

- Available in 3 different models with attachments.

- Single-click automated inspection.

- Edge measurements.

Accuity: Accuity is the most automated optical gauging systems on the market. It can scan in both 2D and 3D and has accuracy of 6 Microns and a field of view up to 119mm wide.

Set up and inspection time is approx 4 seconds for a new part.

Highlights: High speed Automated 2D & 3D Optical Gauging, single click setup, automated reports and traceable results

Applications
event

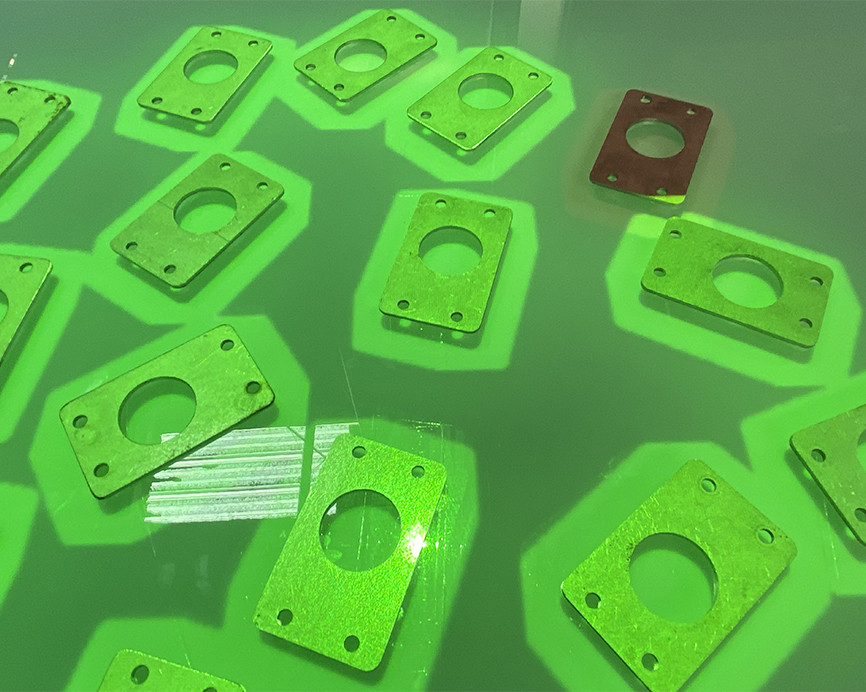

AR - 2D & 3D Industrial Scanning Machines

event

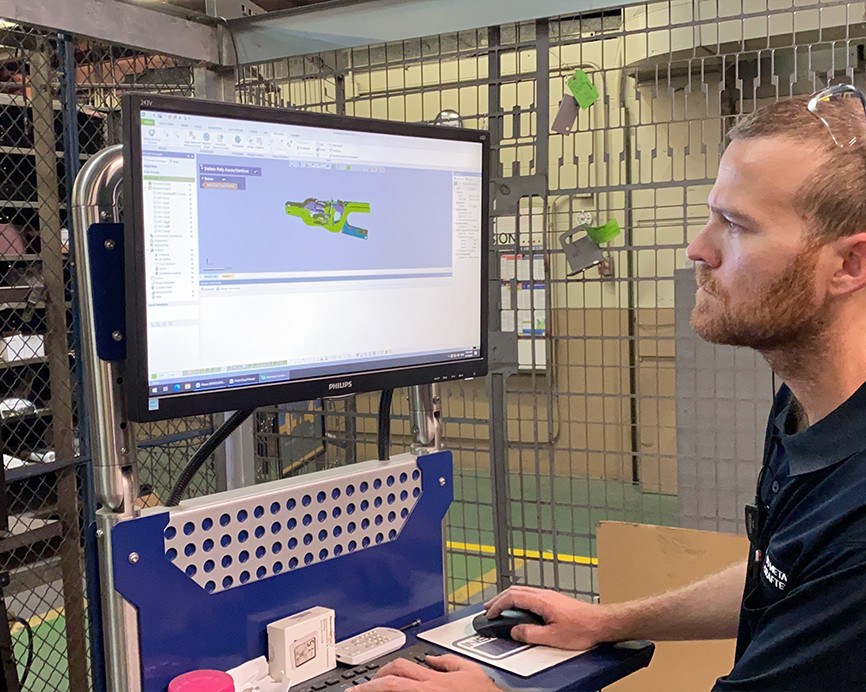

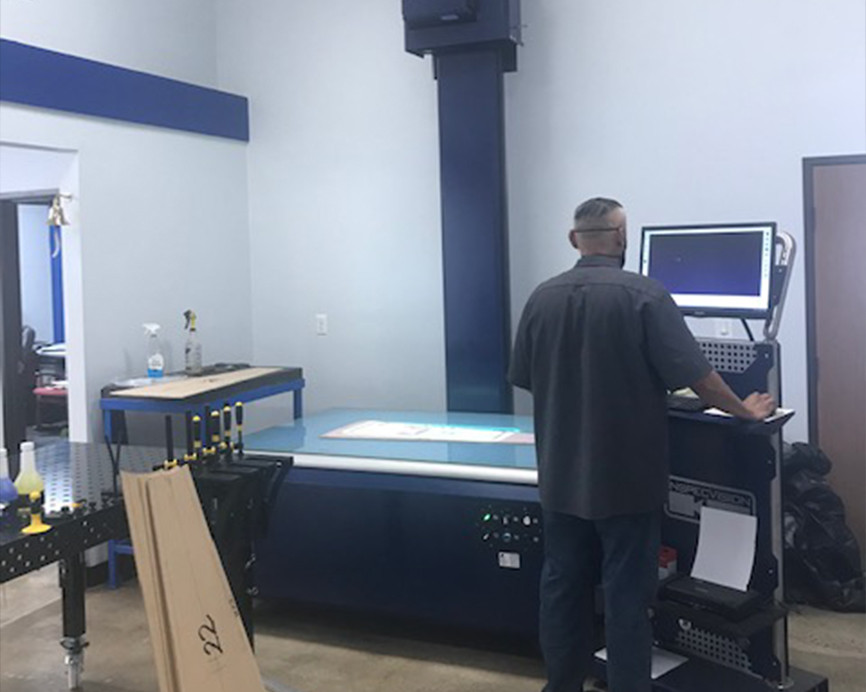

Employee checking report -2D & 3D Industrial Scanning Machines

event

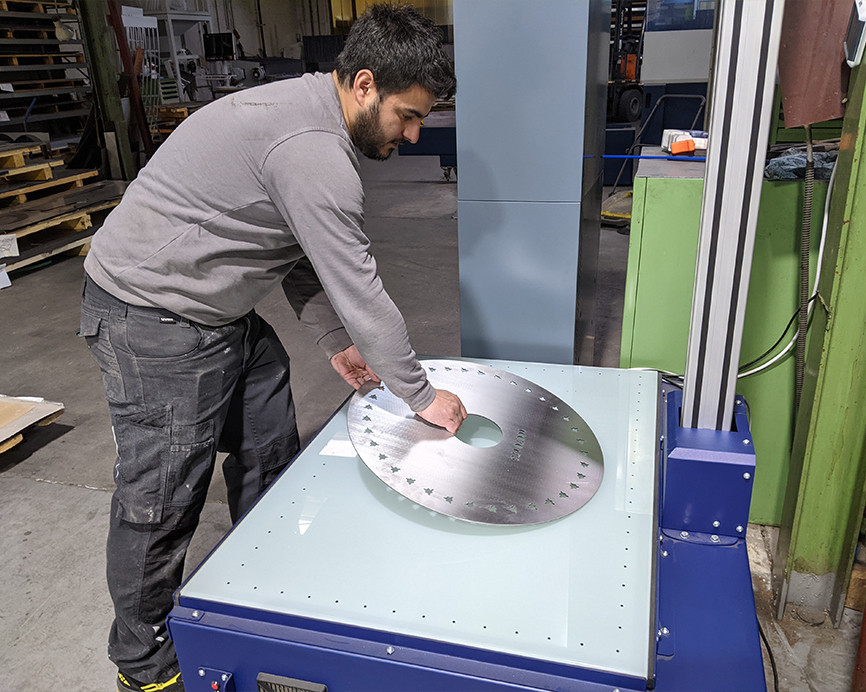

Employee placing disc on Planar 1 - 2D & 3D Industrial Scanning Machines

event

2D & 3D Industrial Scanning Machines

event

2D & 3D Industrial Scanning Machines

event

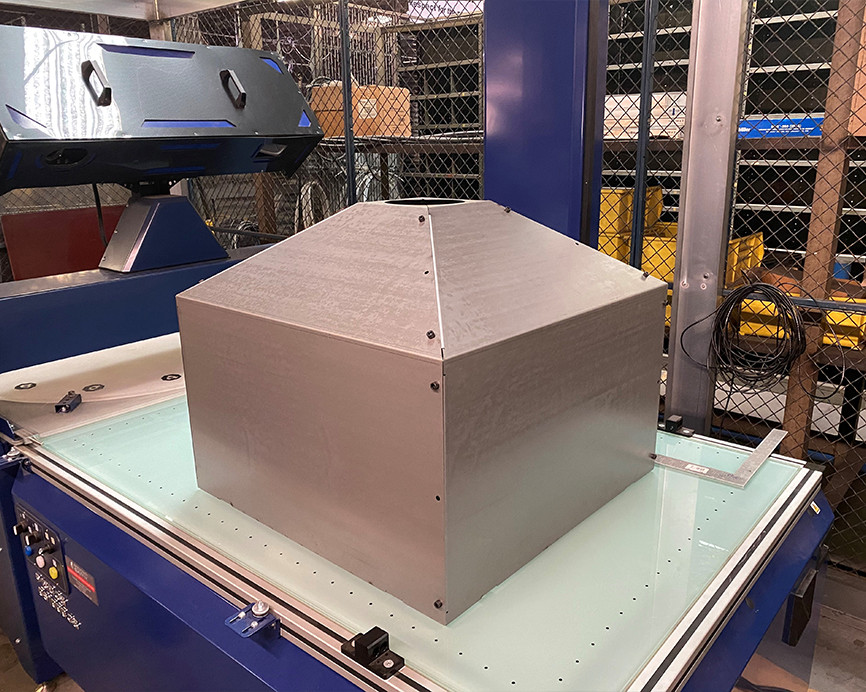

Part check - 2D & 3D Industrial Scanning Machines
